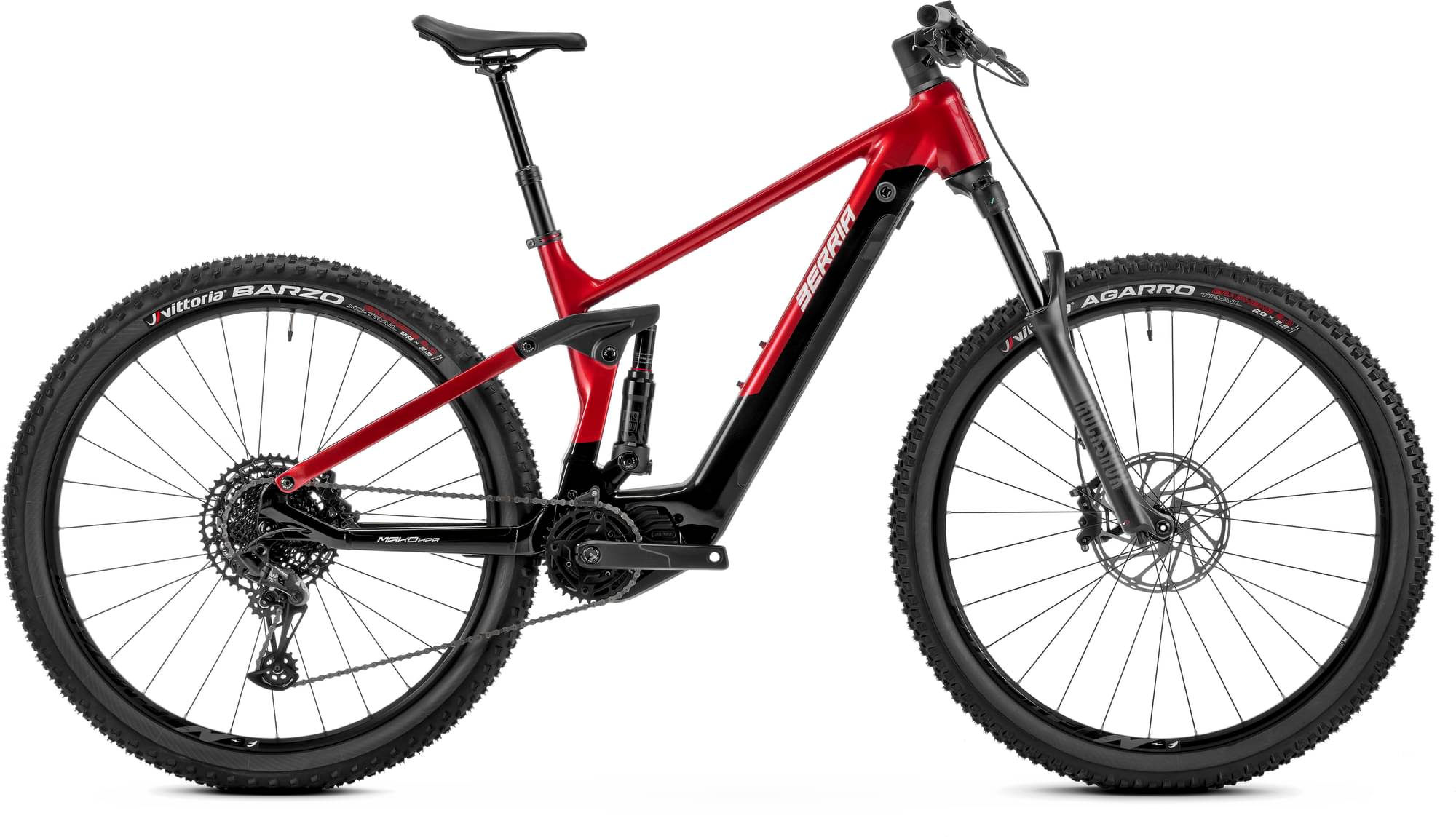

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 148mm -
Fork RockShox 35 Gold RL
-
Groupset NX Eagle -
Suspension Full -
Motor Bafang 250W 60Nm mid-drive -
Battery PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mako Hybrid HPR, Sport or Touring adjustable Geometry BGC with Flip Chip System, Kinematic SPORT E-mtb 148mm, filed and polished Aluminum tubes 3BS 6061 Hydroformed and parts with PCP Precision Casting Process Technology, Full internal cable system ICS2, Headset integrated OH2S 1-1.8" - 1-1.8", Post mounted system PMS brake, 29x2.60 maximun tyre, Thru axle Boost 12x148mm, UDH standar, weight 3100g
Suspension Fork
Rock Shox35 GOLD RL, Motion Control, 15x110mm Maxle Stealth, Tapered steerer, Rake 44mm, 35mm straight wall STEEL Fast Black, weight 2377g, 150mm travel
Rear Shock
Rock Shox Deluxe SELECT R BERRIA MAKO HYBRID Trail Custom, Debon Air, Trunion 205X57,5mm, 148mm travel
Drivetrain
Rear Derailleur
SRAM NX Eagle, 12 Speed, weight 339g
Cassette
SRAM XG1210, 11-50T, weight 730g
Crank
Bafang, aluminum, 34T, 165-170 mm
Chain
SRAM SX Eagle CN-EAGL-SX-A1
Wheels
Rims
FULCRUM E-METAL 700, Alloy, TLR, 30mm internal width, max. weight 230kg, weight 2470g
Tires
FRONT Vittoria Agarro 2.6"X 29", Tubeless ready, GRAPHENE 2.0, 120 TPI, weight 970g / REAR Vittoria Barzo 2.6"X 29", Tubeless ready, GRAPHENE 2.0, 120 TPI, weight 820g
Brakes
Brakes
SRAM DB8, 4 pistons, mineral oil, Disc 200/F 180/R
Brake Levers
SRAM SX Eagle Trigger 12V, X-actuation, weight 133g
Cockpit
Handlebar
Avanforce AF3 TRAIL, Aluminum 6061, 31,8mm, wide 780mm, weight 340g
Seat
Saddle
ESSAX ERA, Steel rod, wide 145mm, length 250mm, weight 280g
Seatpost
TRANZX JD-YSPJL Aluminum 7075-T6, 0° offset, 31,6 x 421mm, weight 590g, 125mm travel
Motor & Battery
Motor
BAFANG M-SERIES 510, Nominal performances 250W - 60Nm, Peak performances 500W - 95 Nm, Q factor 177mm, weight 3370g
Battery
PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g
Charger
Porta Power charger 220-240V 3A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.27 mm |
| Front Center | 766 mm | 798 mm | 830 mm |
| Rake | 42 mm | 41 mm | 42 mm |
| Trail | 114 mm | 115 mm | 114 mm |
| Stack | 624 mm | 628 mm | 632 mm |
| Reach | 440 mm | 470 mm | 499 mm |
| Top Tube Length | 564 mm | 596 mm | 627 mm |
| Seat Tube Angle | 78.3 ° | 77.8 ° | 77.4 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.3 ° | 65.3 ° |
| Head Tube Length | 110 mm | 115 mm | 120 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1207 mm | 1239 mm | 1271 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
MAKO HYBRID HP SPORT is a Berria E Mako model. 36 e-bikes variations carry this model name so far. You can easily view all of the Berria E Mako e-bikes models from 2024, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Berria MAKO HYBRID HP SPORT 2024 e-bike is equipped with the RockShox 35 Gold RL fork, and has 150mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
The fork on this e-bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the e-bike.
Rear Shock
Berria MAKO HYBRID HP SPORT e-bike has the Rock Shox Deluxe SELECT R BERRIA MAKO HYBRID Trail Custom model installed, and has a travel of 148mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on MAKO HYBRID HP SPORT are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Berria MAKO HYBRID HP SPORT has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Berria MAKO HYBRID HP SPORT e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Berria MAKO HYBRID HP SPORT includes a dropper post. Therefore, climbing or descending will be a breeze.
