Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 110mm -
Travel Rear 105mm -
Fork Fox Factory Float 34
-
Groupset XX SL Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mako 3, XCO Racing Geometry BGC, kinematic XCO WC 105mm, Full carbon HMR2X, Triple moncoque, Resin Matrix Nanotech CNT, bearings full ball ISB VMAX, BB92 botton bracket, Active Stay, Asymmetric, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Post Mounted brake PMS, 29"x2.35 maximun tyre, BOOST Thru axle 148x12, Fox Live Valve ready, weight 1810g
Suspension Fork
FOX 34 SC Factory, Kashima Coat, FIT4 3P Lockout remote 3 Position, Float Evol Air, Reb. Adj. 15x110mm Kabolt axle, 44mm offset, Tapered steerer, weight 1623g, 110mm travel
Rear Shock
FOX Factory FLOAT DPS 3P Trunnion 165x45, Kashima Coat, Float Evol Air 3P Lockout remote 3 Position, weight 221g, 113mm travel
Drivetrain
Rear Derailleur
SRAM XX SL AXS T-TYPE, 12 Speed, weight 440g
Cassette
SRAM XG1299 Eagle T-TYPE, 10-52T, weight 372g
Crank
SRAM XX SL Q168, DUB, Direct mount 34T, T-TYPE 170-175mm, chain line 55mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM XX SL T-TYPE Flattop, weight 240g
Wheels
Rims
FULCRUM RED ZONE 99, alloy, 23 mm internal wide 1875g - 28 (front) 28 (rear), Straight Pull Spokes
Tires
Vittoria Barzo 2.25"X 29", Tubeless Ready, GRAPHENE 2.0 120 TPI, weight 660g
Brakes
Brakes
SRAM LEVEL BRONZE STEALTH, tool free reach adjust, 2 pistons, 180/F and 160/R
Brake Levers
SRAM EC AXS POD ULTIMATE Controller
Cockpit
Handlebar
AGUILA, Integrated handlebar carbon Concept, wide 760mm, Backsweep 7°, Upsweep 5°, Rise 0mm, Stem lenght 60mm/75mm/95mm, weight 330gr
Seat
Saddle
Fizik TERRA RIDON, Steel rails, width 255mm, width 145mm, weight 262g
Seatpost
TIBIA Flex Seat post, UD Carbon, 0 offset, 31,6 x 420mm, weight 220g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.36 mm | 1.291 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 681 mm | 714 mm | 748 mm |
| Rake | 53 mm | 52 mm | 53 mm |
| Trail | 86 mm | 87 mm | 86 mm |
| Stack | 595 mm | 605 mm | 613 mm |
| Reach | 415 mm | 445 mm | 475 mm |
| Top Tube Length | 577 mm | 615 mm | 652 mm |
| Seat Tube Angle | 74.7 ° | 74.3 ° | 74 ° |
| Seat Tube Length | 400 mm | 438 mm | 484 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 69.2 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1114 mm | 1147 mm | 1181 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

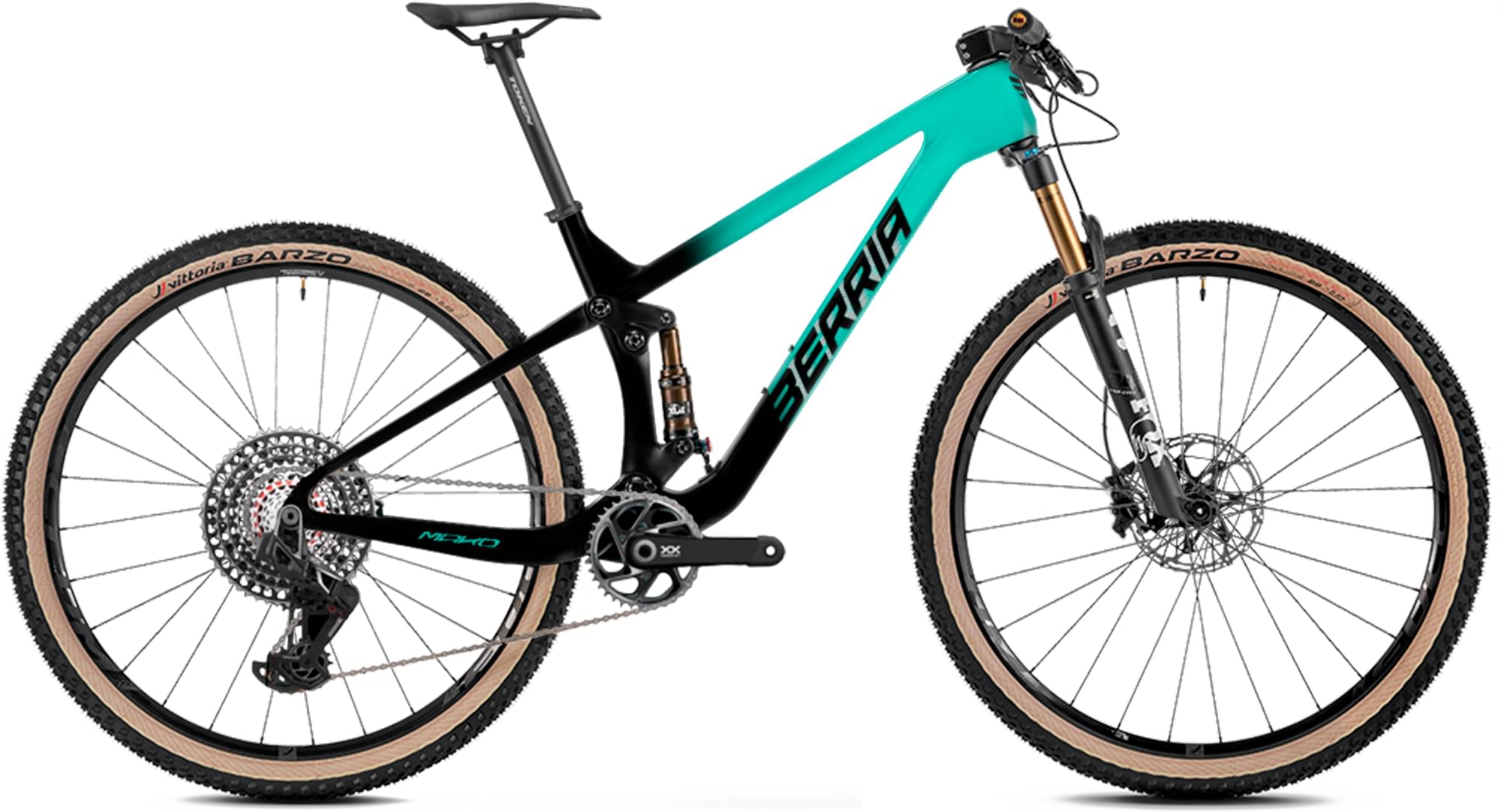

MAKo LTD AV24 belongs to the Berria Mako model. There are 64 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
This bike has the Fox Factory Float 34 fork installed. The fork’s travel is 110mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the FOX Factory FLOAT DPS 3P Trunnion 165×45 model, with a travel of 105mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the MAKo LTD AV24 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Berria MAKo LTD AV24 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MAKo LTD AV24 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
