Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 105mm -
Fork RockShox SID
-
Groupset X01 Eagle AXS, X0 -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mako 3, XCO Racing Geometry BGC, kinematic XCO WC 105mm, Full carbon HMR2X, Triple moncoque, Resin Matrix Nanotech CNT, bearings full ball ISB VMAX, BB92 botton bracket, Active Stay, Asymmetric, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Post Mounted brake PMS, 29"x2.35 maximun tyre, BOOST Thru axle 148x12, Fox Live Valve ready, weight 1810g
Suspension Fork
Rock Shox SID SL Base, Damper Rush RL, 15x110mm Maxle Stealth, Rake 44mm, Tapered steerer, 32 mm tapered aluminum Fast Black, 2 Position Lockout remote, weight 1490g, 100mm travel
Rear Shock
Rock Shox SIDLuxe ULTIMATE BERRIA MAKO 3 WC XCO Tuning, Debon Air, Lockout remote 2 POS adjustement, Trunion 165X45mm, weight 227g, 105mm travel
Drivetrain

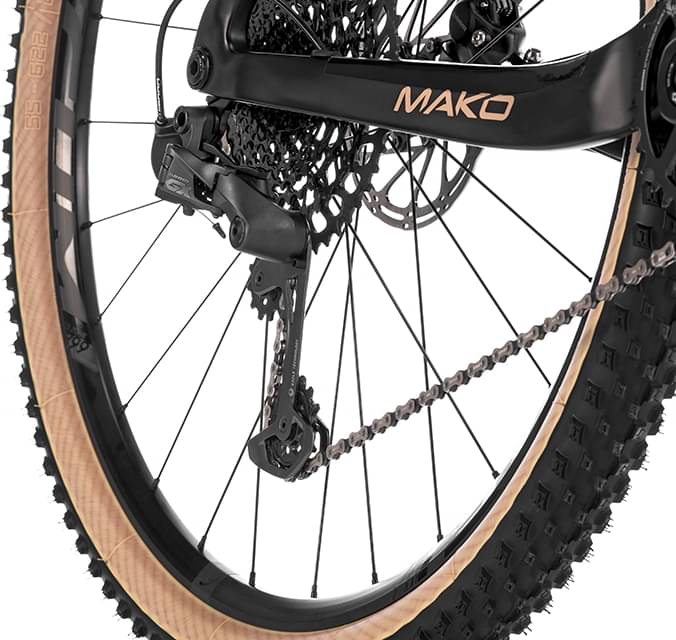

Rear Derailleur
SRAM X0 AXS T-TYPE, 12 Speed
Cassette
SRAM XG1295 Eagle T-TYPE, 10-52T
Crank
SRAM X0 Q174, DUB WIDE, 34T-TYPE 170-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM X0 T-TYPE Flattop, 256g
Wheels
Rims
FULCRUM RED ZONE 99, alloy, 23 mm internal wide 1875g - 28 (front) 28 (rear), Straight Pull Spokes
Tires
Vittoria Barzo 2.25"X 29", Tubeless Ready, GRAPHENE 2.0 120 TPI, weight 660g
Brakes
Brakes
SRAM LEVEL TLM Disc 180/F 160/R
Brake Levers
SRAM EC AXS POD Controller
Cockpit
Handlebar
Avanforce UD carbon, 31,8mm, wide 740mm, Backsweep 5°, Upsweep 3°
Seat
Seatpost
Avanforce 0 offset, 31,6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.36 mm | 1.291 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 681 mm | 714 mm | 748 mm |
| Rake | 54 mm | 53 mm | 53 mm |
| Trail | 84 mm | 86 mm | 86 mm |
| Stack | 595 mm | 605 mm | 613 mm |
| Reach | 415 mm | 445 mm | 475 mm |
| Top Tube Length | 577 mm | 615 mm | 652 mm |
| Seat Tube Angle | 74.7 ° | 74.3 ° | 74 ° |
| Seat Tube Length | 400 mm | 438 mm | 484 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 69.2 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1114 mm | 1147 mm | 1181 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
MAKO RACER AV 24, MAKo 7 is a Berria Mako model. 64 bikes variations carry this model name so far. You can easily view all of the Berria Mako bikes models from 2022, here.
Model range prices
Berria MAKO 4 2022 is the cheapest bike model and costs 3503$. Berria MAKO BR LTD 2022 is the most expensive one and costs 9343$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
MAKO RACER AV 24, MAKo 7 components
Fork
The RockShox SID is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
As for the rear shock, this bike has the Rock Shox SIDLuxe ULTIMATE BERRIA MAKO 3 WC XCO Tuning model, with a travel of 105mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the MAKO RACER AV 24, MAKo 7 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Berria MAKO RACER AV 24, MAKo 7 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
