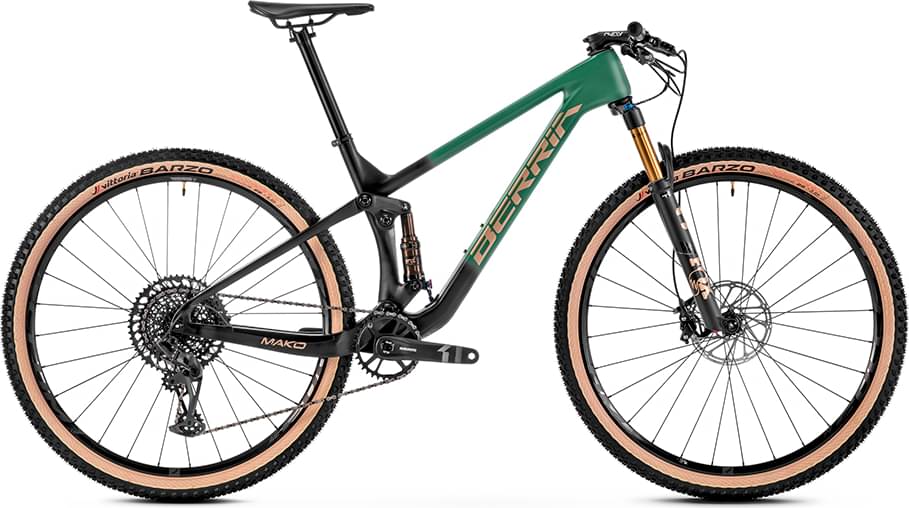

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 105mm -
Fork RockShox SID
-
Groupset X0 Eagle Transmission -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

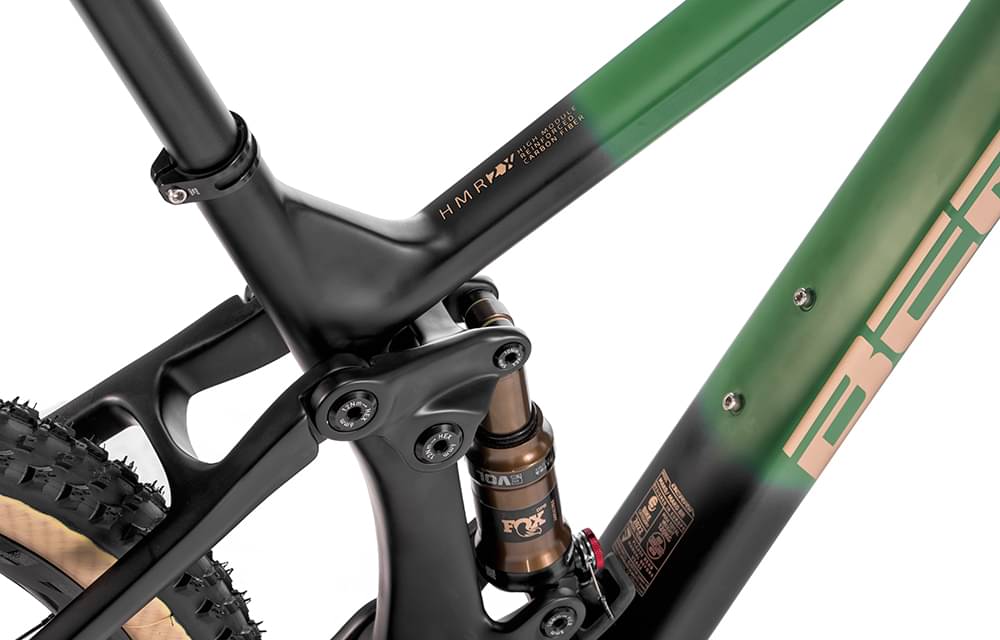

Mako 3, XCO Racing Geometry BGC, kinematic XCO WC 105mm, Full carbon HMR2X, Triple moncoque, Resin Matrix Nanotech CNT, bearings full ball ISB VMAX, BB92 botton bracket, Active Stay, Asymmetric, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2", Post Mounted brake PMS, 29"x2.35 maximun tyre, BOOST Thru axle 148x12, Fox Live Valve ready, weight 1810g
Suspension Fork

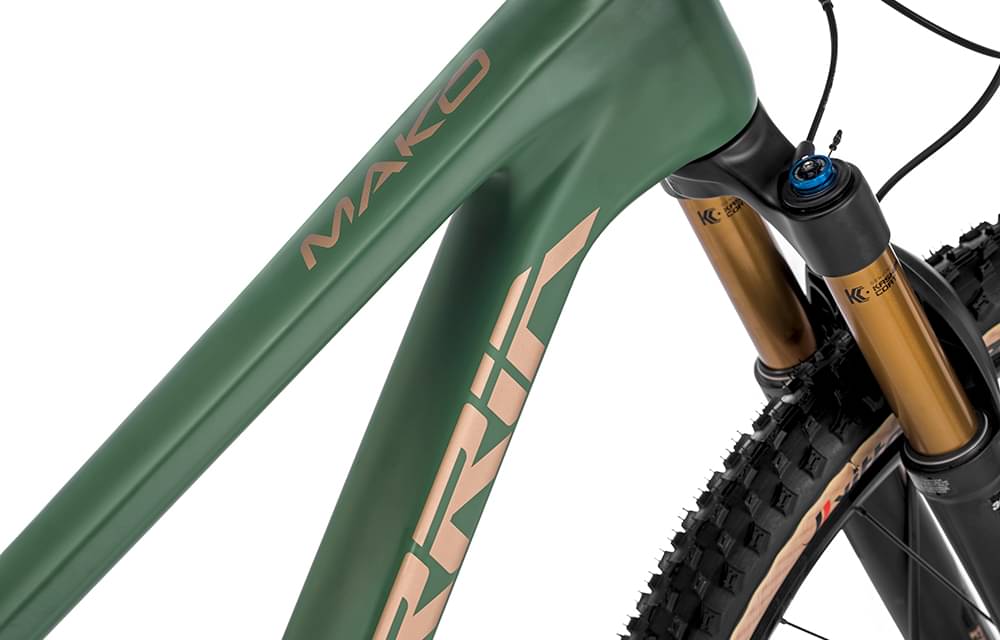

Rock Shox SID SL Base, Damper Rush RL, 15x110mm Maxle Stealth, Rake 44mm, Tapered steerer, 32 mm tapered aluminum Fast Black, 2 Position Lockout remote, weight 1490g, 100mm travel

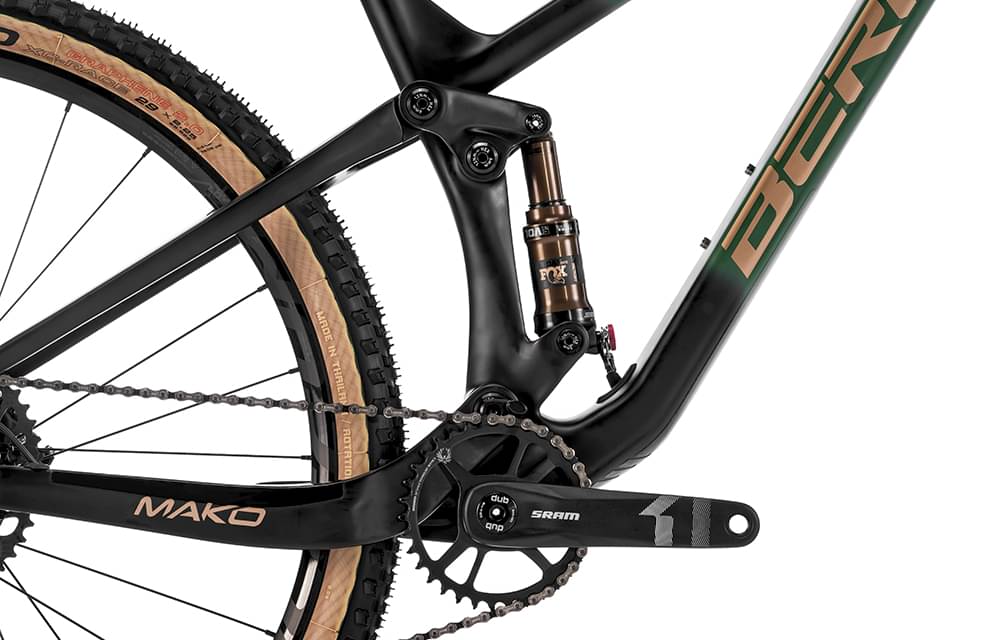

Rear Shock
Rock Shox SIDLuxe ULTIMATE BERRIA MAKO 3 WC XCO Tuning, Debon Air, Lockout remote 2 POS adjustement, Trunion 165X45mm, weight 227g, 105mm travel
Drivetrain

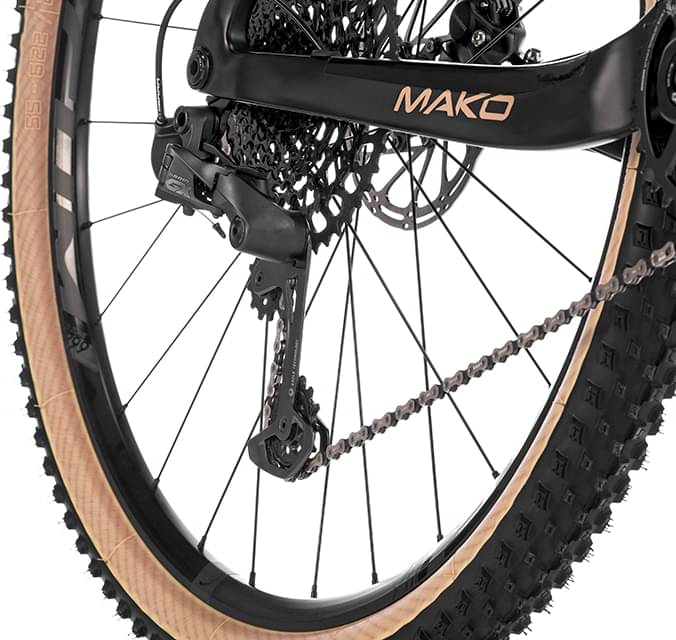

Rear Derailleur
SRAM X0 AXS T-TYPE, 12 Speed
Cassette
SRAM XG1295 Eagle T-TYPE, 10-52T
Crank
SRAM X0 Q174, DUB WIDE, 34T-TYPE 170-175mm
Bottom Bracket
BB86/BB92, press-fit
Chain
SRAM X0 T-TYPE Flattop, 256g
Wheels
Rims
FULCRUM RED ZONE 99, alloy, 23 mm internal wide 1875g - 28 (front) 28 (rear), Straight Pull Spokes
Tires
Vittoria Barzo 2.25"X 29", Tubeless Ready, GRAPHENE 2.0 120 TPI, weight 660g
Brakes
Brakes
SRAM LEVEL TLM Disc 180/F 160/R
Brake Levers
SRAM EC AXS POD Controller
Cockpit
Handlebar
Avanforce UD carbon, 31,8mm, wide 740mm, Backsweep 5°, Upsweep 3°
Seat

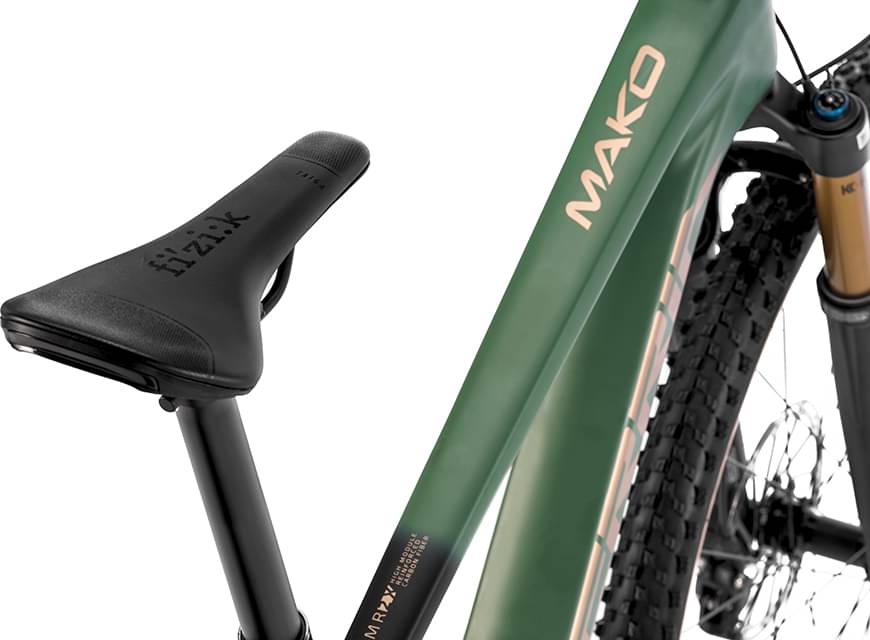

Saddle
FIZIK Tundra VS M7 f202urn
Seatpost
Avanforce 0 offset, 31,6 x 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.36 mm | 1.291 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm |
| Front Center | 681 mm | 714 mm | 748 mm |
| Rake | 54 mm | 53 mm | 53 mm |
| Trail | 84 mm | 86 mm | 86 mm |
| Stack | 595 mm | 605 mm | 613 mm |
| Reach | 415 mm | 445 mm | 475 mm |
| Top Tube Length | 577 mm | 615 mm | 652 mm |
| Seat Tube Angle | 74.7 ° | 74.3 ° | 74 ° |
| Seat Tube Length | 400 mm | 438 mm | 484 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 69.2 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1114 mm | 1147 mm | 1181 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
MAKO RACER AV 24, MAKo 7 belongs to the Berria Mako model. Berria launched 64 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the RockShox SID model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Rear Shock
The shock that’s installed on this bike is Rock Shox SIDLuxe ULTIMATE BERRIA MAKO 3 WC XCO Tuning, with a travel distance of 105mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the MAKO RACER AV 24, MAKo 7 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Berria MAKO RACER AV 24, MAKo 7 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
MAKO RACER AV 24, MAKo 7 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
