Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Praxis -
Suspension Full -
Motor 80Nm mid-drive -
Battery ATOM, integrated -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL
Rear Shock
RockShox Deluxe, DebonAir spring
Drivetrain
Rear Derailleur
Shimano Deore M6100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Praxis, 165mm length
Chain
Shimano Deore M6100, 12-speed
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
BH, MICRO SPLINE driver
Rear Hub
BH, MICRO SPLINE driver
Rims
Alexrims EXR30 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, EXO, TR, 60 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, EXO, TR, 60 TPI, 29" x 2.4"
Brakes
Brakes
Shimano MT420, 4-piston, 203mm rotors
Brake Levers
Shimano MT420
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Riser, alloy, 780mm width
Grips
Ergon GE10
Headset
ACROS AIX-322 OD46
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
KS Rage-i dropper
Motor & Battery
Motor
BH 1E, 36V, 80Nm max torque
Battery
ATOM, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.45 mm | 1.4 mm |
| Stack | 647 mm | 652 mm | 657 mm | 657 mm |
| Reach | 413 mm | 433 mm | 453 mm | 470 mm |
| Top Tube Length | 590 mm | 611 mm | 633 mm | 650 |
| Seat Tube Angle | 74.7 ° | 74.6 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 145 mm | 150 mm | 150 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

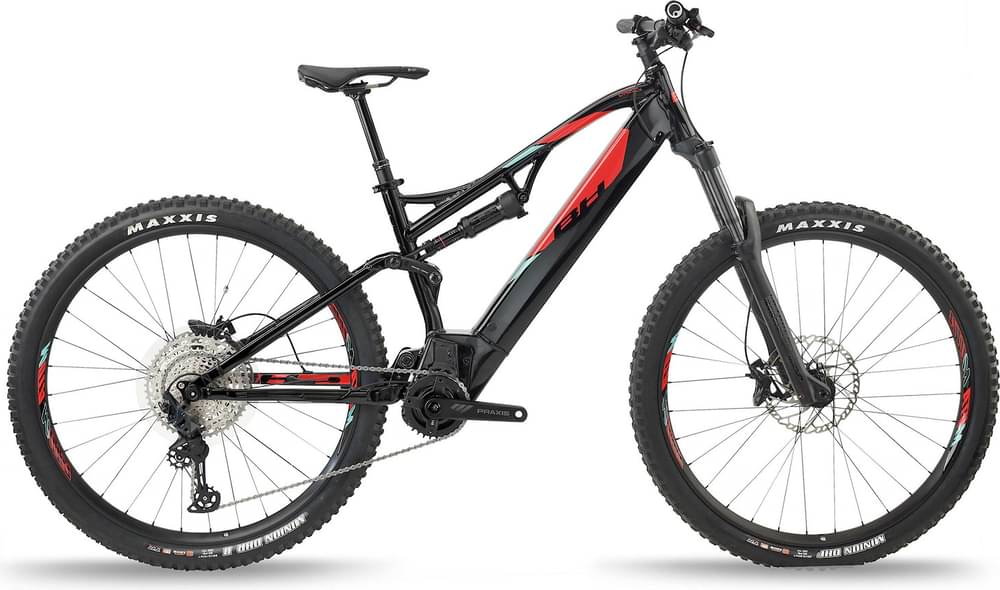

ATOM Lynx 5.5 Pro is a Bh E Atom model. There are 32 e-bikes that carry this model name. Take a sneak peek at all Bh E Atom e-bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
ATOM Lynx 5.5 Pro components
Fork
The ATOM Lynx 5.5 Pro comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe, with a travel distance of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the ATOM Lynx 5.5 Pro e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The ATOM Lynx 5.5 Pro has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
BH ATOM Lynx 5.5 Pro comes with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
