Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset Deore, Praxis -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140 mm Full Suspension Alloy 29" Internal Cable Routing
Suspension Fork
Rock Shox Recon RL 150mm 15QR
Rear Shock
Rock Shox Deluxe Debonair
Drivetrain
Rear Derailleur
Shimano Deore 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alexrims EXR25 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI60 EXO TR 29"X2,5/2,4
Brakes
Brakes
Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 780mm
Grips
Ergon GE10
Headset
Acros AIX-322 OD46
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Kind Shock RAGEI
Motor & Battery
Motor
TS System
Battery
720Wh
Remote
BH X Display Lite
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.51 mm | 1.45 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Stack | 647 mm | 652 mm | 657 mm |
| Reach | 413 mm | 433 mm | 453 mm |
| Top Tube Length | 590 mm | 611 mm | 633 mm |
| Seat Tube Angle | 74.7 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 140 mm | 145 mm | 150 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheelbase | 730 mm | 752 mm | 774 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

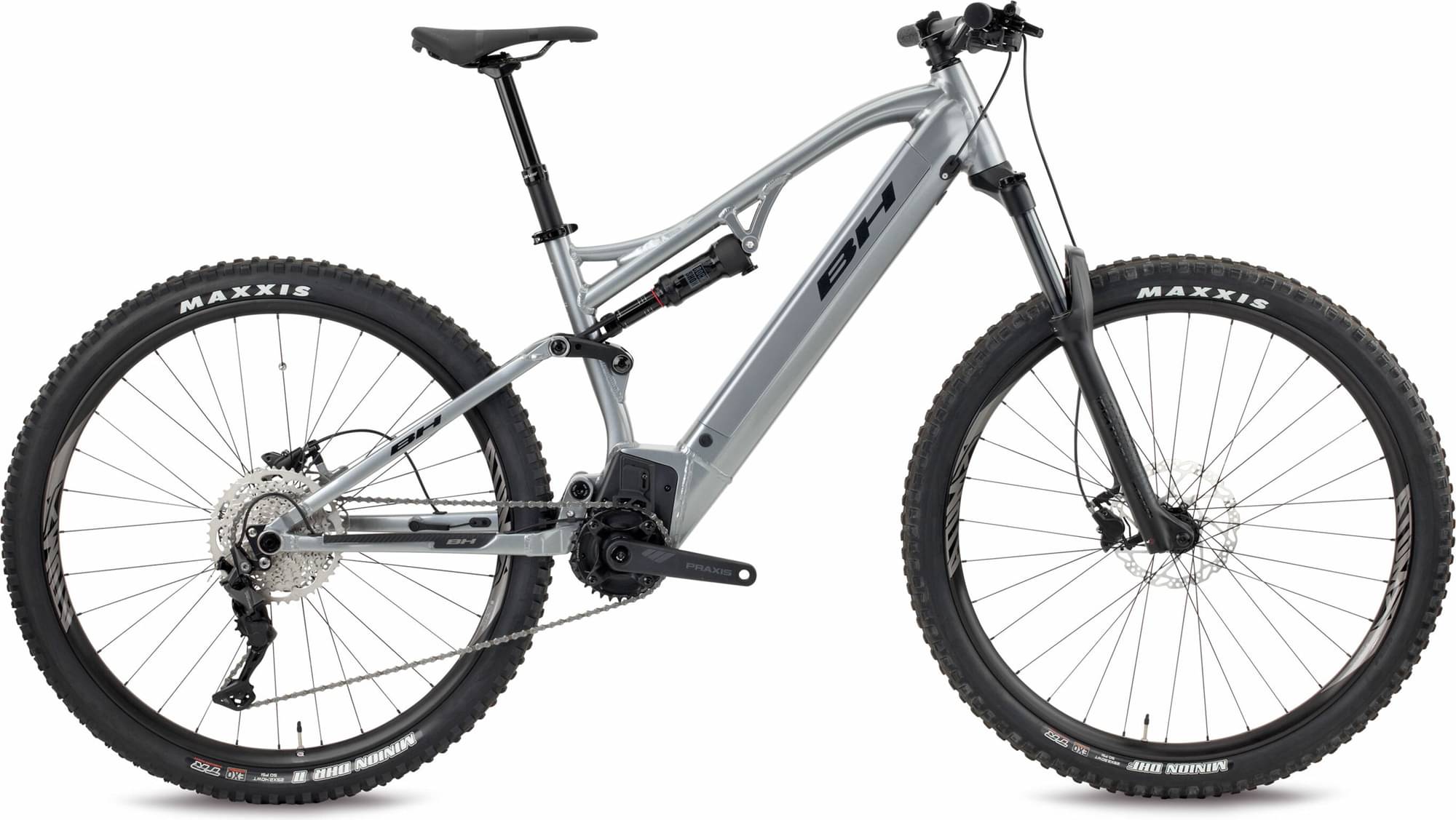

ATOM LYNX 8.2 completes the Bh E Atom model. BH released 32 e-bikes variations of this model so far. You can easily view all of the Bh E Atom e-bikes models from 2022, here.
Model range prices
The most economical model, the BH ATOM JET 2022 has a starting price of 2918$. BH ATOM LYNX 8.2 2022 on the other hand is the most expensive at 5594$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5594$. Comparing this to the average Trail e-bike price, we see that the price is 66.24% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The ATOM LYNX 8.2 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the Rock Shox Deluxe Debonair model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The ATOM LYNX 8.2 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. BH ATOM LYNX 8.2 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
The BH model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
