Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Alloy 28" internal cable routing
Suspension Fork
SR Suntour XCR34 LO 120mm 15QR
Drivetrain

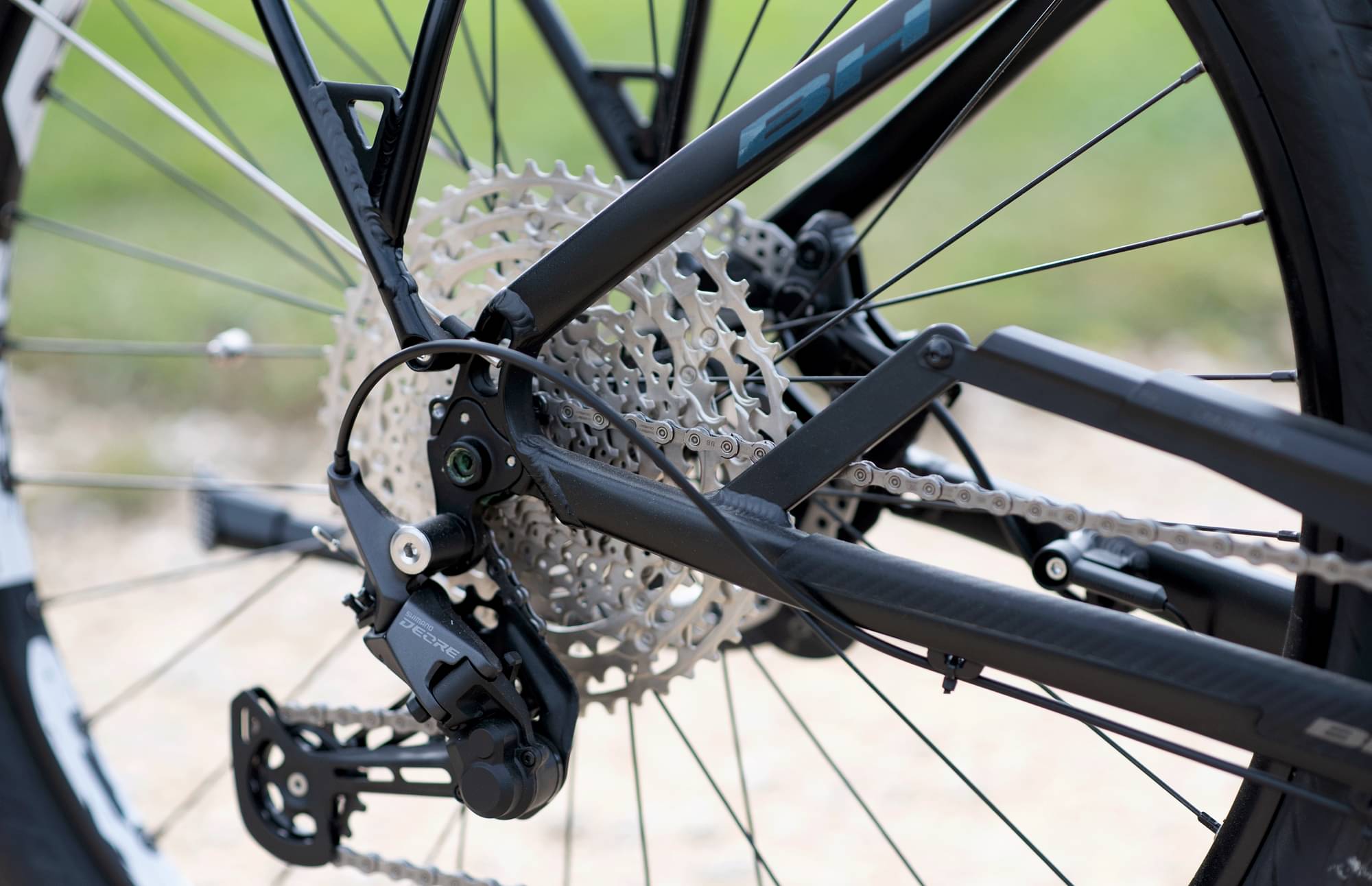

Rear Derailleur
Shimano Deore 11sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (11-51T)
Crank
Shimano 38T-165mm
Chain
Shimano HG60
Pedals
Alloy
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Trucky 30
Spokes
Stainless Steel
Tires
Schwalbe Super Moto-X 27,5"X2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 180mm, Rear: Shimano MT420 4 Piston 180mm
Cockpit
Stem
Ergotec Adjustable
Handlebar
BH MTB Alloy Riser 35 720mm
Grips
Ergon GP10
Headset
Acros AZX-578 BL.
Seat
Saddle
Selle Royal Look In Relax
Seatpost
SR Suntour NCX
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Top Tube Length | 577 mm | 587 mm | 597 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 459 mm | 459 mm | 459 mm |
| Wheelbase | 689 mm | 699 mm | 709 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
ATOMe CROSS PRO is part of the Bh E Atome model. There are 10 e-bikes that carry this model name. Take a sneak peek at all Bh E Atome e-bikes models from 2023, by clicking here.
Model range prices
BH ATOMe DIAMOND WAVE PRO 2023 is the most economical model, with a starting price of 4870$. BH ATOMe SUV PRO-SE 2023 on the other hand costs 6697$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
General Urban e-bikes average price
If you want to purchase a solid General Urban e-bike, it is important to know that the average cost is 2098$. However, you could also get a good General Urban e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5357$. Doing a quick comparison, we notice that ATOMe CROSS PRO price is 155.34% higher than the average cost of a General Urban e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
ATOMe CROSS PRO components

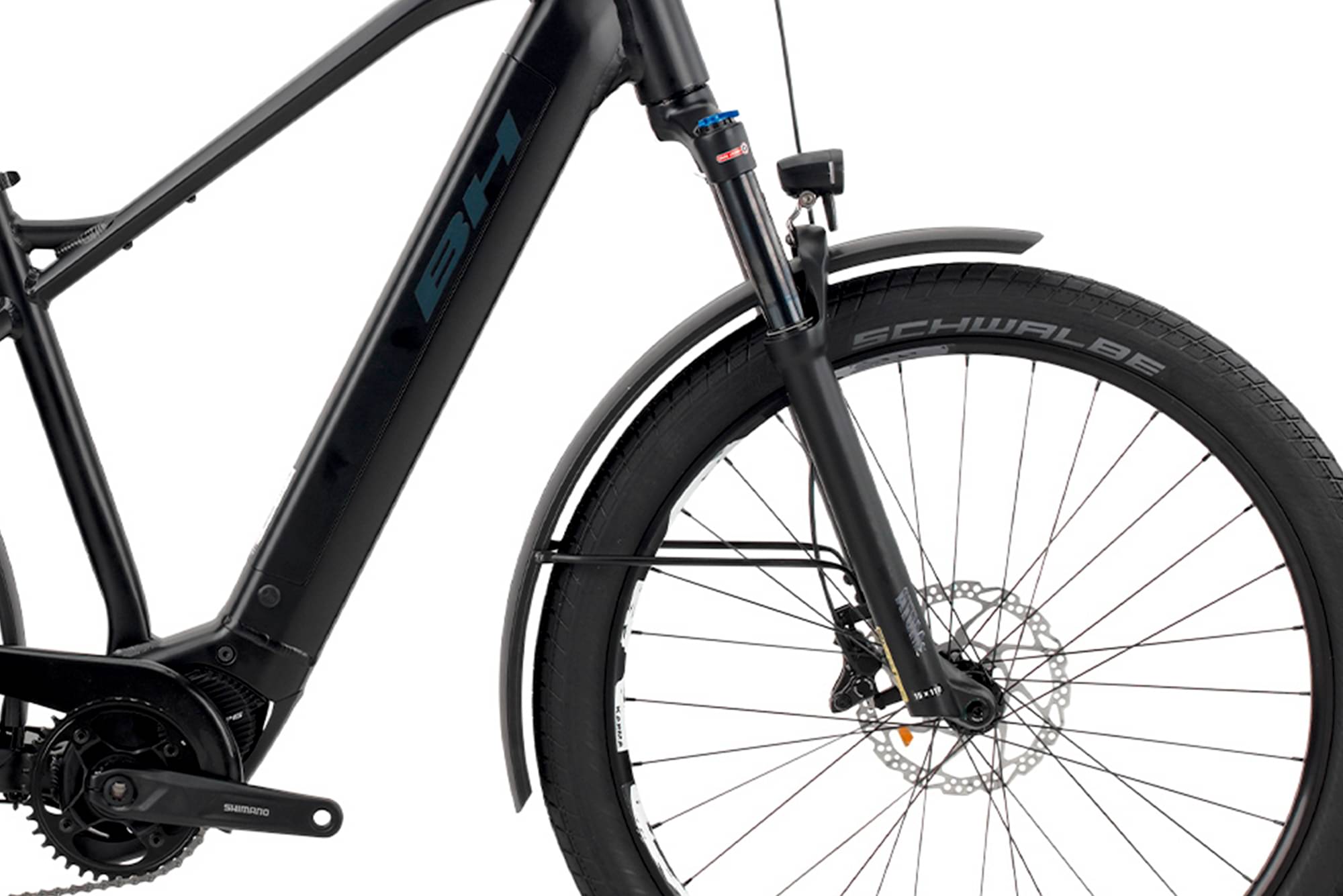

Fork
The Suntour XCR is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on ATOMe CROSS PRO are the aluminum type. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
