Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Alloy 29" internal cable routing
Suspension Fork
Rock Shox Judy Silver Air 100mm 15QR
Drivetrain
Rear Derailleur
Shimano Deore 11sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM5100 11sp (11-51T)
Crank
Shimano 34T-165mm
Chain
Shimano HG60
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
BH Lite Mach1 Karma
Spokes
Stainless Steel
Tires
Maxxis Forekaster TPI60 29"X2,35"
Brakes
Brakes
Front: Shimano MT201 180mm, Rear: Shimano MT200 180mm
Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-578 BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
BH Alloy 31,6
Motor & Battery
Motor
TS System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm |
| Top Tube Length | 625 mm | 645 mm | 672 mm |
| Seat Tube Angle | 73.75 ° | 73.75 ° | 73.75 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 145 mm | 155 mm | 165 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 712 mm | 735 mm | 759 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
ATOMe PRO is part of the Bh E Atome model. BH launched 10 e-bikes of this model so far. You can easily view all of the Bh E Atome e-bikes models from 2023, here.
Model range prices
BH ATOMe DIAMOND WAVE PRO 2023 is the cheapest e-bike model and costs 4870$. BH ATOMe SUV PRO-SE 2023 is the most expensive one and costs 6697$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fitness e-bikes
Our math shows that the average cost of a dependable Fitness e-bike is 2351$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When BH released this model in 2023, its price was 4870$. Doing a quick comparison, we notice that ATOMe PRO price is 107.15% more expensive than the average cost of a Fitness e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components

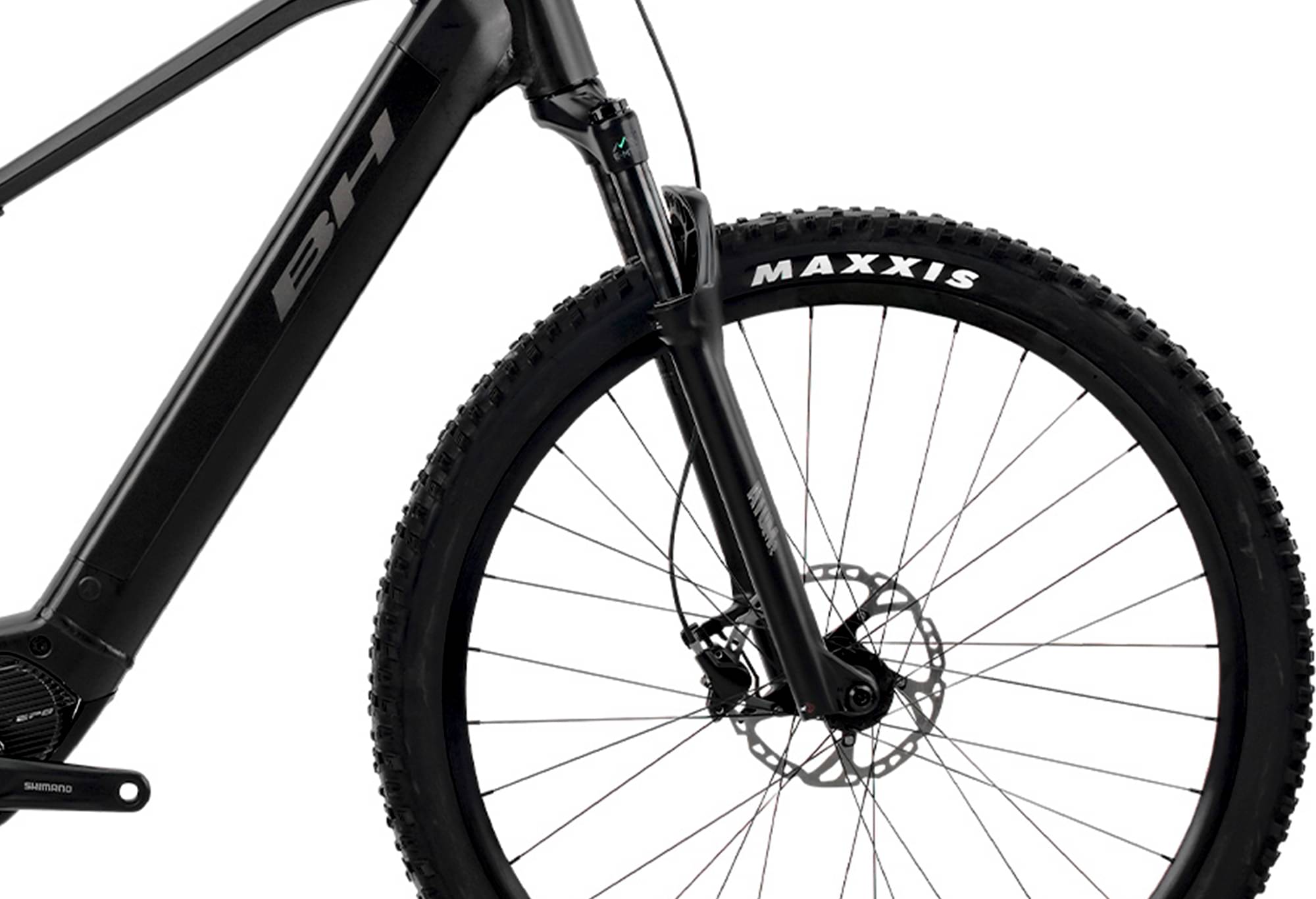

Fork
BH ATOMe PRO 2023 e-bike is equipped with the RockShox Judy Silver TK fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the ATOMe PRO model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ATOMe PRO comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
