Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, FSA -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery ATOMX, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Recon RL
Rear Shock
RockShox Deluxe, DebonAir spring
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
FSA
Chain
Shimano
Chain Guide
Upper slider
Pedals
N/A
Wheels
Front Hub
BH, MICRO SPLINE driver
Rear Hub
BH, MICRO SPLINE driver
Rims
Alexrims EM35 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano SLX, 4-piston, 200mm rotors
Brake Levers
Shimano SLX
Cockpit
Stem
BH A-Head, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10 Factory
Headset
Tapered
Seat
Saddle
Selle Royal Vivo Cr
Seatpost
KS Rage-I dropper
Motor & Battery
Motor
Brose S Mag, 90Nm max torque
Battery
ATOMX, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
About this model

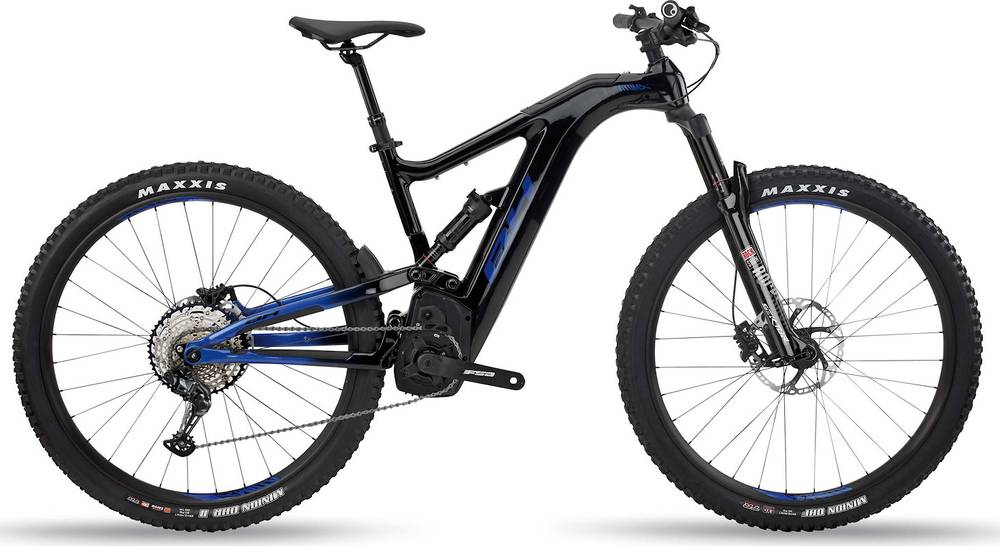

ATOMX Carbon Lynx 5.5 Pro is a Bh E Atomx model. BH launched 58 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
ATOMX Carbon Lynx 5.5 Pro components
Fork
The RockShox Recon Silver RL is included from the factory. It has a travel distance of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The ATOMX Carbon Lynx 5.5 Pro has a rear shock with a travel of 140mm. The model RockShox Deluxe is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The wheels on ATOMX Carbon Lynx 5.5 Pro are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOMX Carbon Lynx 5.5 Pro is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
The BH model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
