Bike details
Overview
Key information split into simple groups.

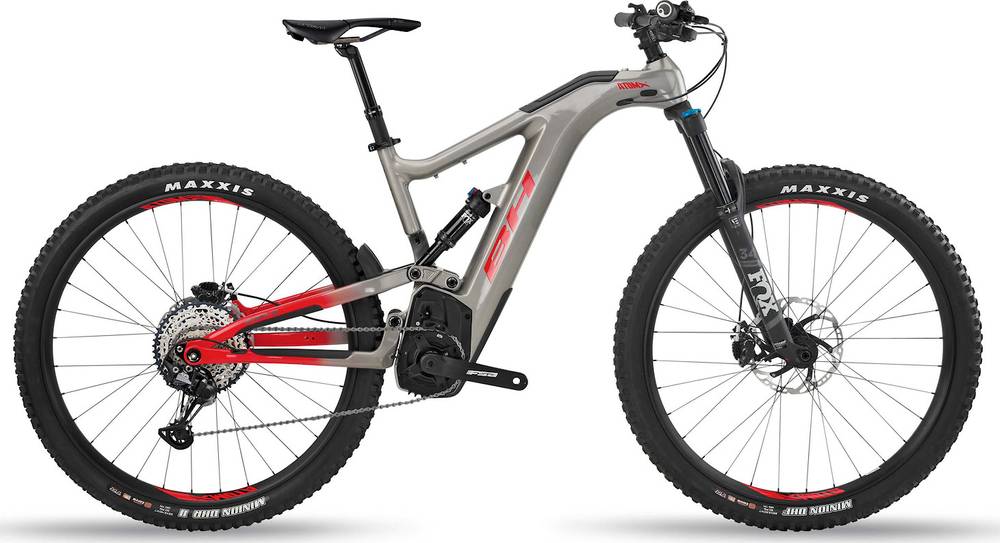

Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, SLX -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery ATOMX, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Rhythm
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
FSA
Chain
Shimano
Chain Guide
Upper slider
Pedals
N/A
Wheels
Front Hub
BH, MICRO SPLINE driver
Rear Hub
BH, MICRO SPLINE driver
Rims
Alexrims EM35 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT, 4-piston, 200mm rotors
Brake Levers
Shimano Deore XT
Cockpit
Stem
BH A-Head, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10 Factory
Headset
Tapered
Seat
Saddle
Prologo Proxim 450STN
Seatpost
KS Rage-I dropper
Motor & Battery
Motor
Brose S Mag, 90Nm max torque
Battery
ATOMX, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.33 mm | 1.31 mm |
| Stack | 600 mm | 614 mm | 627 mm |
| Reach | 447 mm | 463 mm | 478 mm |
| Top Tube Length | 605 mm | 624 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
ATOMX Carbon Lynx 5.5 Pro-S belongs to the Bh E Atomx model. There are 58 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
ATOMX Carbon Lynx 5.5 Pro-S components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT DPS Performance model, with a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The ATOMX Carbon Lynx 5.5 Pro-S 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. BH ATOMX Carbon Lynx 5.5 Pro-S has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
