Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Yari RC
-
Groupset SLX, FSA -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery ATOMX, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Yari
Rear Shock
RockShox Deluxe, DebonAir spring
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
FSA
Chain
Shimano
Chain Guide
Upper slider
Pedals
N/A
Wheels
Front Hub
BH, MICRO SPLINE driver
Rear Hub
BH, MICRO SPLINE driver
Rims
Alexrims EM35 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano MT501, 4-piston, 200mm rotors
Brake Levers
Shimano MT501
Cockpit
Stem
BH A-Head, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10 Factory
Headset
Tapered
Seat
Saddle
Selle Royal Vivo Cr
Seatpost
KS Rage-I dropper
Motor & Battery
Motor
Brose S Mag, 90Nm max torque
Battery
ATOMX, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.36 mm | 1.35 mm |
| Stack | 606 mm | 620 mm | 633 mm |
| Reach | 440 mm | 455 mm | 470 mm |
| Top Tube Length | 608 mm | 627 mm | 645 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1212 mm | 1233 mm | 1254 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

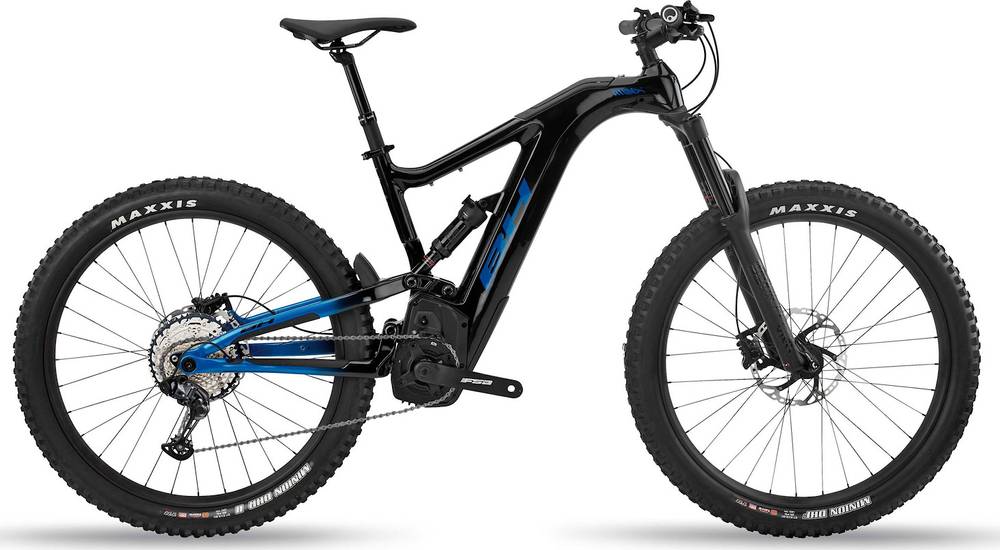

ATOMX Carbon Lynx 6 Pro 29″ is part of the Bh E Atomx model. BH launched 58 e-bikes of this model so far. You can easily view all of the Bh E Atomx e-bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
This e-bike has the RockShox Yari RC fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The wheels on ATOMX Carbon Lynx 6 Pro 29″ are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOMX Carbon Lynx 6 Pro 29″ is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
BH ATOMX Carbon Lynx 6 Pro 29″ e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The BH model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
