BH ATOMX Carbon Lynx 6 Pro-SE 2020

2020 E-bike
E-bike
Open compare Use advisor

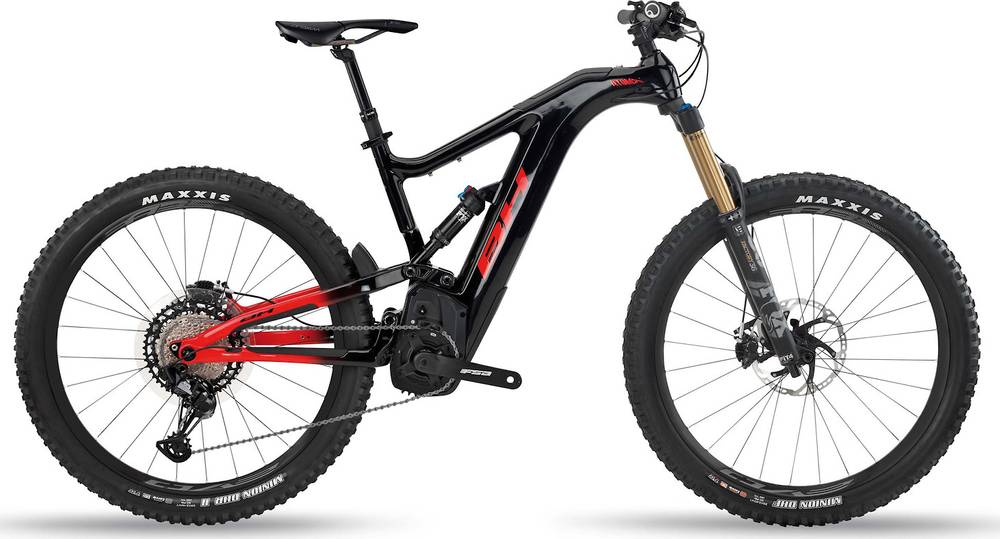

Bh Atomx Carbon Lynx 6 Pro Se 2020

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Wheels 29"
  • Travel Front 160mm
  • Travel Rear 160mm
  • Fork Fox Performance Float 36
  • Groupset XT, FSA
  • Suspension Full
  • Motor Brose 90Nm mid-drive
  • Battery ATOMX, integrated, includes ILock with Smart Key bracelet
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • MD

    165cm - 177cm

  • LG

    175cm - 188cm

  • XL

    185cm - 198cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Carbon Fiber

Suspension Fork

FOX FLOAT 36 Performance

Rear Shock

FOX FLOAT DPS Performance

Drivetrain

Rear Derailleur

Shimano Deore XT, 12-speed

Front Derailleur

N/A

Shift Levers

Shimano Deore XT, 12-speed

Cassette

Shimano Deore XT M8100, 12-speed, 10-51 tooth

Crank

FSA

Chain

Shimano Deore XT M8100, 12-speed

Chain Guide

Upper slider

Pedals

N/A

Wheels

Front Hub

BH, MICRO SPLINE driver

Rear Hub

BH, MICRO SPLINE driver

Rims

BH Evo 35 TR, 28 hole

Spokes

Stainless steel

Tires

Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"

Brakes

Brakes

Shimano Deore XT, 4-piston, 200mm rotors

Brake Levers

Shimano Deore XT

Cockpit

Stem

BH A-Head, 35mm bar clamp

Handlebar

Race Face Aeffect Riser, 780mm width, 35mm clamp diameter

Grips

Ergon GE10 Factory

Headset

Tapered

Seat

Saddle

Prologo Proxim 450STN

Seatpost

KS Rage-I dropper

Motor & Battery

Motor

Brose S Mag, 90Nm max torque

Battery

ATOMX, integrated, includes ILock with Smart Key bracelet

Fit data

Geometry

Numbers for sizing and ride feel.

SizeMDLGXL
Stack Reach Ratio
1.38 mm1.36 mm1.35 mm
Stack
606 mm620 mm633 mm
Reach
440 mm455 mm470 mm
Top Tube Length
608 mm627 mm645 mm
Seat Tube Angle
74.5 °74.5 °74.5 °
Seat Tube Length
450 mm480 mm510 mm
Head Tube Angle
66.5 °66.5 °66.5 °
Head Tube Length
95 mm110 mm125 mm
Chainstay Length
460 mm460 mm460 mm
Wheelbase
1212 mm1233 mm1254 mm
Wheels29"29"29"
Rider Min Height165 cm175 cm185 cm
Rider Max Height177 cm188 cm198 cm

Model Overview

ATOMX Carbon Lynx 6 Pro-SE belongs to the Bh E Atomx model. 58 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.

Safety

When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.

Average price for Enduro e-bikes

If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.

Overview of components

Fork

The ATOMX Carbon Lynx 6 Pro-SE comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.

Rear Shock

As for the rear shock, this e-bike has the FOX FLOAT DPS Performance model, with a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.

Wheels size

As for the wheels, BH ATOMX Carbon Lynx 6 Pro-SE 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.

Brakes

When you want to stop the bike in time, the brakes are vital. The ATOMX Carbon Lynx 6 Pro-SE has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.

Sizes

This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.

Dropper post

BH ATOMX Carbon Lynx 6 Pro-SE includes a dropper post. Therefore, climbing or descending will be a breeze.
