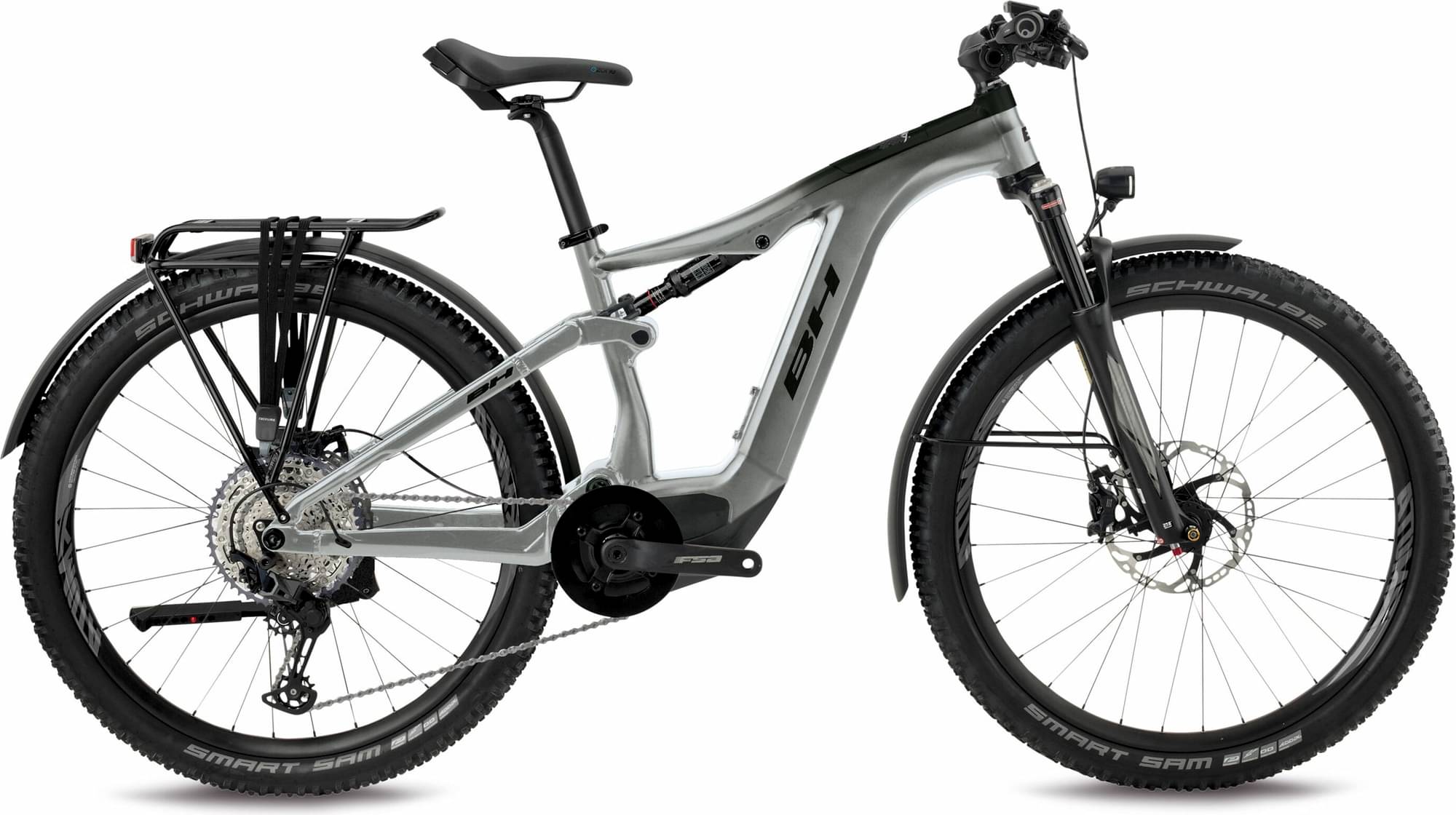

BH ATOMX CROSS PRO-S 2023
2023 E-bike
Estimate price |
8,028$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Travel Rear 100mm -
Fork Suntour XCR
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
100mm Full Suspension Carbon 27,5"+ Alloy Rear Triangle
Suspension Fork
SR Suntour XCR34 LO 120mm 15QR
Rear Shock
Rock Shox Deluxe Sel
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
FSA 38T-170mm
Chain
Shimano CNM6100
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Schwalbe Smart Sam 27,5"X2,6
Brakes
Brakes
Front: Shimano XT 4 Piston 203mm, Rear: Shimano XT 4 Piston 203mm
Cockpit
Stem
Ergotec Adjustable
Handlebar
BH Lite Riser 720mm
Grips
Ergon GP10
Headset
Acros AZX-581 BL.
Seat
Saddle
Selle Royal eZone
Seatpost
BH Lite Alloy 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.4 mm | 1.38 mm | 1.37 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 588 mm | 604 mm | 618 mm | 632 mm |
| Reach | 416 mm | 432 mm | 448 mm | 463 mm |
| Top Tube Length | 590 mm | 598 mm | 624 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm | 150 mm |
| Chainstay Length | 456 mm | 456 mm | 456 mm | 456 mm |
| Wheelbase | 680 mm | 699 mm | 724 mm | 744 mm |
| Wheels | 650 | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ATOMX CROSS PRO-S belongs to the Bh E Atomx model. There are 58 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the BH ATOMX LYNX PRO 8.2 2023 has a starting price of 6932$. BH ATOMX LYNX CARBON PRO 9.9 2023 on the other hand is the most expensive at 10703$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When BH released this model in 2023, its price was 7297$. In conclusion, this e-bike price is 194.23% higher than the price of the average Hybrid e-bike.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
BH ATOMX CROSS PRO-S e-bike has the Rock Shox Deluxe Sel model installed, and has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The ATOMX CROSS PRO-S 2023 e-bike is equipped with aluminum wheels when leaving the factory. After 700c wheels, 650b is the second most popular choice for road bikes. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOMX CROSS PRO-S is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
