Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 140mm -
Fork RockShox Judy
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery ATOMX, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Judy
Rear Shock
RockShox Deluxe, DebonAir spring
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM SX Eagle, 12-speed, 11-50 tooth
Crank
SRAM
Chain
SRAM SX Eagle, 12-speed
Chain Guide
Upper slider
Pedals
N/A
Wheels
Front Hub
BH, HG driver
Rear Hub
BH, HG driver
Rims
Alexrims EM35 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano MT401, 4-piston, 200mm rotors
Brake Levers
Shimano MT401
Cockpit
Stem
BH A-Head
Handlebar
BH MTB Riser, alloy, 780mm width
Grips
BH Perform, lock-on
Headset
Tapered
Seat
Saddle
Selle Royal Seta S1
Seatpost
Alloy
Motor & Battery
Motor
Brose S Mag, 90Nm max torque
Battery
ATOMX, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.4 mm |
| Stack | 633 mm | 633 mm | 638 mm |
| Reach | 421 mm | 433 mm | 456 mm |
| Top Tube Length | 595 mm | 607 mm | 632 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

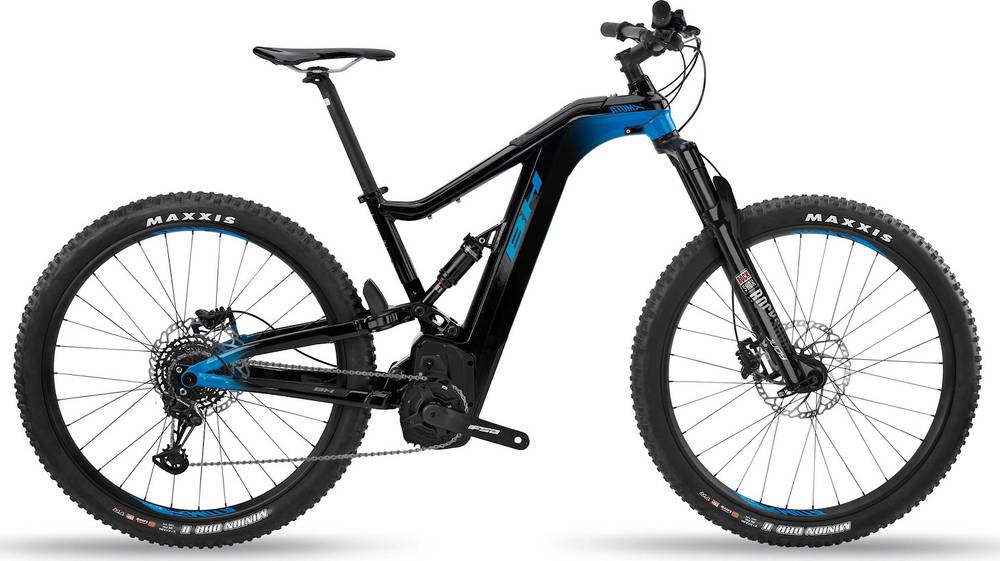

ATOMX Lynx 5.5 belongs to the Bh E Atomx model. 58 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
ATOMX Lynx 5.5 components
Fork
This e-bike has the RockShox Judy fork installed. The fork’s travel is 130mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the RockShox Deluxe model, with a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on ATOMX Lynx 5.5 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOMX Lynx 5.5 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
BH ATOMX Lynx 5.5 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
