Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox Recon Silver RL
-
Groupset SLX, FSA -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery ATOMX, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL
Rear Shock
RockShox Deluxe, DebonAir spring
Drivetrain
Rear Derailleur
Shimano SLX, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
FSA
Chain
Shimano
Chain Guide
Upper slider
Pedals
N/A
Wheels
Front Hub
BH, MICRO SPLINE driver
Rear Hub
BH, MICRO SPLINE driver
Rims
Alexrims EM35 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano MT501, 4-piston, 200mm rotors
Brake Levers
Shimano MT501
Cockpit
Stem
Race Face Aeffect, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10 Factory
Headset
Tapered
Seat
Saddle
Selle Royal Vivo Cr
Seatpost
KS Rage-I dropper
Motor & Battery
Motor
Brose S Mag, 90Nm max torque
Battery
ATOMX, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.46 mm | 1.4 mm | 1.41 mm |
| Stack | 633 mm | 633 mm | 638 mm | 656 mm |
| Reach | 421 mm | 433 mm | 456 mm | 466 mm |
| Top Tube Length | 595 mm | 607 mm | 632 mm | 649 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

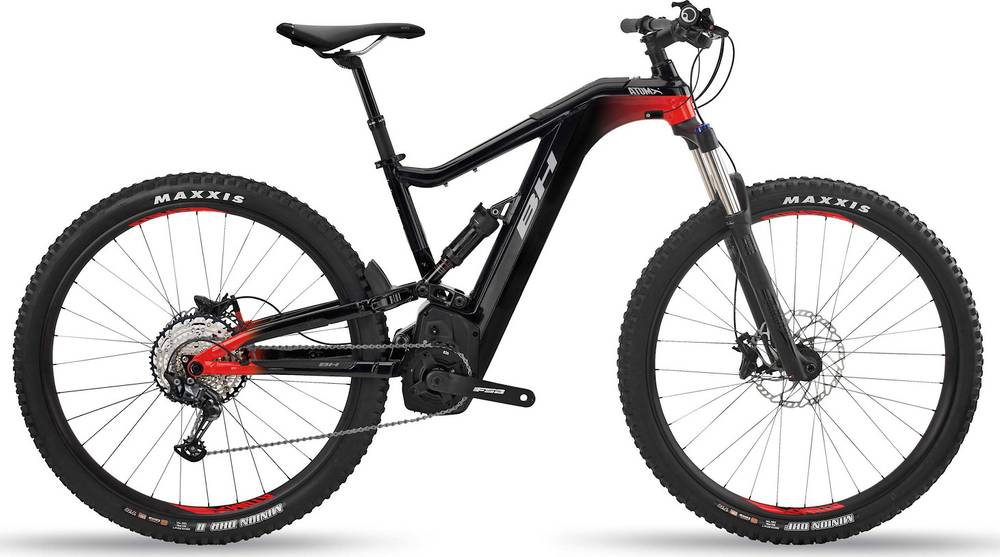

ATOMX Lynx 5.5 Pro belongs to the Bh E Atomx model. 58 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
ATOMX Lynx 5.5 Pro components
Fork
BH ATOMX Lynx 5.5 Pro 2020 e-bike is equipped with the RockShox Recon Silver RL fork, and has 140mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe, with a travel distance of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, BH ATOMX Lynx 5.5 Pro 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
BH ATOMX Lynx 5.5 Pro e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The BH model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
