Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Brose 90Nm mid-drive -
Battery BH ATOMX, integrated, includes ILock with Smart Key bracelet -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Performance
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Praxis, 165mm length
Chain
Shimano Deore M6100, 12-speed
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
DT Swiss, MICRO SPLINE driver
Rear Hub
DT Swiss, MICRO SPLINE driver
Rims
DT Swiss H1900 TR
Spokes
Stainless steel
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.5", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR, 120 TPI, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
Race Face Aeffect, 35mm bar clamp
Handlebar
Race Face Aeffect Riser, 780mm width, 35mm clamp diameter
Grips
Ergon GE10
Headset
ACROS AIX-322 OD46
Seat
Saddle
Prologo Proxim W450 STN
Seatpost
Race Face Aeffect dropper
Motor & Battery
Motor
Brose S-Mag, 90Nm max torque
Battery
BH ATOMX, integrated, includes ILock with Smart Key bracelet
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.41 mm |
| Stack | 629 mm | 634 mm | 653 mm |
| Reach | 429 mm | 452 mm | 462 mm |
| Top Tube Length | 604 mm | 628 mm | 645 mm |
| Seat Tube Angle | 74.5 ° | 74.4 ° | 74.3 ° |
| Seat Tube Length | 450 mm | 485 mm | 510 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 115 mm | 120 mm | 140 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

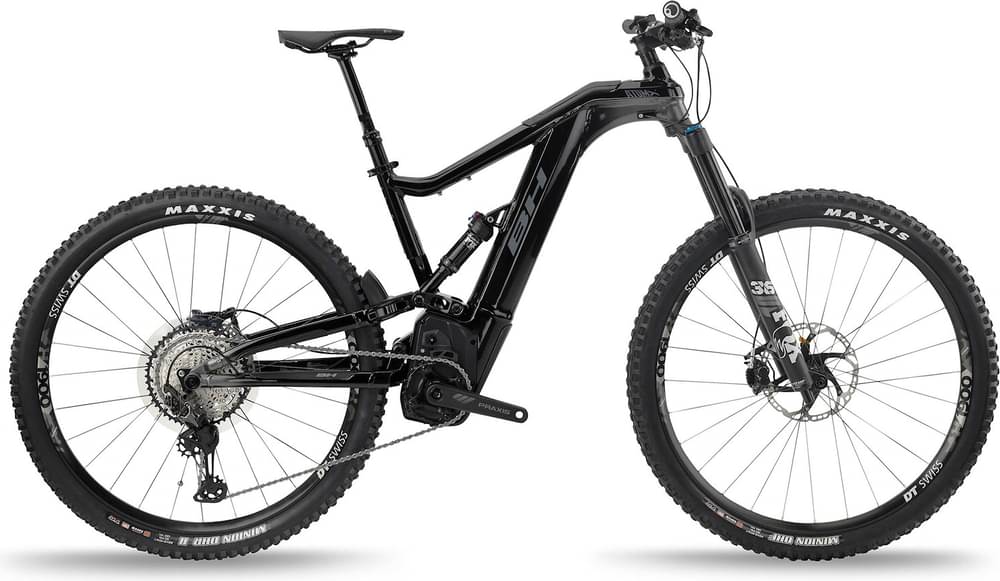

ATOMX Lynx 6 Pro-S is part of the Bh E Atomx model. 58 e-bikes variations carry this model name so far. You can easily view all of the Bh E Atomx e-bikes models from 2021, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
ATOMX Lynx 6 Pro-S components
Fork
BH ATOMX Lynx 6 Pro-S 2021 e-bike is equipped with the Fox Performance Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX FLOAT DPS Performance rear shock model, which has a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The ATOMX Lynx 6 Pro-S 2021 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
BH ATOMX Lynx 6 Pro-S e-bike has 3 sizes, in the range of 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The BH model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
