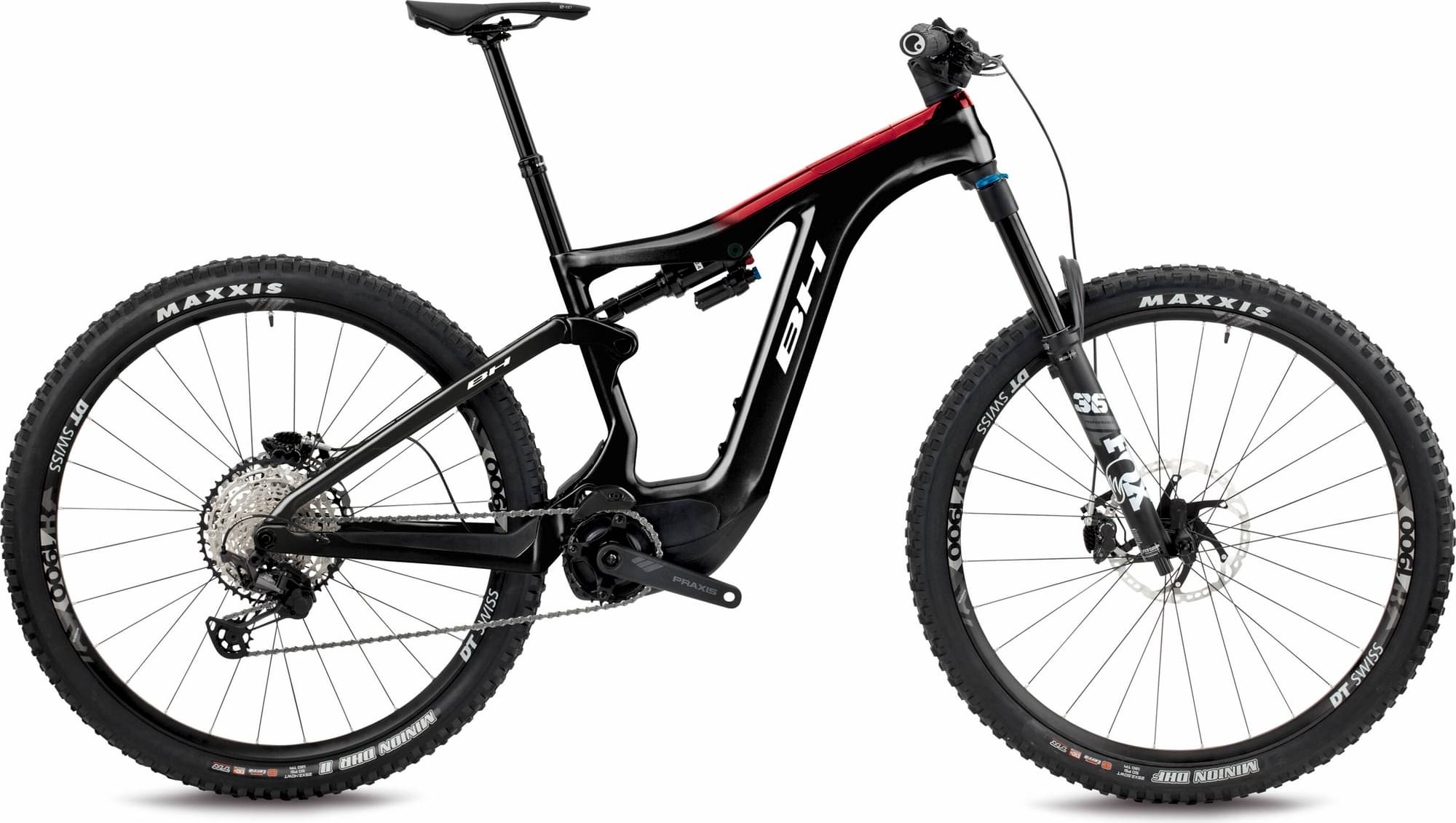

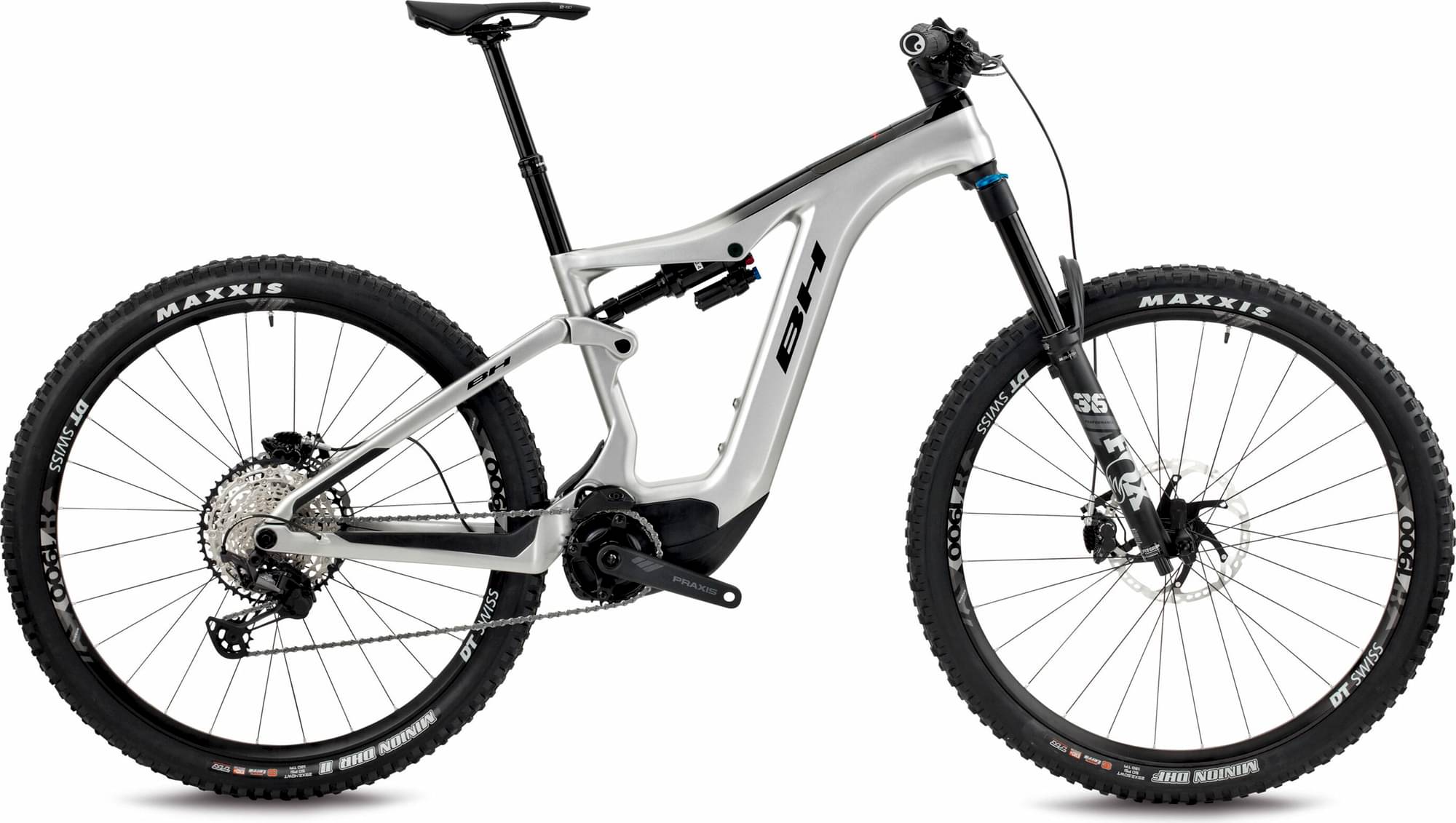

BH ATOMX LYNX CARBON PRO 9.8 2023
2023 E-bike
Estimate price |
10,303$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm Full Susp. Carbon29" Internal Cable Routing, Acros ICR
Suspension Fork
FOX 36 FLOAT Performance 160mm 15QR
Rear Shock
FOX FLOAT X Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano SLX
Cassette
Shimano CSM7100 12sp (10-51T)
Crank
Praxis 32T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
DT Swiss
Rear Hub
DT Swiss
Rims
DT Swiss H1900 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR
Brakes
Brakes
Front: Shimano XT 4 Piston 203mm, Rear: Shimano XT 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AIF-543 ICR BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.38 mm | 1.34 mm | 1.33 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 628 mm | 632 mm | 641 mm | 655 mm |
| Reach | 430 mm | 457 mm | 477 mm | 492 mm |
| Top Tube Length | 577 mm | 605 mm | 627 mm | 645 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 390 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 746 mm | 774 mm | 797 mm | 820 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
ATOMX LYNX CARBON PRO 9.8 is part of the Bh E Atomx model. BH launched 58 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH ATOMX LYNX PRO 8.2 2023 is the cheapest e-bike model and costs 6932$. BH ATOMX LYNX CARBON PRO 9.9 2023 is the most expensive one and costs 10703$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When BH released this model in 2023, its price was 9365$. Comparing the average cost of an Enduro e-bike to this one, you will see that ATOMX LYNX CARBON PRO 9.8 price is 95.72% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ATOMX LYNX CARBON PRO 9.8 components
Fork
The ATOMX LYNX CARBON PRO 9.8 comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The ATOMX LYNX CARBON PRO 9.8 has a rear shock with a travel of 160mm. The model FOX FLOAT X Performance is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the ATOMX LYNX CARBON PRO 9.8 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
