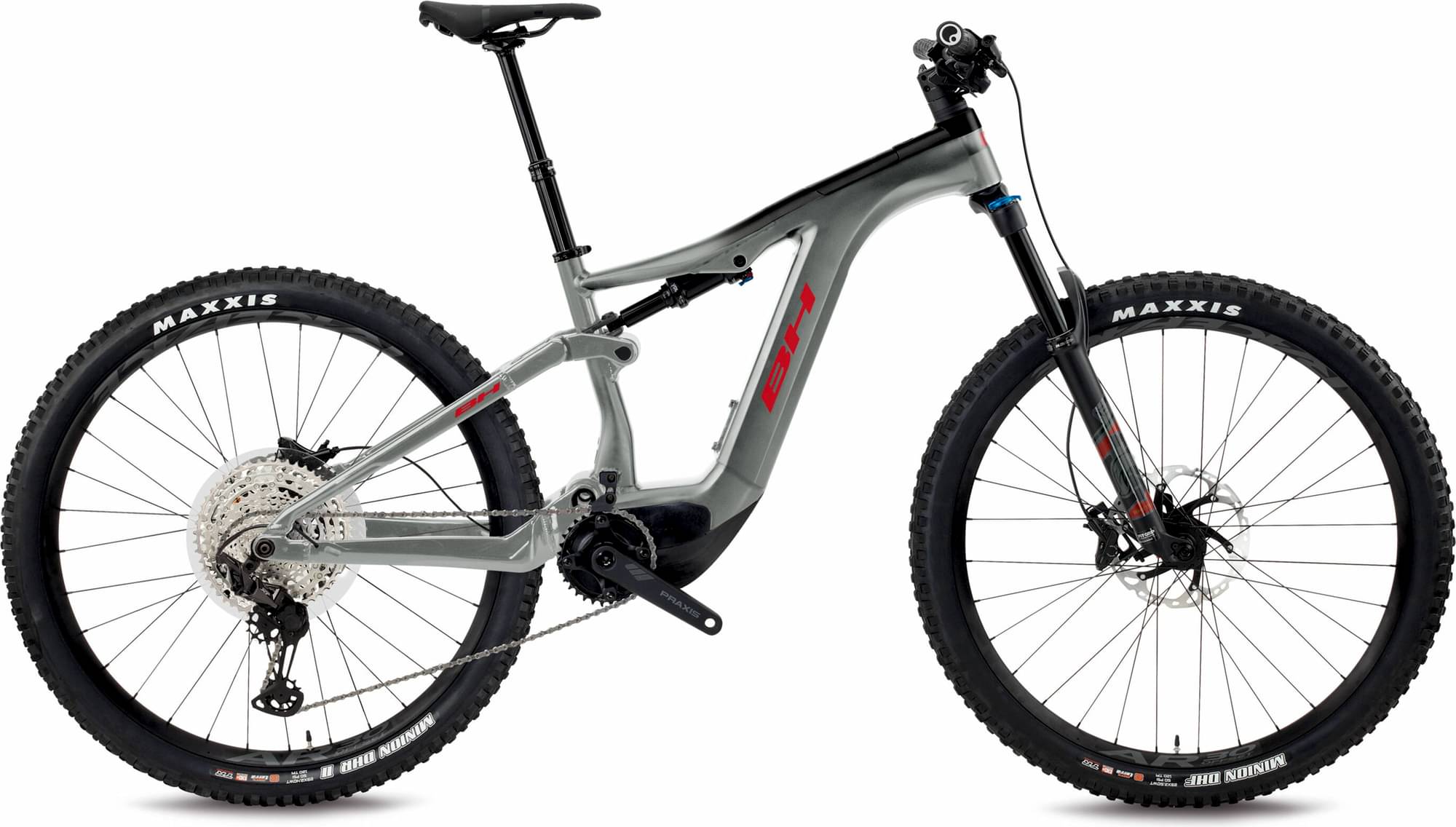

BH ATOMX LYNX PRO 8.4 2023
2023 E-bike
Estimate price |
8,430$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset Deore, Praxis -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140mm Full Susp. Carbon 29", Acros ICR-Alloy Rear Triangle
Suspension Fork
FOX 34 FLOAT Rhythm 140mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore 11sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR
Brakes
Brakes
Front: Shimano MT420 4 Piston, Rear: Shimano MT420 4 Piston
Cockpit
Stem
BH Evo 35 Fit
Handlebar
BH Lite 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.34 mm | 1.3 mm | 1.29 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 596 mm | 600 mm | 609 mm | 623 mm |
| Reach | 421 mm | 448 mm | 468 mm | 483 mm |
| Top Tube Length | 560 mm | 588 mm | 610 mm | 628 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 410 mm | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheelbase | 723 mm | 751 mm | 776 mm | 797 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
ATOMX LYNX PRO 8.4 is a Bh E Atomx model. BH launched 58 e-bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH ATOMX LYNX PRO 8.2 2023 is the most affordable e-bike of this model and has a price of 6932$. On the other hand, BH ATOMX LYNX CARBON PRO 9.9 2023, is the most expensive and costs 10703$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 7662$. If we compare this with the average Trail e-bike cost we notice that the price is 127.7% higher.
ATOMX LYNX PRO 8.4 components
Fork
This e-bike has the Fox Rhythm Float 34 fork installed. The fork’s travel is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the FOX FLOAT DPS Performance rear shock model, which has a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The ATOMX LYNX PRO 8.4 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ATOMX LYNX PRO 8.4 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The BH model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
