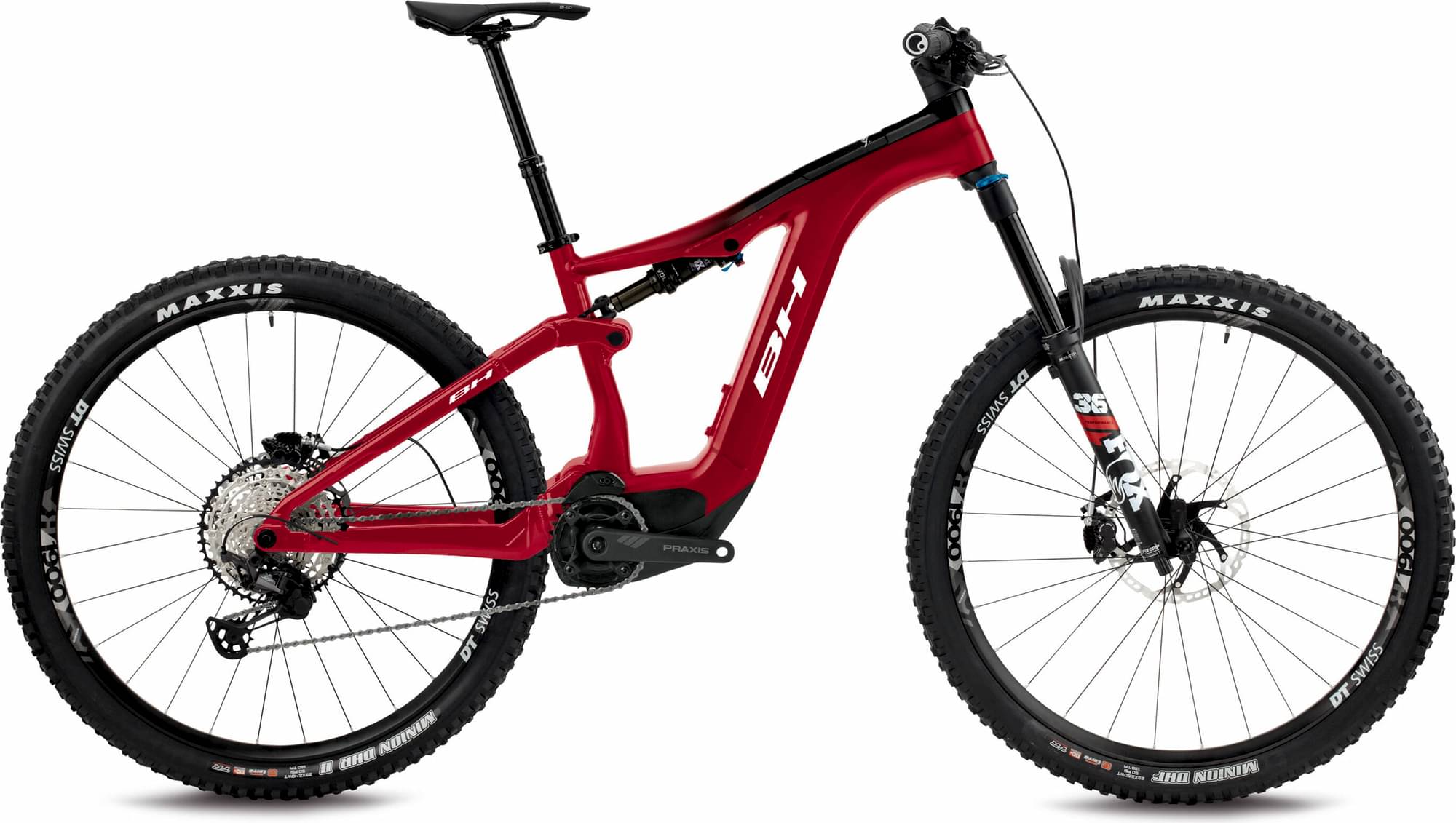

BH ATOMX LYNX PRO 9.2 2023
2023 E-bike
Estimate price |
9,500$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
160mm Full Susp. Carbon 29", Acros ICR-Alloy Rear Triangle
Suspension Fork
FOX 36 FLOAT Performance 160mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano SLX
Cassette
Shimano CSM7100 12sp (10-51T)
Crank
Praxis 32T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
DT Swiss
Rear Hub
DT Swiss
Rims
DT Swiss H1900 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR
Brakes
Brakes
Front: Shimano XT 4 Piston 203mm, Rear: Shimano XT 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
X System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.4 mm | 1.35 mm | 1.34 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 614 mm | 618 mm | 627 mm | 641 mm |
| Reach | 416 mm | 443 mm | 463 mm | 478 mm |
| Top Tube Length | 563 mm | 591 mm | 613 mm | 631 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 410 mm | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 110 mm | 125 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 732 mm | 760 mm | 783 mm | 806 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
ATOMX LYNX PRO 9.2 is a Bh E Atomx model. BH released 58 e-bikes variations of this model so far. You can easily view all of the Bh E Atomx e-bikes models from 2023, here.
Model range prices
BH ATOMX LYNX PRO 8.2 2023 is the most economical model, with a starting price of 6932$. BH ATOMX LYNX CARBON PRO 9.9 2023 on the other hand costs 10703$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, BH ATOMX LYNX PRO 9.2 price was 8635$. Doing a quick comparison, we notice that ATOMX LYNX PRO 9.2 price is 80.46% higher than the average cost of an Enduro e-bike.
ATOMX LYNX PRO 9.2 components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the FOX FLOAT DPS Performance rear shock model, which has a travel of 160mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The ATOMX LYNX PRO 9.2 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH ATOMX LYNX PRO 9.2 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
BH ATOMX LYNX PRO 9.2 e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The BH model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
