Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy
-
Groupset Deore, Praxis -
Suspension Hardtail -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MTB Alloy 29"Internal Cable Routing, Acros ICR Head Set
Suspension Fork
Rock Shox Judy Silver 100mm 15QR
Drivetrain
Rear Derailleur
Shimano Deore 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
Praxis 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Rekon TPI120 Terra EXO TR 29"X2,4
Brakes
Brakes
Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
BH Lite Riser 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
BH Lite Alloy 31,6
Motor & Battery
Motor
X System
Battery
720Wh
Remote
BH X Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.42 mm | 1.38 mm | 1.38 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Stack | 611 mm | 620 mm | 630 mm | 648 mm |
| Reach | 423 mm | 438 mm | 458 mm | 468 mm |
| Top Tube Length | 588 mm | 605 mm | 627 mm | 643 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 450 mm | 480 mm | 510 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm | 473 mm |
| Wheelbase | 683 mm | 702 mm | 725 mm | 742 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

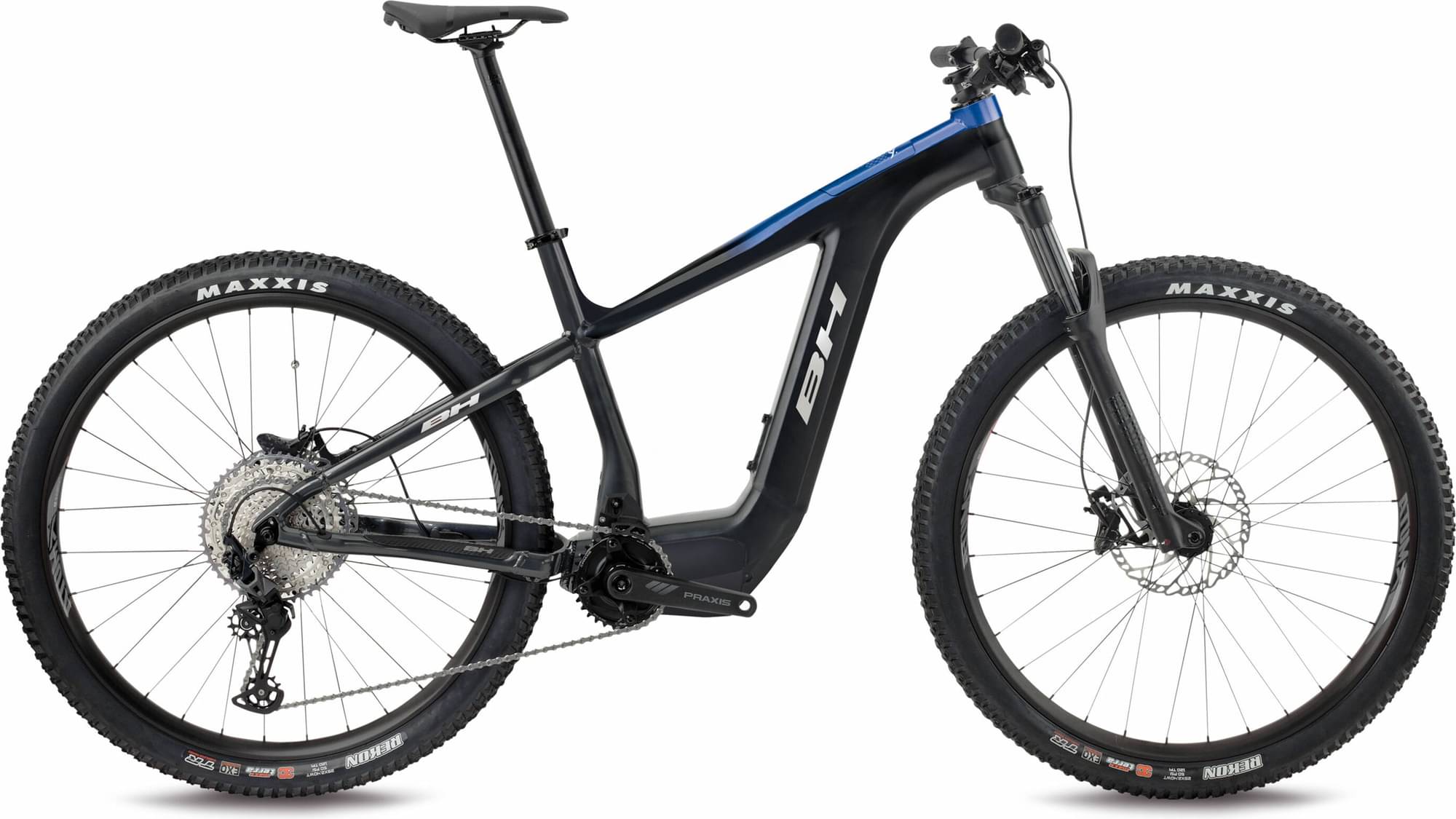

ATOMX PRO is a Bh E Atomx model. 58 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
BH ATOMX PRO 2022 is the cheapest e-bike model and costs 5229$. BH ATOMX LYNX CARBON PRO 9.9 2022 is the most expensive one and costs 10703$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness e-bikes
According to our calculations, the average cost of a Fitness e-bike that is reliable is 2351$. However, this doesn’t mean that if you spend less money on a Fitness e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When BH released this model in 2022, its price was 5229$. In conclusion, this e-bike price is 122.42% more expensive than the price of the average Fitness e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
BH ATOMX PRO 2022 e-bike is equipped with the RockShox Judy fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, BH ATOMX PRO 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. BH ATOMX PRO has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
ATOMX PRO comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
