Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Motor 250W 65Nm mid-drive -
Battery CORE, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 32 Rhythm
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
FSA, 170mm length
Chain
Shimano Deore M6100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano, MICRO SPLINE driver
Rear Hub
Shimano, MICRO SPLINE driver
Rims
Alexrims EXR25 TR
Spokes
Stainless steel
Tires
Maxxis Ikon, wire bead, 60 TPI, 29" x 2.2"
Brakes
Brakes
Shimano MT520, 4-piston, 203mm rotors
Brake Levers
Shimano MT520
Cockpit
Stem
BH Lite Ahead
Handlebar
BH MTB SLite Flat, alloy, 780mm width
Grips
Ergon GE1 Factory
Headset
ACROS AIF-546 ICR BL
Seat
Saddle
Prologo Scratch M5 Stn
Seatpost
SLite, alloy
Motor & Battery
Motor
BH 2ESMAG, 250W, 65Nm max torque
Battery
CORE, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.546 mm | 1.516 mm | 1.463 mm |
| Stack | 626 mm | 635 mm | 645 mm |
| Reach | 405 mm | 419 mm | 441 mm |
| Top Tube Length | 586 mm | 602 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

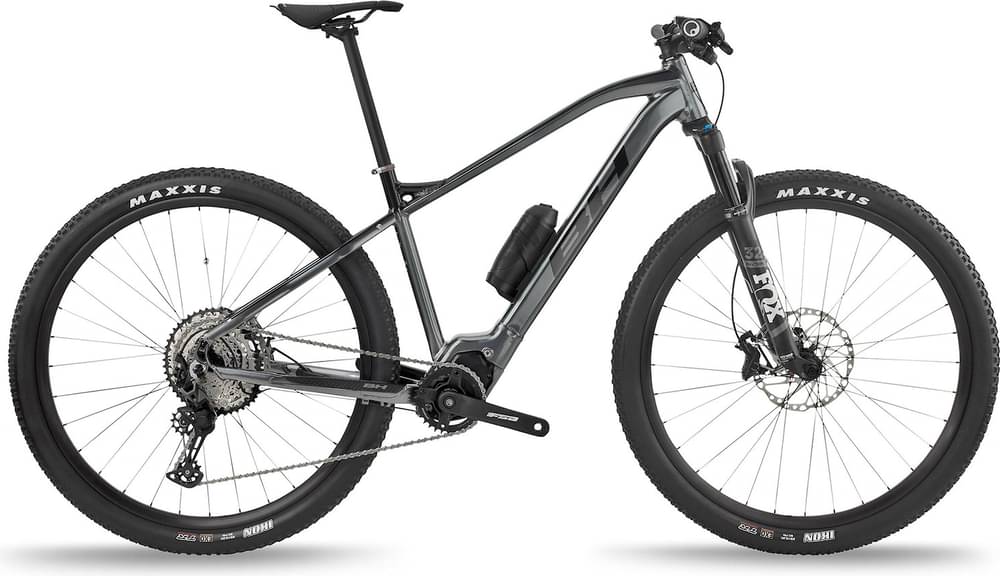

CORE 29 Pro is part of the Bh E Core model. There are 33 e-bikes that carry this model name. You can easily view all of the Bh E Core e-bikes models from 2021, here.
Model range prices
BH CORE RACE 1.2 2021 is the most economical model, with a starting price of 4499$. BH CORE GRAVELX 2.4 2021 on the other hand costs 5473$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
CORE 29 Pro components
Fork
BH CORE 29 Pro 2021 e-bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, BH CORE 29 Pro 2021, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH CORE 29 Pro is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
BH CORE 29 Pro e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
