Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, FSA -
Suspension Rigid -

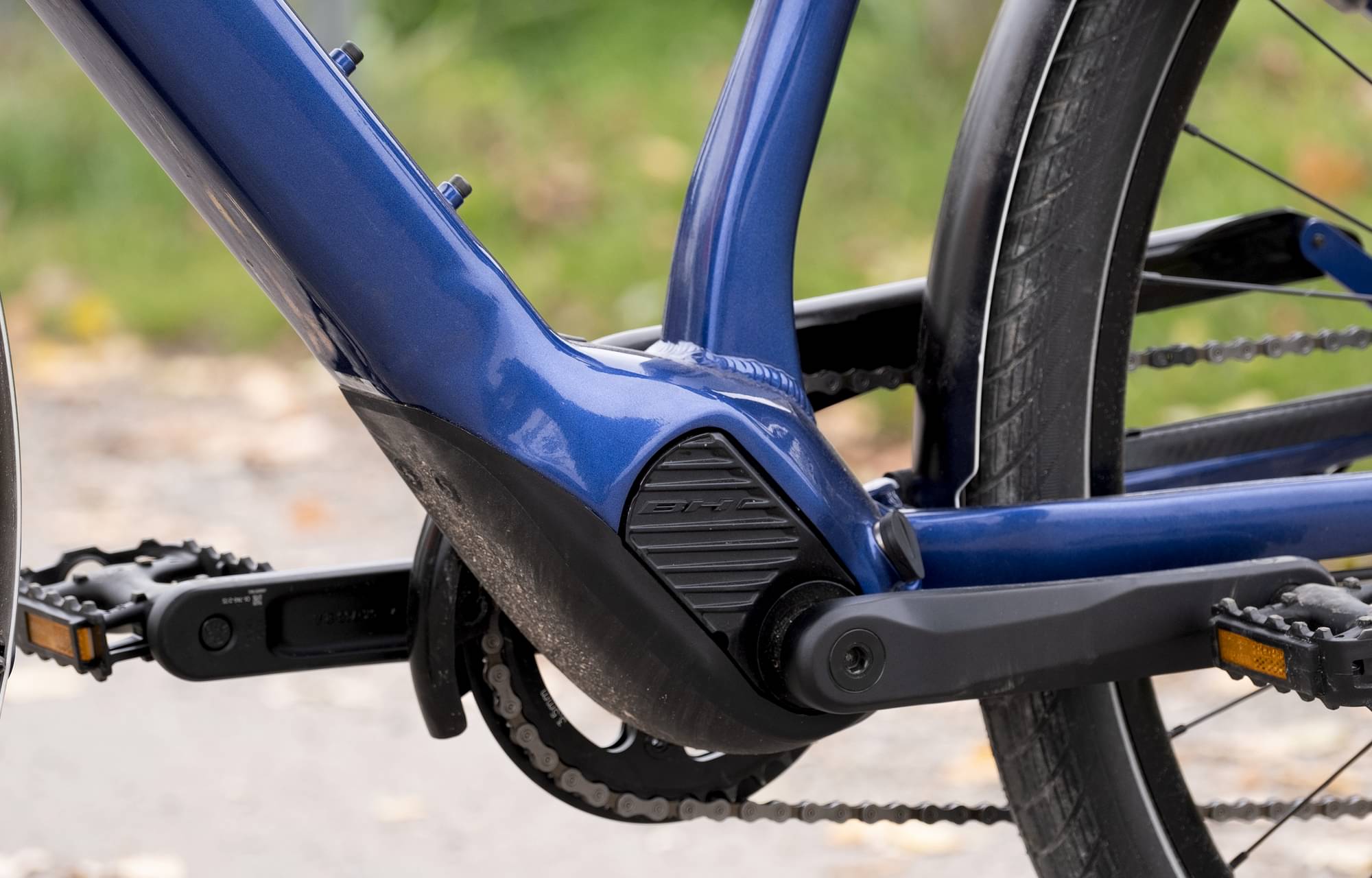

Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Alloy 28" Internal Cable Routing
Suspension Fork
BH Lifestyle Alu
Drivetrain

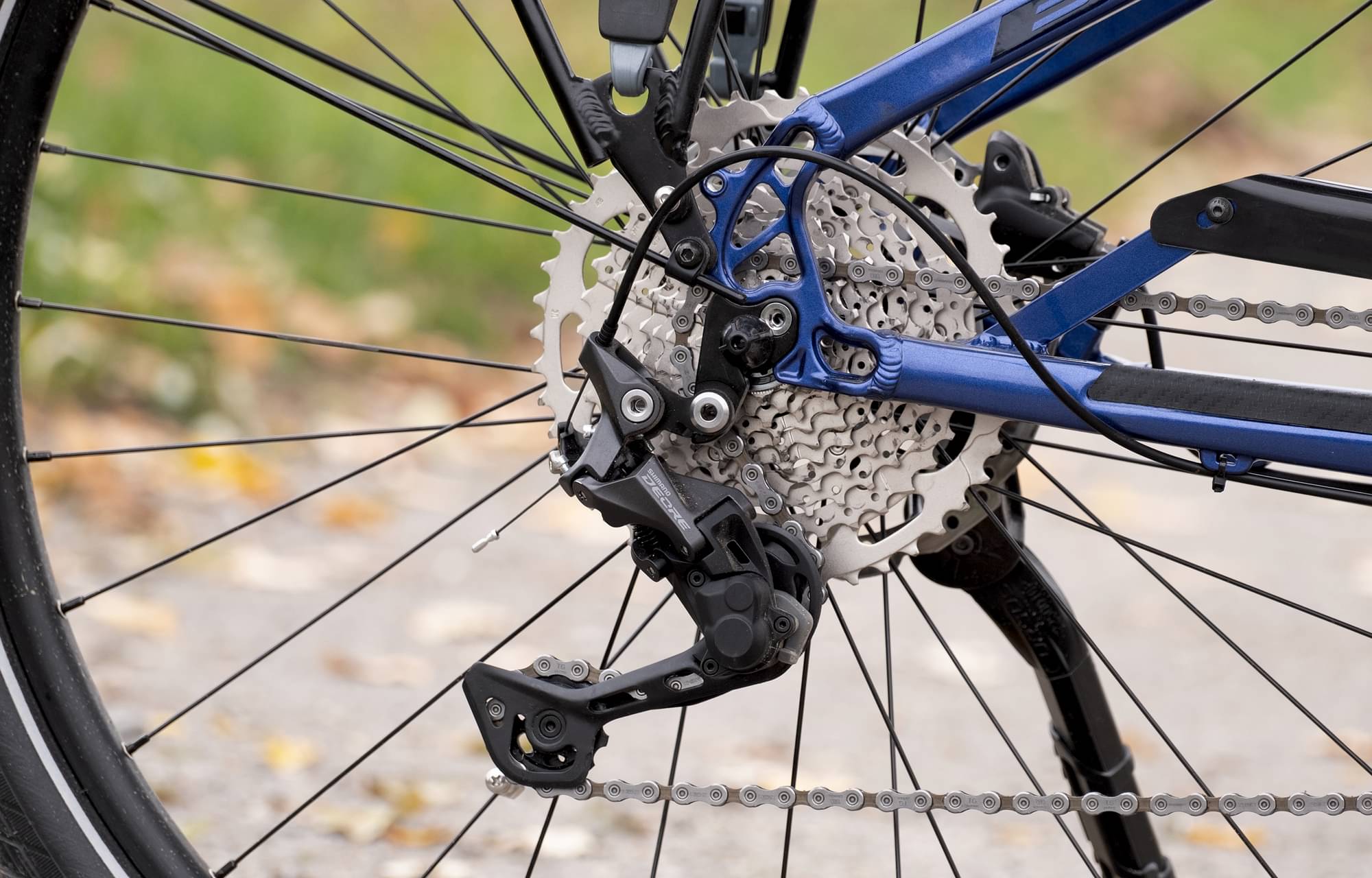

Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Schwalbe Marathon Perf 40-622
Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm

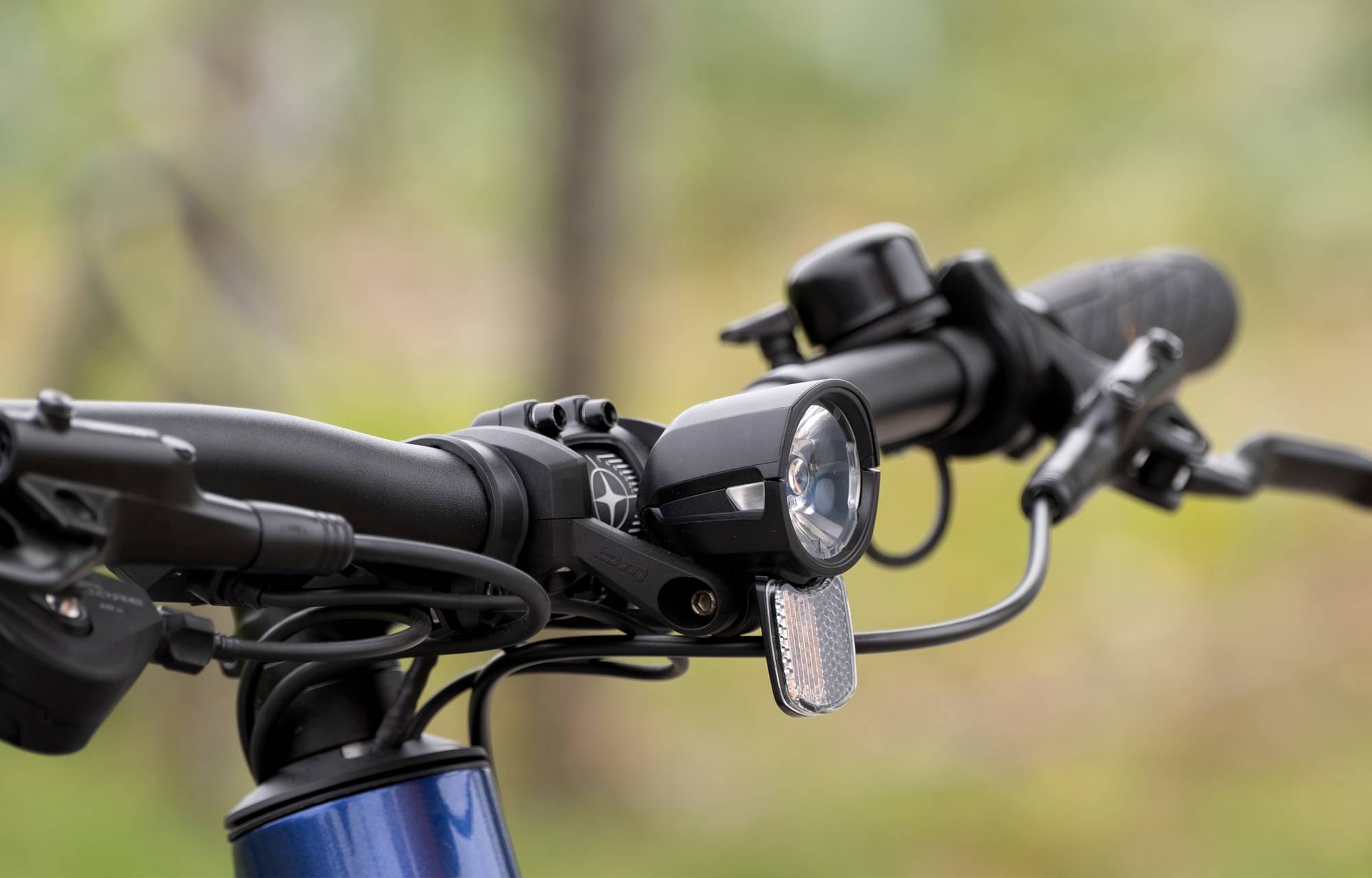

Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
Ergon GP10
Headset
Acros AIF-544 ICR IPS
Seat
Saddle
Selle Royal Lift
Seatpost
Alloy 31,6
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 289 mm |
| Stack | 570 mm | 579 mm | 589 mm |
| Reach | 436 mm | 437 mm | 462 mm |
| Top Tube Length | 593 mm | 603 mm | 636 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 672 mm | 676 mm | 704 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
CORE CROSS completes the Bh E Core model. BH launched 33 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH CORE CITY WAVE 2023 is the cheapest e-bike model and costs 3283$. BH CORE RACE CARBON 1.6 2023 is the most expensive one and costs 9608$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, BH CORE CROSS price was 3526$. If we compare this with the average Hybrid e-bike cost we notice that the price is 42.18% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels
As for the wheels, BH CORE CROSS 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.

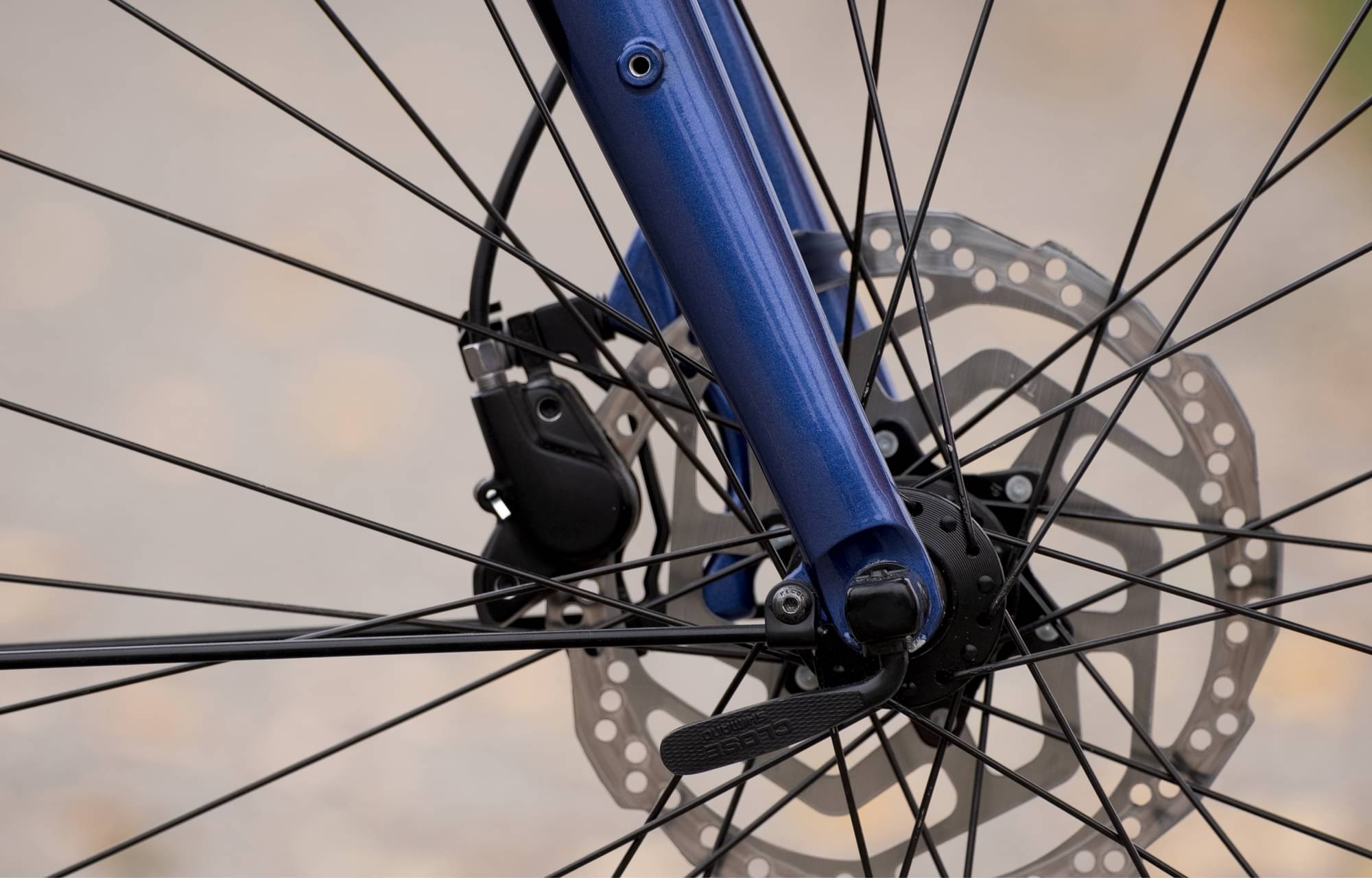

Brakes
When you want to stop the bike in time, the brakes are vital. The CORE CROSS has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
