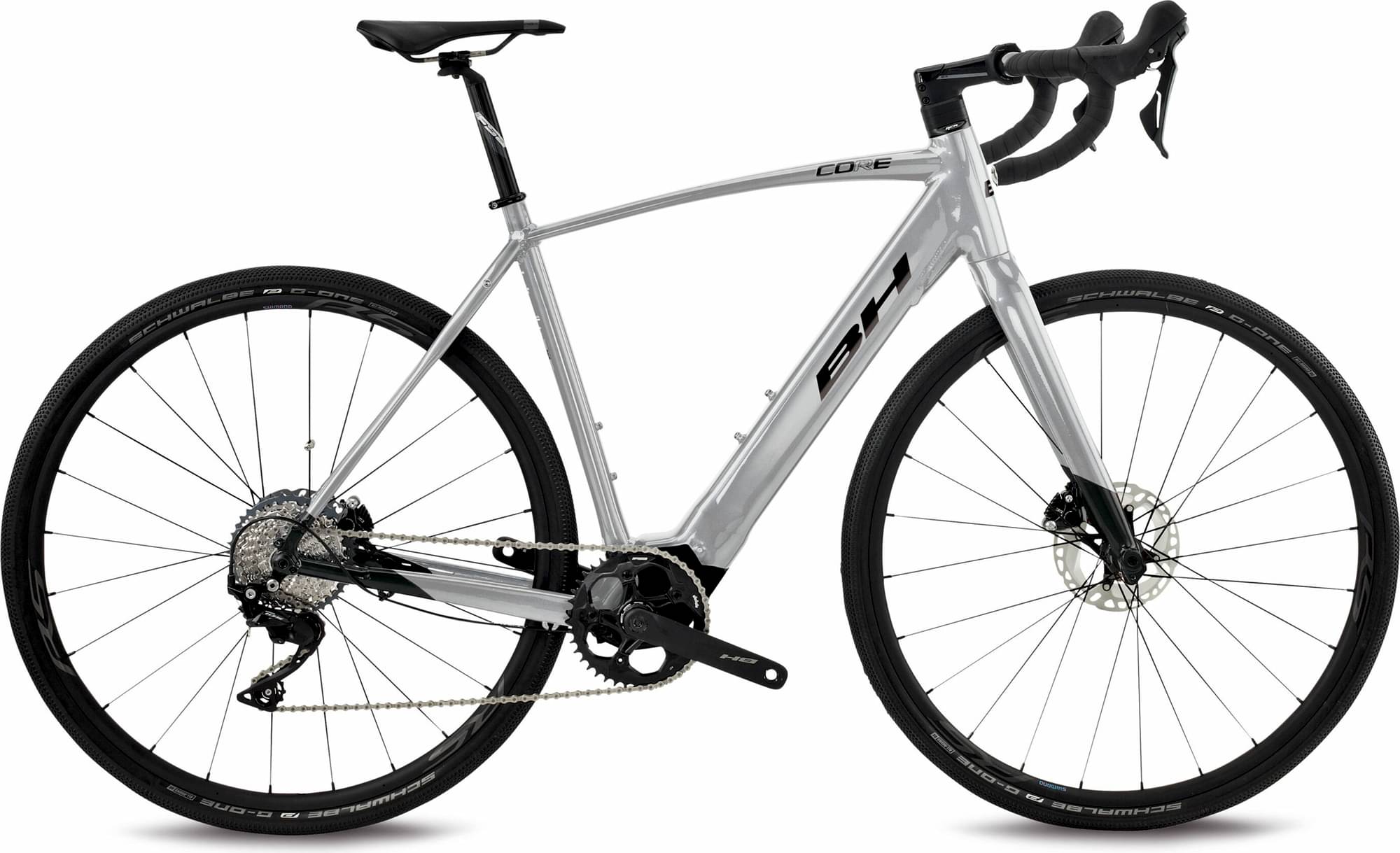

BH CORE GRAVELX 2.2 2023
2023 E-bike
Estimate price |
5,619$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, FSA -
Suspension Rigid -

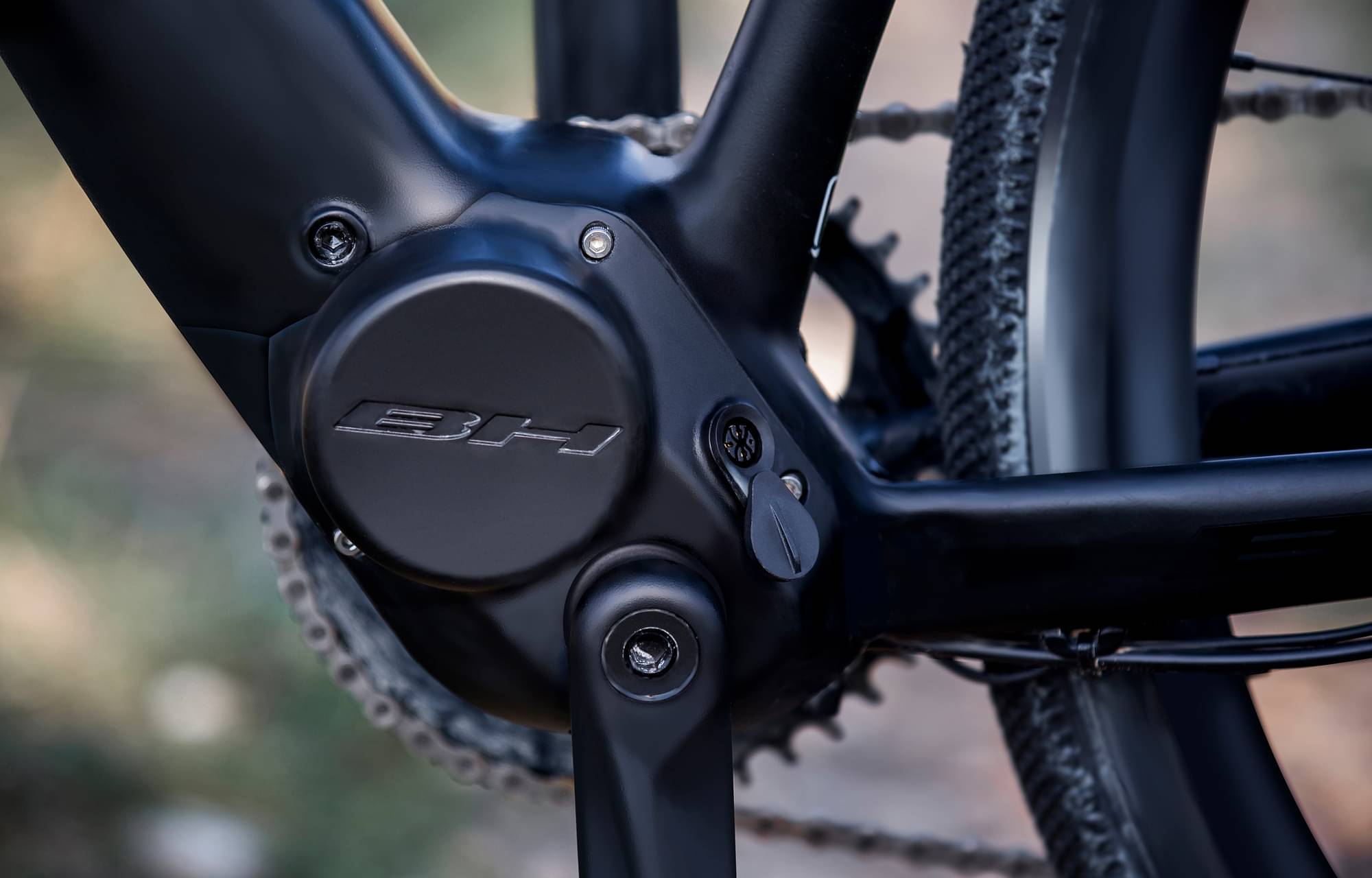

Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel Alloy 28" Internal Cable Routing
Suspension Fork
BH Gravel Carbon ACR
Drivetrain
Rear Derailleur
Shimano GRX 11sp
Front Derailleur
-
Shift Levers
Shimano GRX
Cassette
Shimano CSM7000 11sp (11-42T)
Crank
FSA 42T
Bottom Bracket
-
Chain
Shimano HG70
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Shimano RS171 TR
Spokes
Stainless Steel
Tires
Schwalbe G-One 700X38
Brakes
Brakes
Front: Shimano GRX 160mm, Rear: Shimano GRX 160mm
Cockpit
Stem
BH Lite Ahead
Handlebar
FSA Energy SCR Compact
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Akero Agx
Seatpost
Lite Alloy 27,2
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Top Tube Length | 548 mm | 563 mm | 583 mm |
| Seat Tube Angle | 73.3 ° | 73 ° | 72 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 604 mm | 606 mm | 624 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
CORE GRAVELX 2.2 is part of the Bh E Core model. BH released 33 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH CORE CITY WAVE 2023 is the most affordable e-bike of this model and has a price of 3283$. On the other hand, BH CORE RACE CARBON 1.6 2023, is the most expensive and costs 9608$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel e-bikes average price
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When BH released this model in 2023, its price was 5108$. Comparing the average cost of a Gravel e-bike to this one, you will see that CORE GRAVELX 2.2 price is 40.25% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the CORE GRAVELX 2.2 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The CORE GRAVELX 2.2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
BH CORE GRAVELX 2.2 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
