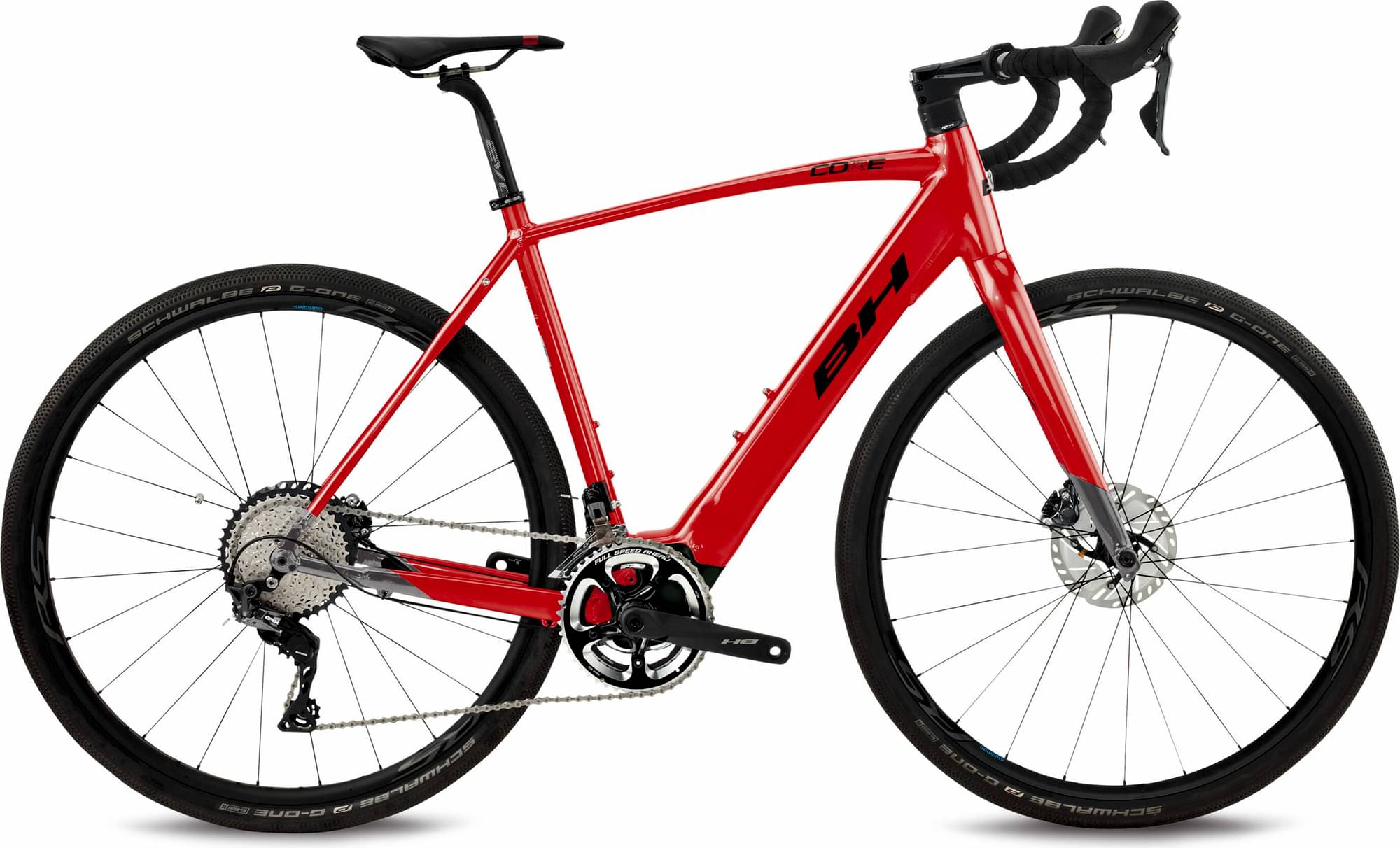

BH CORE GRAVELX 2.4 2023
2023 E-bike
Estimate price |
6,288$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, FSA -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel Alloy 28" Internal Cable Routing
Suspension Fork
BH Gravel Carbon ACR
Drivetrain
Rear Derailleur
Shimano GRX 11sp
Front Derailleur
Shimano GRX
Shift Levers
Shimano GRX
Cassette
Shimano CSM7000 11sp (11-42T)
Crank
FSA 50/34T
Bottom Bracket
-
Chain
Shimano HG70
Pedals
-
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Shimano RS370 TR
Spokes
Stainless Steel
Tires
Schwalbe G-One 700X38
Brakes
Brakes
Front: Shimano GRX 160mm, Rear: Shimano GRX 160mm
Cockpit
Stem
BH Lite Ahead
Handlebar
FSA Energy SCR Compact
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Agx
Seatpost
Lite Alloy 27,2
Motor & Battery

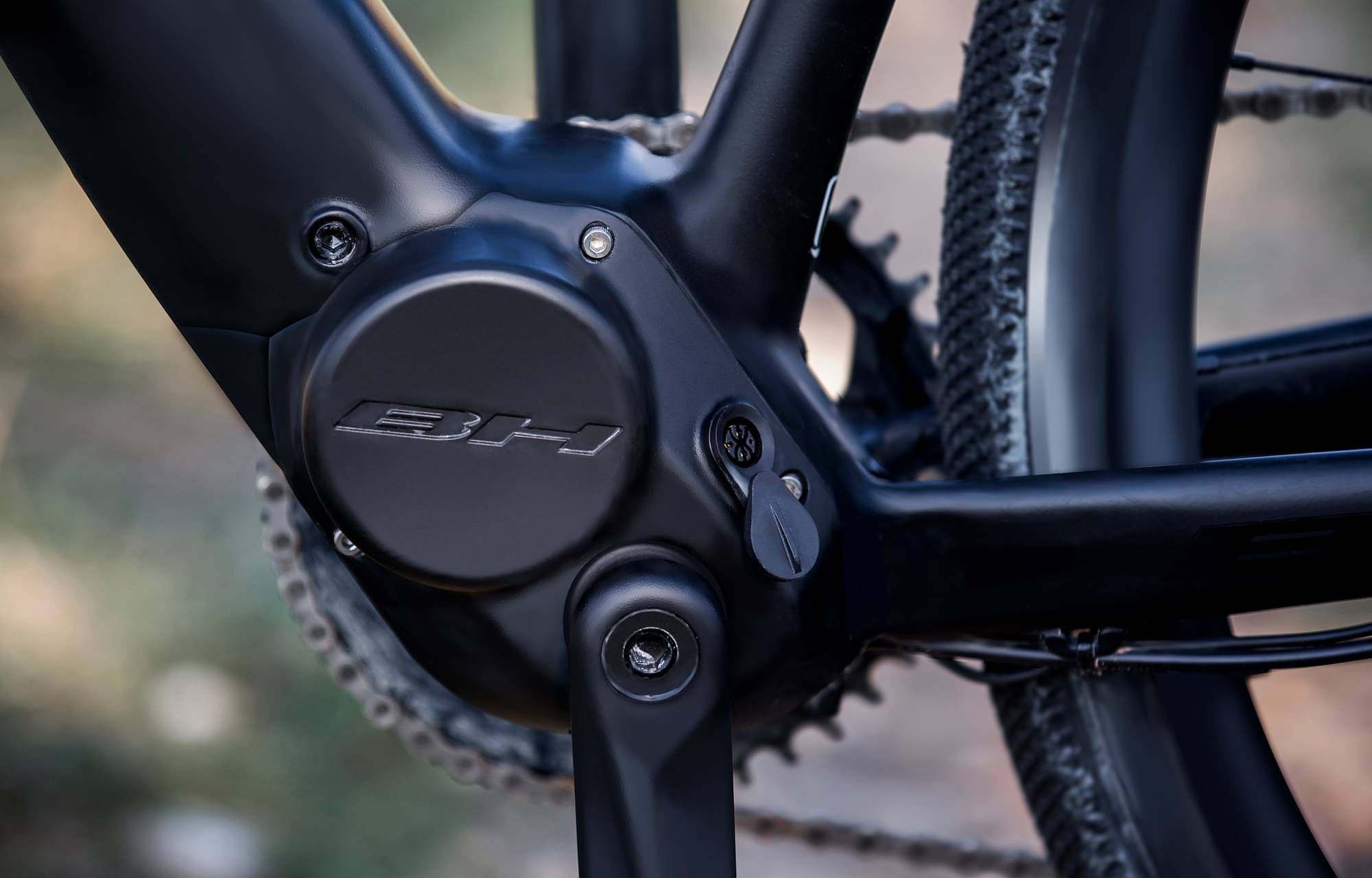

Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 280 mm | 280 mm | 280 mm |
| Top Tube Length | 548 mm | 563 mm | 583 mm |
| Seat Tube Angle | 73.3 ° | 73 ° | 72 ° |
| Seat Tube Length | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 604 mm | 606 mm | 624 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CORE GRAVELX 2.4 is a Bh E Core model. There are 33 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH CORE CITY WAVE 2023 is the cheapest e-bike model and costs 3283$. BH CORE RACE CARBON 1.6 2023 is the most expensive one and costs 9608$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel e-bikes average price
If you want an acceptable Gravel e-bike you should know that the average price is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 5716$. In conclusion, this e-bike price is 56.95% more expensive than the price of the average Gravel e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
CORE GRAVELX 2.4 components
Fork material
CORE GRAVELX 2.4 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, BH CORE GRAVELX 2.4 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The CORE GRAVELX 2.4 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
