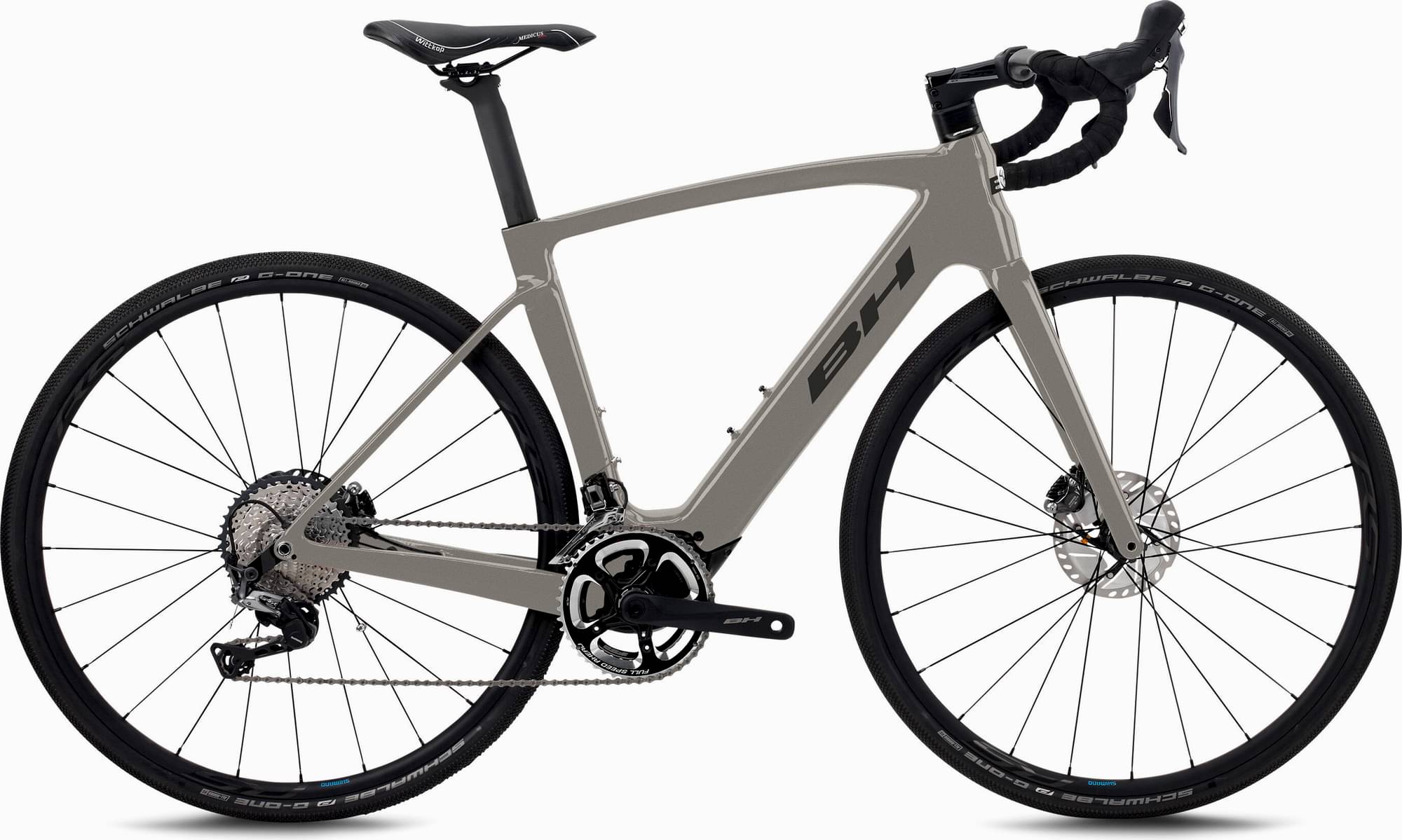

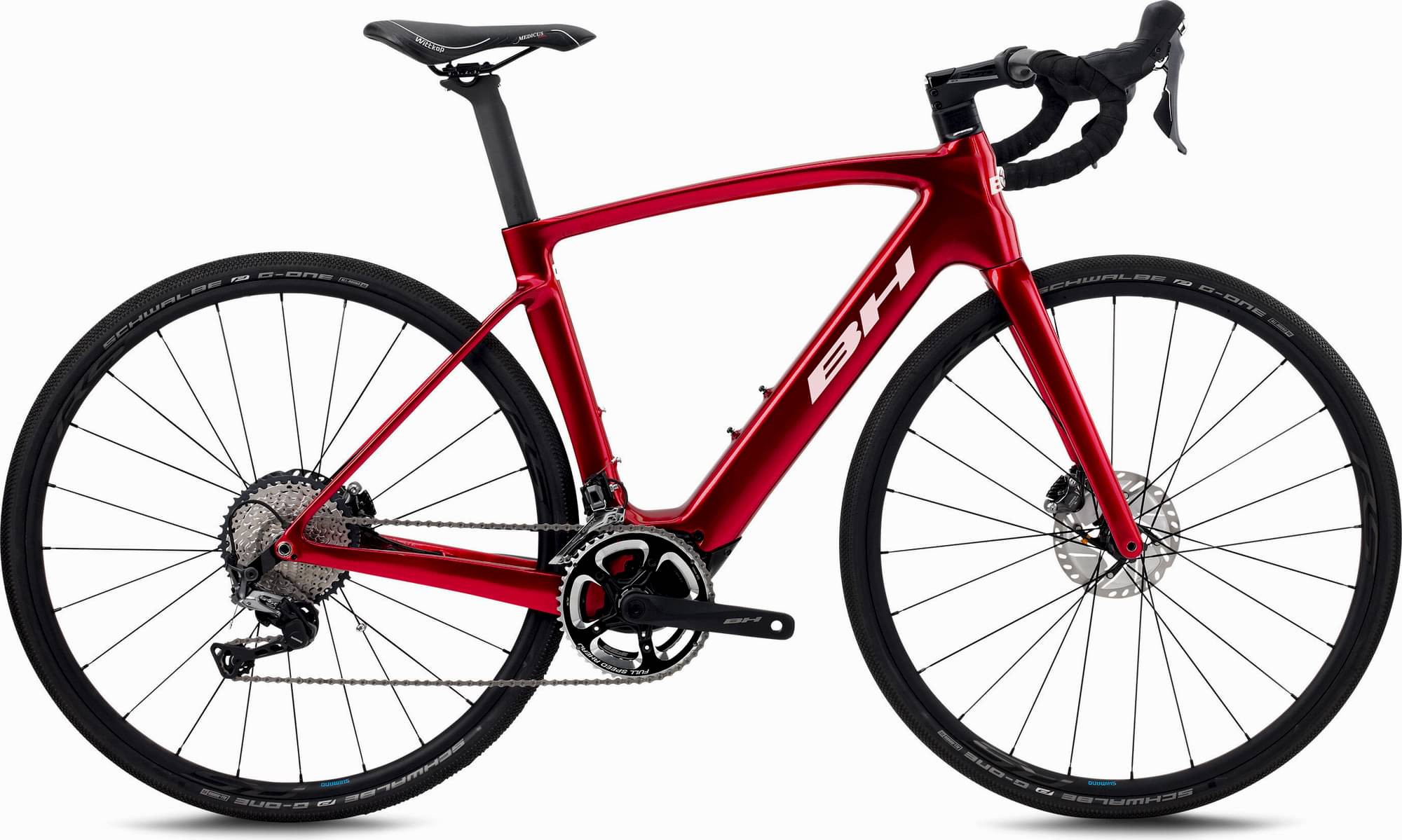

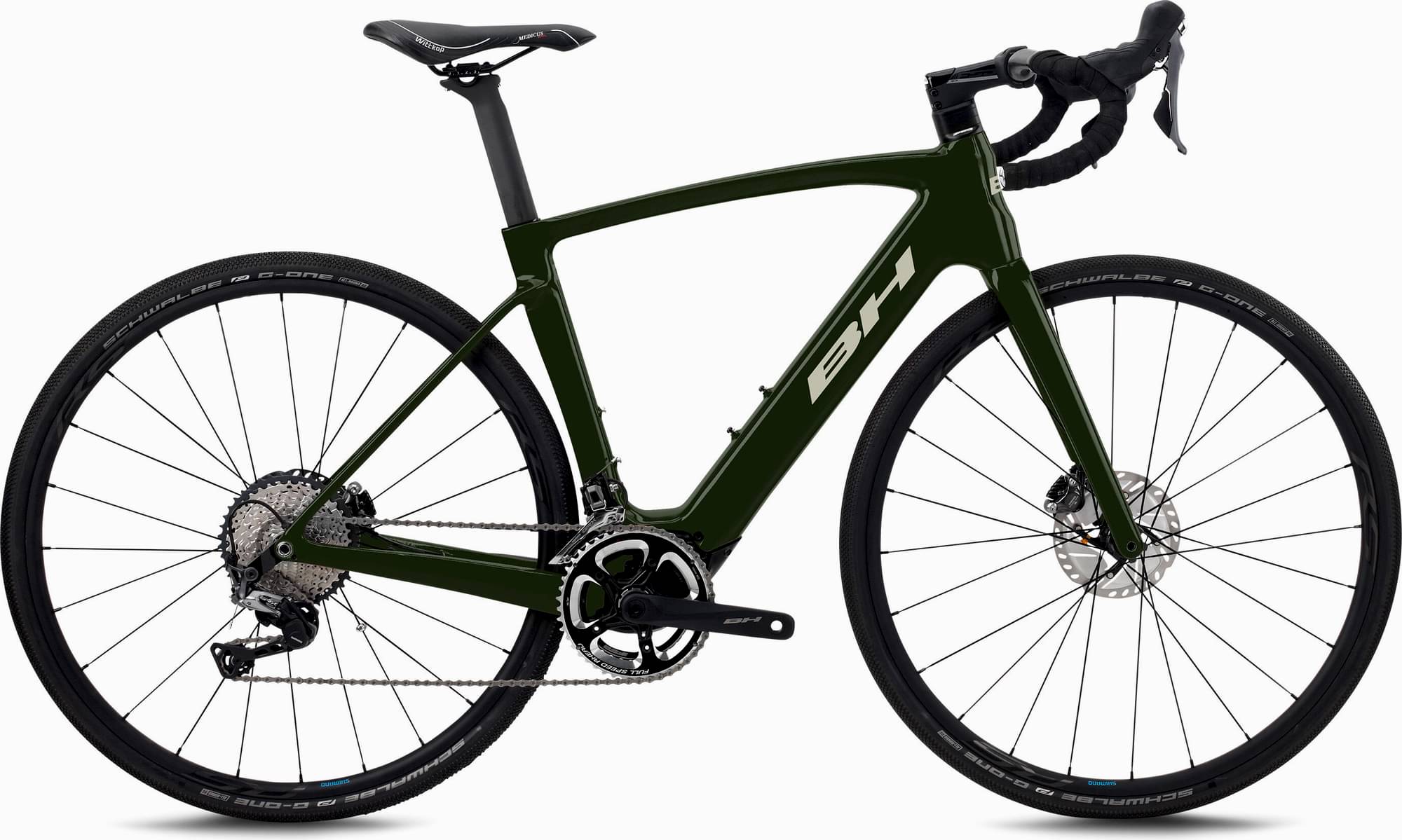

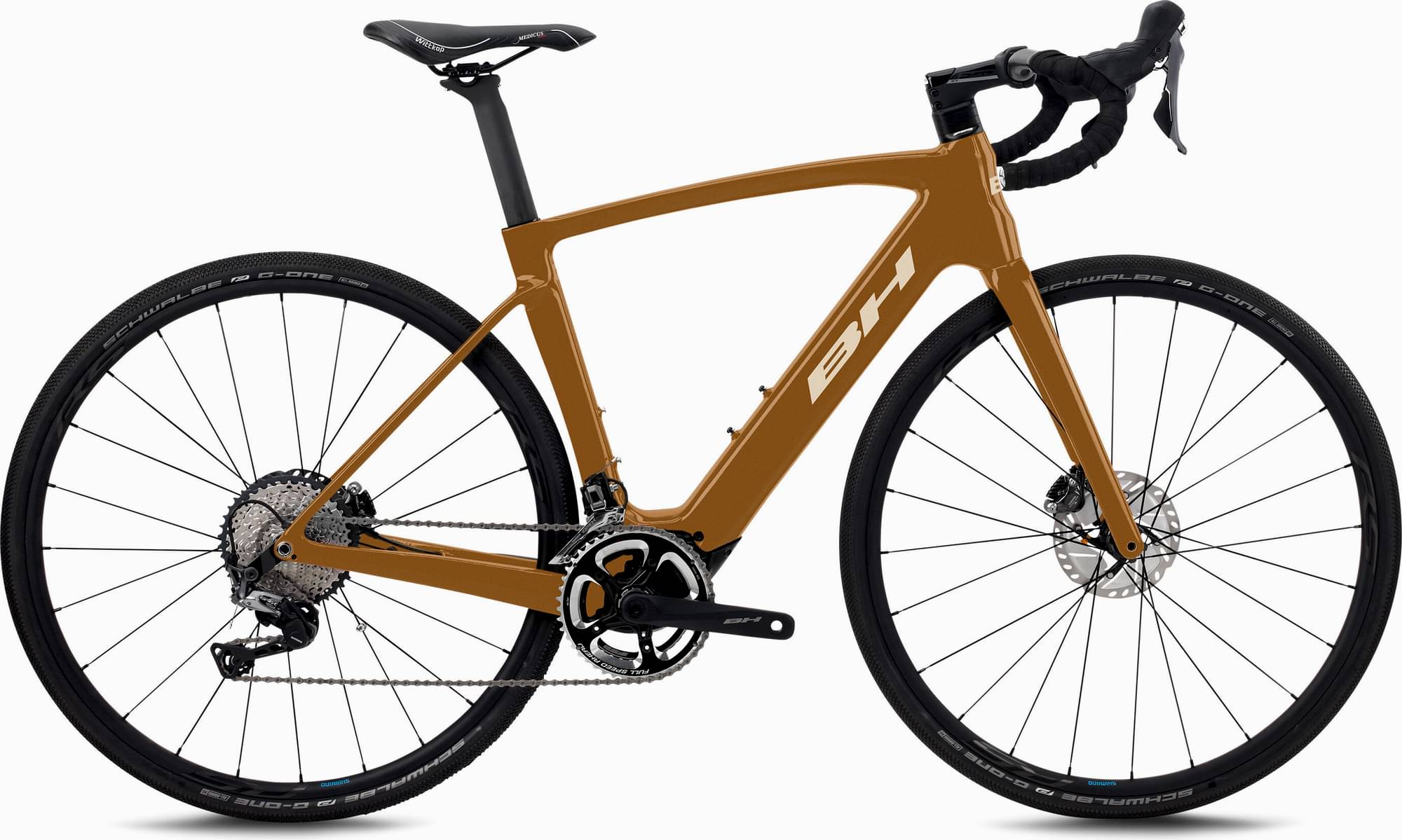

BH CORE GRAVELX CARBON 2.6 2023
2023 E-bike
Estimate price |
8,697$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800, FSA -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
SM
158cm - 170cm
MD
168cm - 179cm
MD
168cm - 179cm
LG
176cm - 187cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components

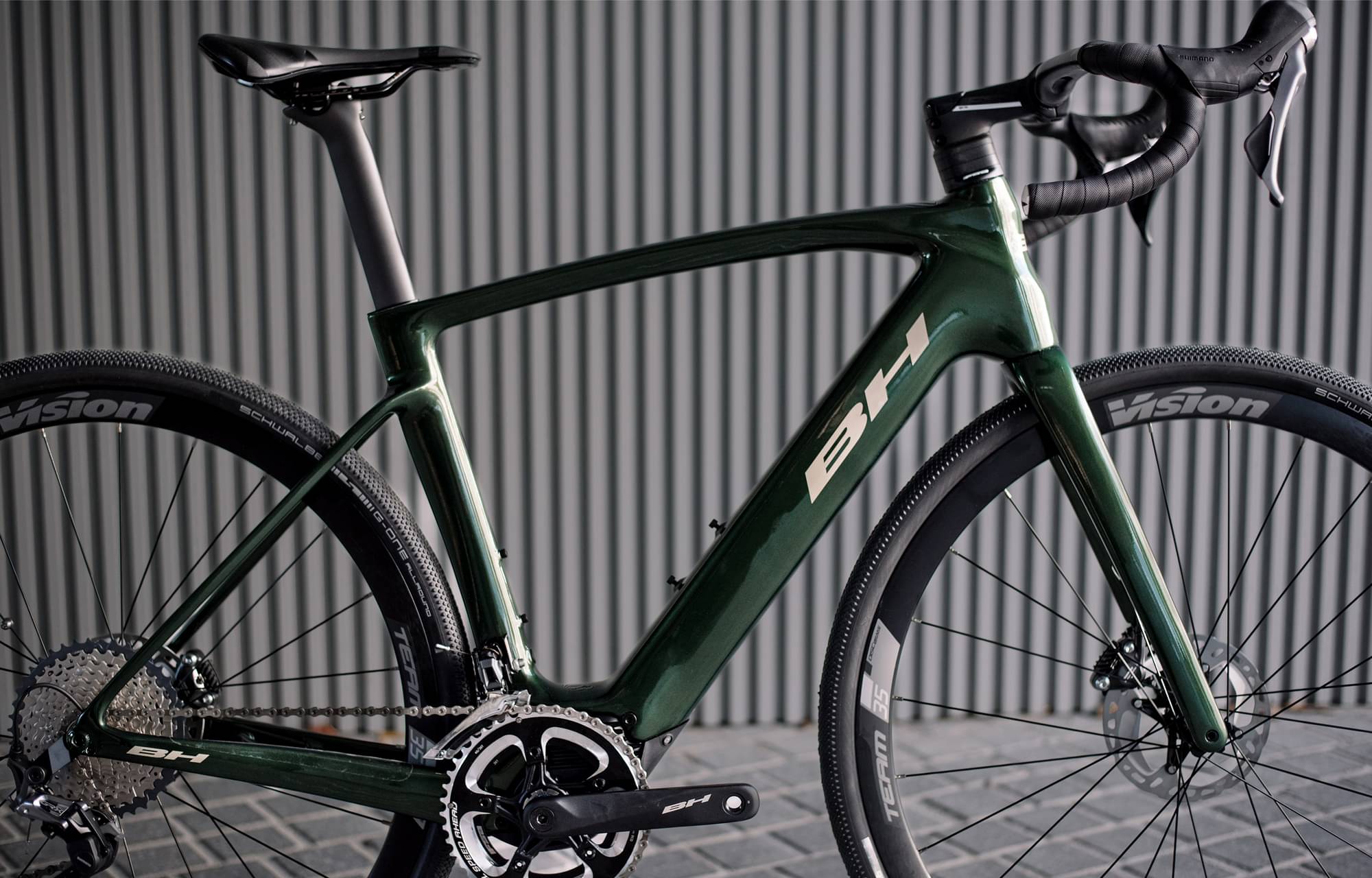

Frame
Frame
Gravel Carbon, internal cable routing
Suspension Fork
BH Gravel Carbon ACR
Drivetrain
Rear Derailleur
Shimano GRX 24sp
Front Derailleur
Shimano GRX
Shift Levers
Shimano GRX
Cassette
Shimano HG71 12sp (11-36T)
Crank
FSA 46/36T, X, Crank set, FSA 46/36T, SM 170mm, MD 172mm, LA 175mm
Chain
Shimano CNM6100
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
FSA Team 35 TR
Spokes
Stainless Steel

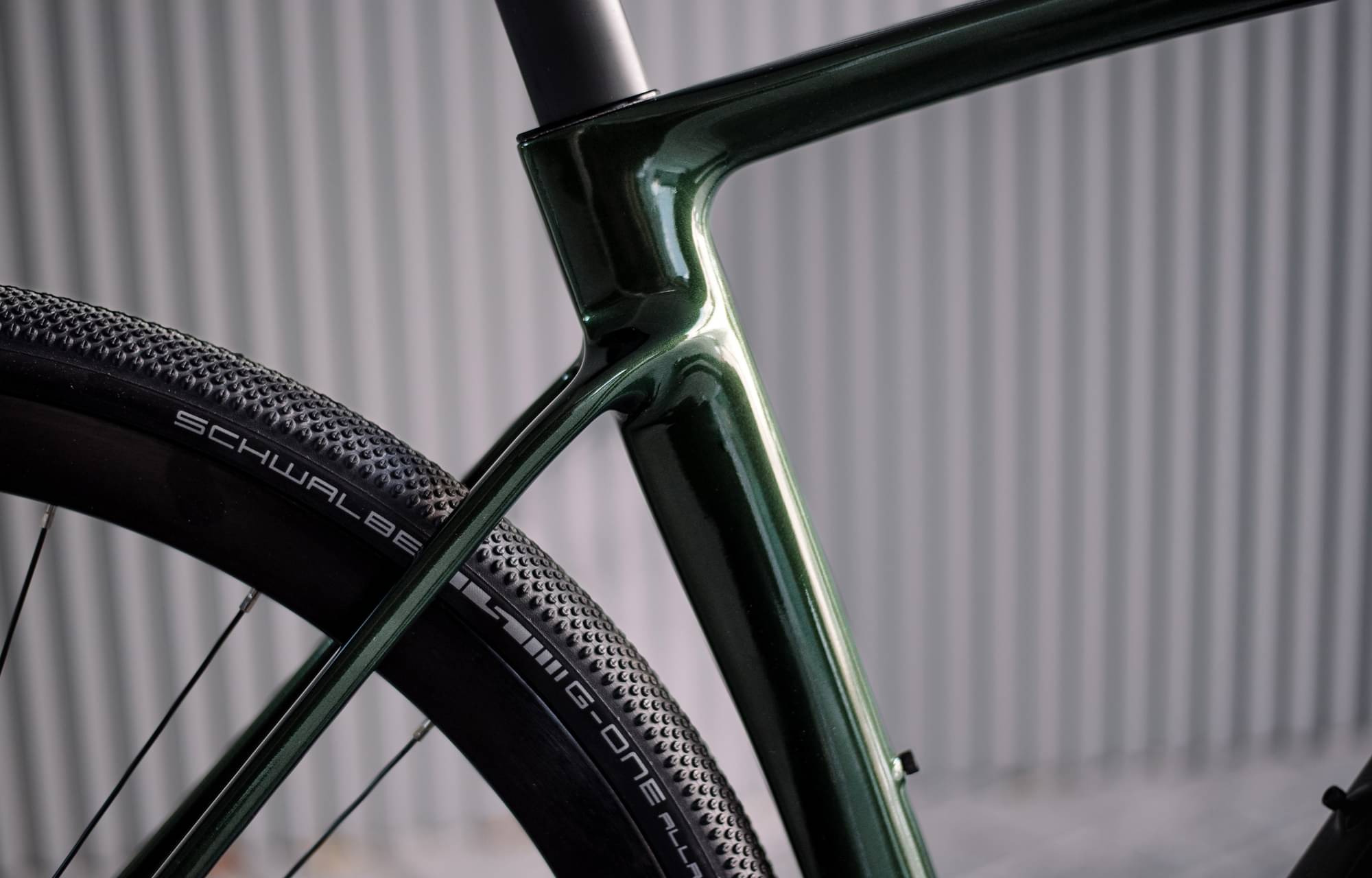

Tires
Schwalbe G-One 700X35
Brakes
Brakes
Front: Shimano GRX 160mm, Rear: Shimano GRX 160mm
Cockpit

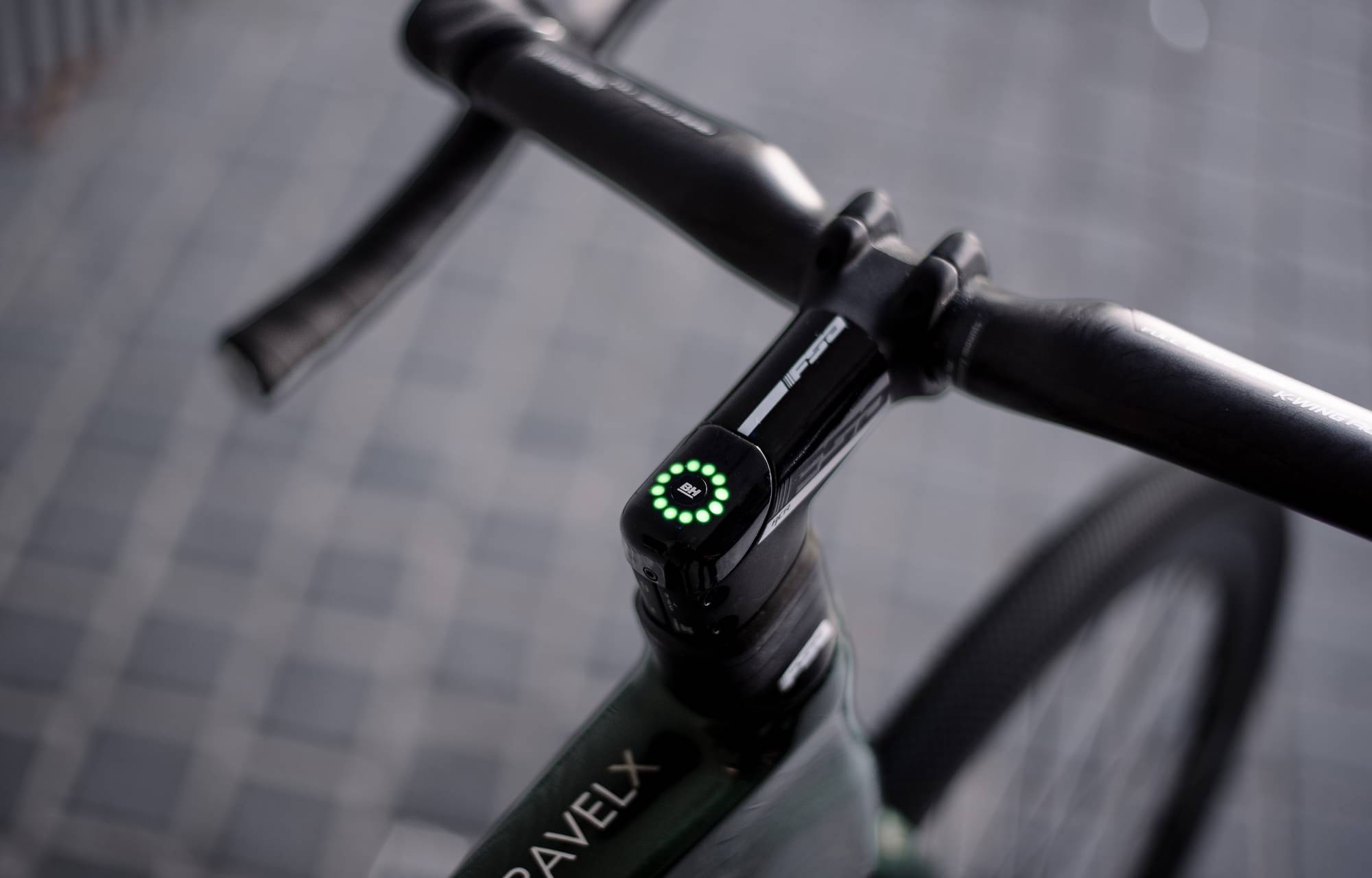

Stem
BH Lite Ahead, X, Stem, BH Lite Ahead, SM 80mm, MD 90mm, LA 100mm
Handlebar
FSA K-Wing AGX Carbon, X, Handlebar, FSA K-Wing AGX Carbon, SM 400mm, MD 420mm, LA 440mm
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Agx
Seatpost
BH Aero
Motor & Battery

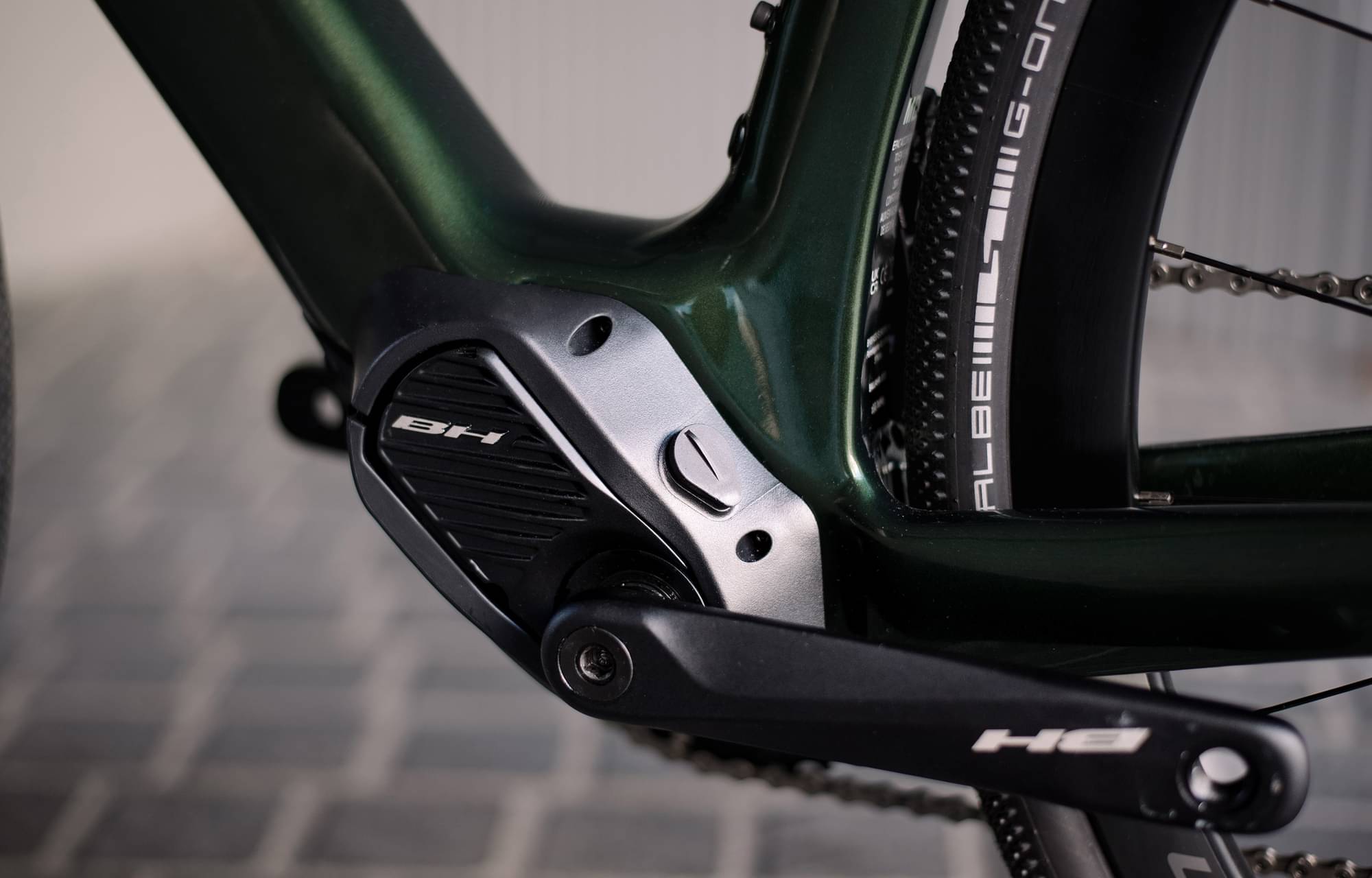

Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG |
|---|---|---|---|---|---|---|
| Top Tube Length | 537 mm | 539 mm | 557 mm | 559 mm | 577 mm | 579 mm |
| Seat Tube Angle | 73.8 ° | 74 ° | 72.8 ° | 73 ° | 72.8 ° | 73 ° |
| Seat Tube Length | 450 mm | 450 mm | 470 mm | 470 mm | 500 mm | 500 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 72.3 ° | 72.5 ° | 72.8 ° | 73 ° |
| Head Tube Length | 145 mm | 145 mm | 160 mm | 160 mm | 170 mm | 175 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 591 mm | 590 mm | 596 mm | 595 mm | 607 mm | 606 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 176 cm | 176 cm |
| Rider Max Height | 170 cm | 170 cm | 179 cm | 179 cm | 187 cm | 187 cm |
About this model
CORE GRAVELX CARBON 2.6 is part of the Bh E Core model. BH launched 33 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH CORE CITY WAVE 2023 is the most affordable e-bike of this model and has a price of 3283$. On the other hand, BH CORE RACE CARBON 1.6 2023, is the most expensive and costs 9608$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel e-bikes
If you want to purchase a solid Gravel e-bike, it is important to know that the average cost is 3642$. However, you could also get a good Gravel e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2023 and its price was 7905$. Comparing this to the average Gravel e-bike price, we see that the price is 117.05% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components

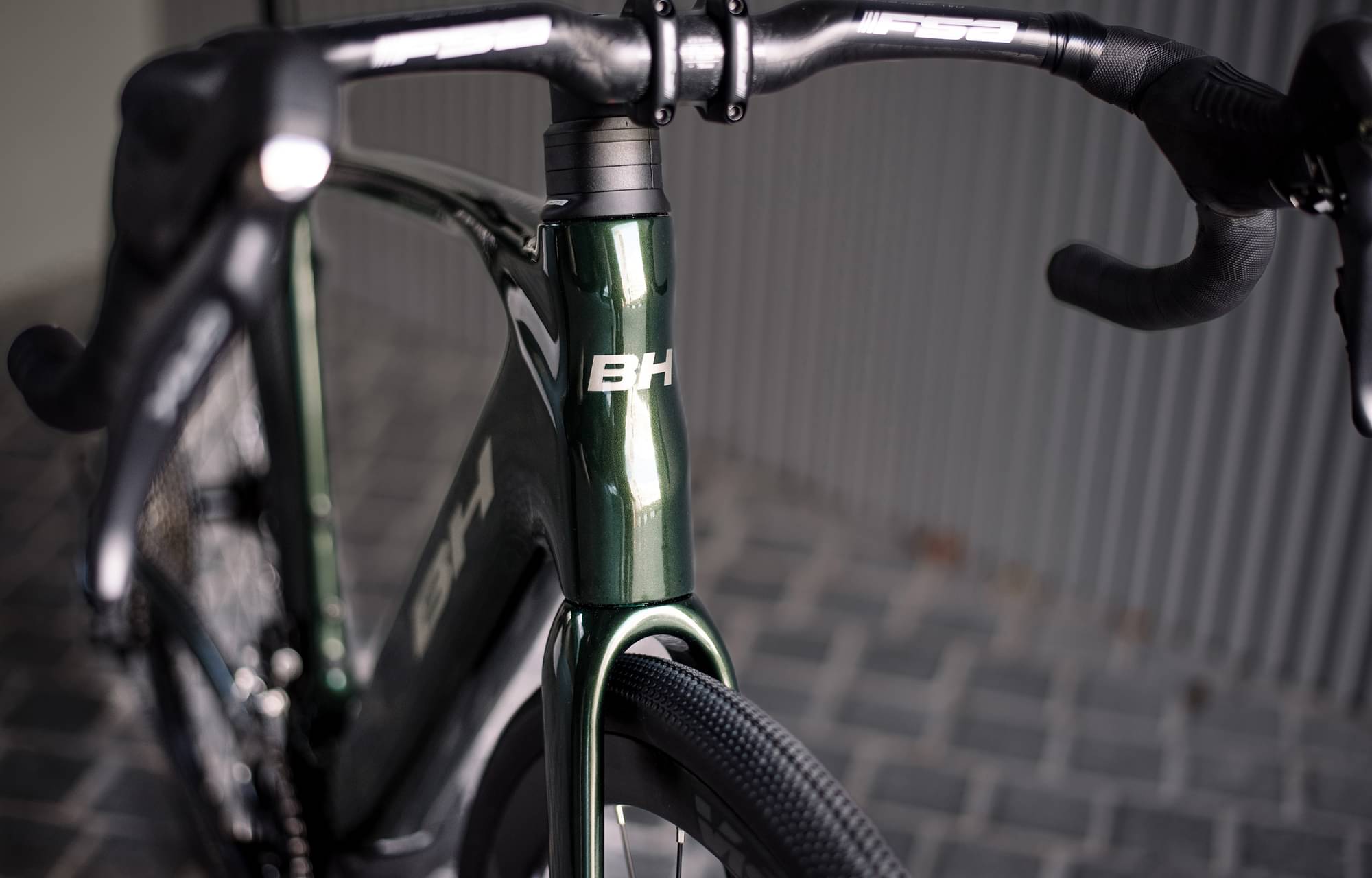

Fork material
CORE GRAVELX CARBON 2.6 has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the CORE GRAVELX CARBON 2.6 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH CORE GRAVELX CARBON 2.6 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 6 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
