Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Deore, FSA -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Sport Hybrid Alloy 28" Internal Cable Routing
Suspension Fork
BH Lifestyle Alu
Drivetrain

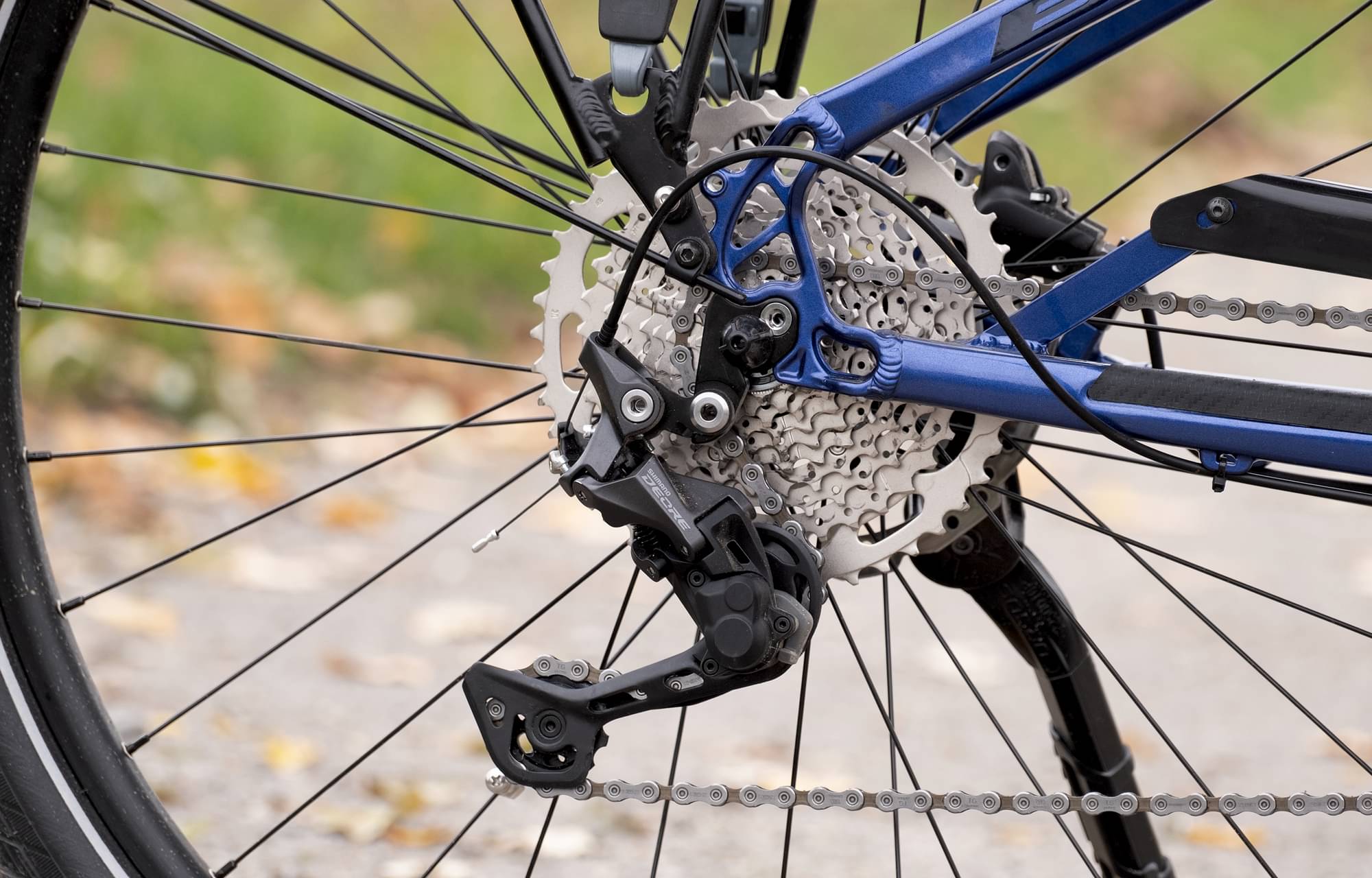

Rear Derailleur
Shimano Deore 10sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM4100 10sp (11-46T)
Crank
FSA 38T-170mm
Bottom Bracket
-
Chain
Shimano HG54
Pedals
Antislip
Wheels
Front Hub
Shimano
Rear Hub
Shimano
Rims
Alloy Double Wall
Spokes
Stainless Steel
Tires
Schwalbe Marathon Perf 40-622

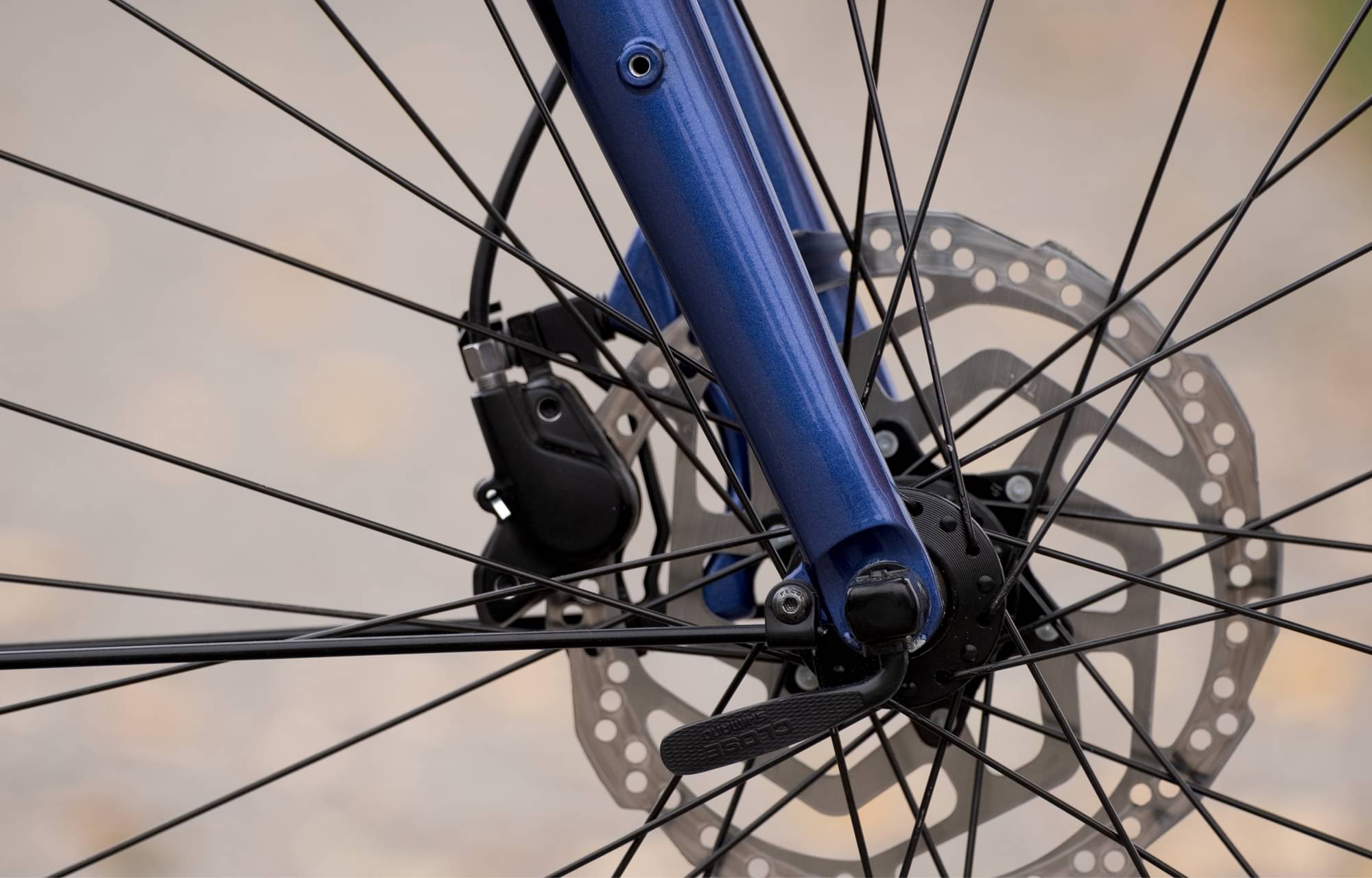

Brakes
Brakes
Front: Shimano MT200 180mm, Rear: Shimano MT200 180mm

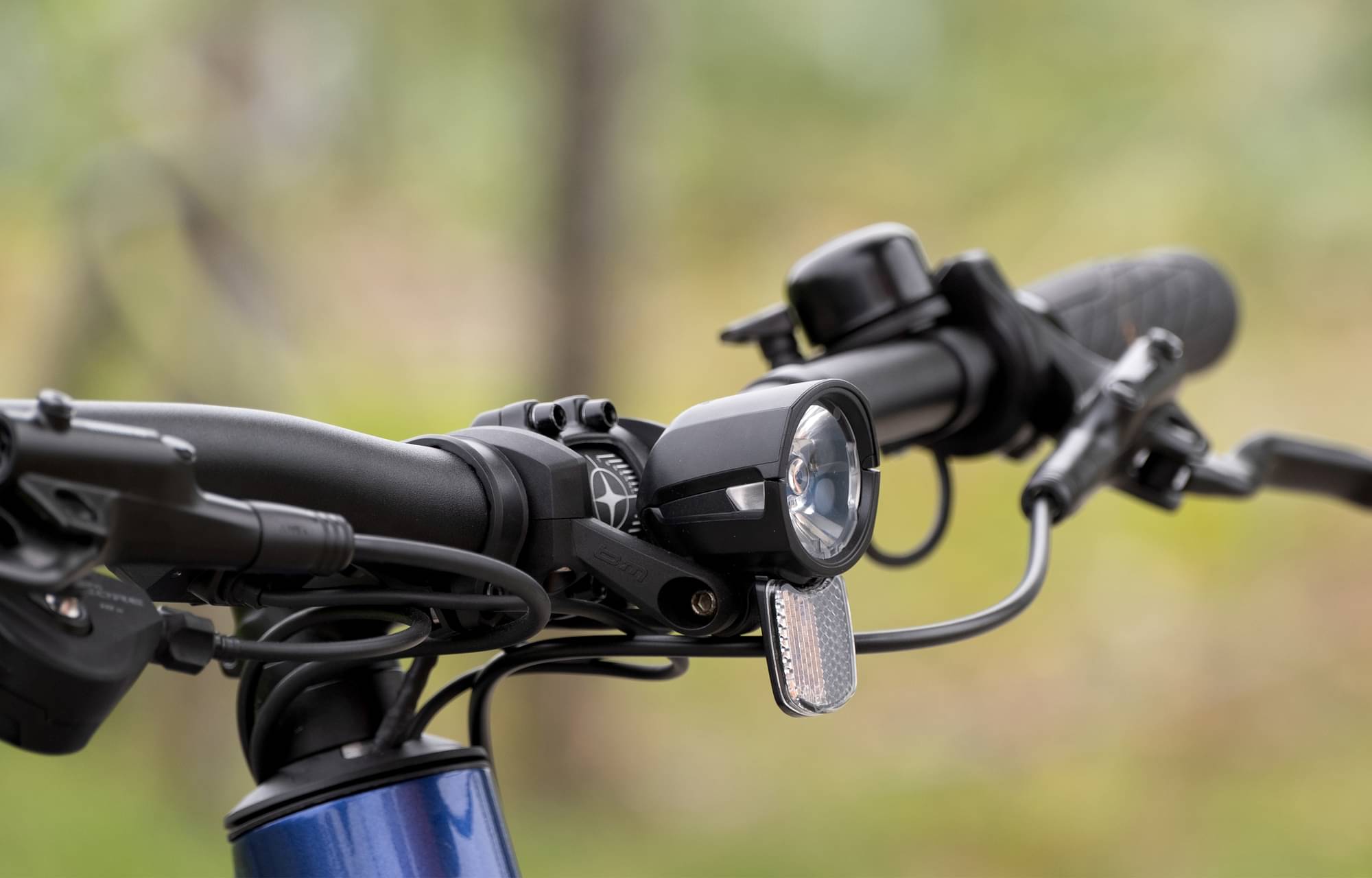

Cockpit
Stem
BH Ahead
Handlebar
BH MTB Alloy Riser 720mm
Grips
Ergon GP10
Headset
Acros AIF-544 ICR IPS
Seat
Saddle
Selle Royal Lift
Seatpost
Alloy 31,6
Motor & Battery

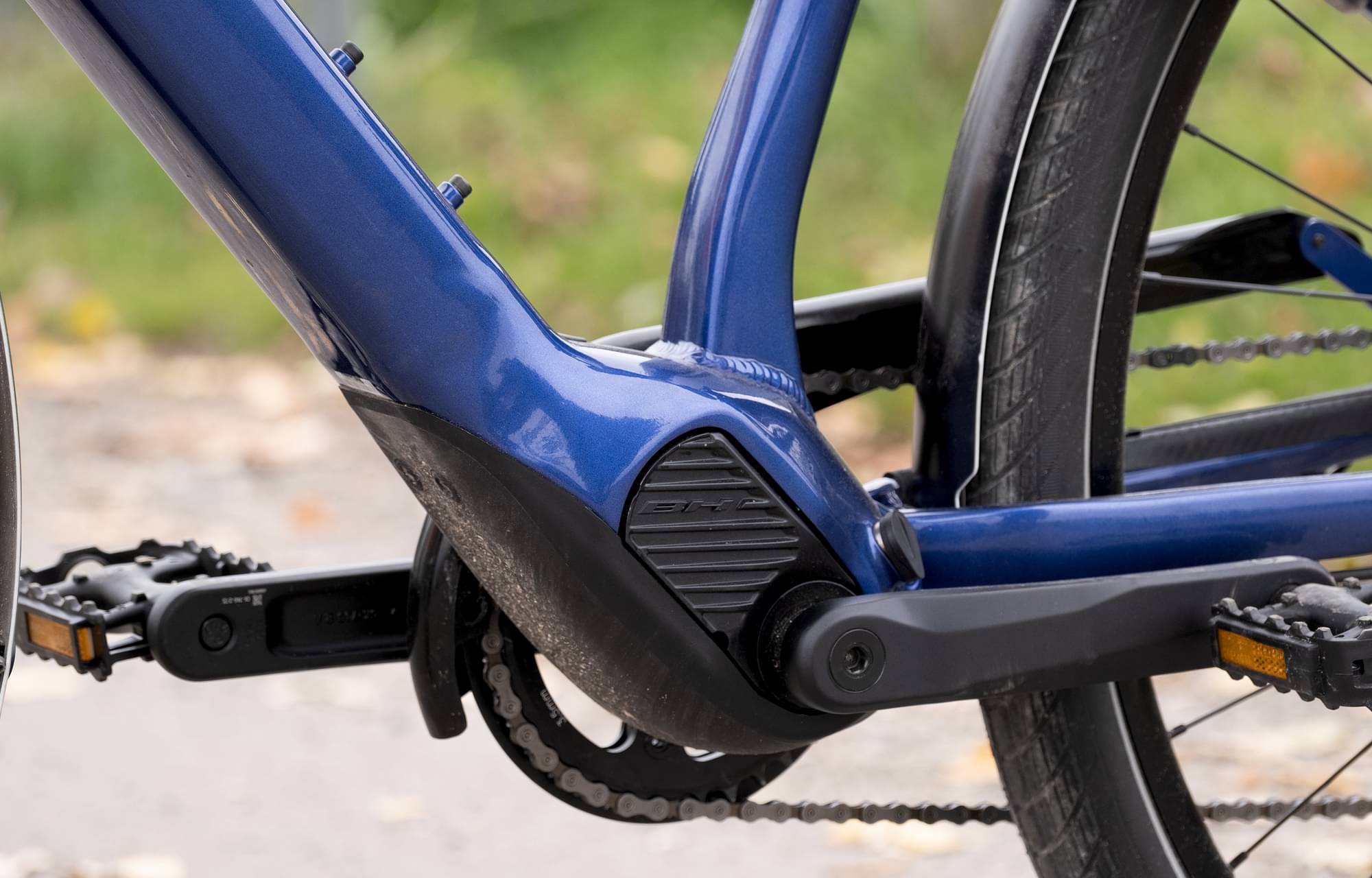

Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.311 mm | 1.226 mm | 1.216 mm |
| Bottom Bracket Height | 290 mm | 320 mm | 319 mm |
| Stack | 557 mm | 537 mm | 546 mm |
| Reach | 425 mm | 438 mm | 449 mm |
| Top Tube Length | 581 mm | 592 mm | 606 mm |
| Seat Tube Angle | 74.3 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 140 mm | 150 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 666 mm | 680 mm | 695 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
CORE JET is a Bh E Core model. 33 e-bikes variations carry this model name so far. Take a sneak peek at all Bh E Core e-bikes models from 2023, by clicking here.
Model range prices
BH CORE CITY WAVE 2023 is the most affordable e-bike of this model and has a price of 3283$. On the other hand, BH CORE RACE CARBON 1.6 2023, is the most expensive and costs 9608$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 3526$. If we compare this with the average Hybrid e-bike cost we notice that the price is 42.18% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork material
The fork is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
As for the wheels, BH CORE JET 2023, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
