Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Race Alloy 28" internal cable routing
Suspension Fork
BH Race Carbon ACR
Drivetrain
Rear Derailleur
Shimano Ultegra 11sp
Front Derailleur
Shimano 105
Shift Levers
Shimano 105
Cassette
Shimano Ultegra 11sp (11-34T)
Crank
FSA 50/34T
Bottom Bracket
-
Chain
Shimano HG70
Pedals
-
Wheels
Front Hub
FSA
Rear Hub
FSA
Rims
FSA Team 35 TR
Spokes
Stainless Steel
Tires
Hutchinson Nitro 2 700X28
Brakes
Brakes
Shimano 105 160mm
Cockpit
Stem
BH Lite Ahead
Handlebar
FSA Energy SCR Compact
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Stn
Seatpost
Lite Alloy 27,2
Motor & Battery
Motor
NR System
Battery
540Wh
Remote
BH Core Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.44 mm |
| Stack | 544 mm | 563 mm | 579 mm |
| Reach | 383 mm | 393 mm | 403 mm |
| Top Tube Length | 544 mm | 564 mm | 585 mm |
| Seat Tube Angle | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 510 mm |
| Head Tube Angle | 71.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 145 mm | 180 mm | 175 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm |
| Wheelbase | 593 mm | 599 mm | 609 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

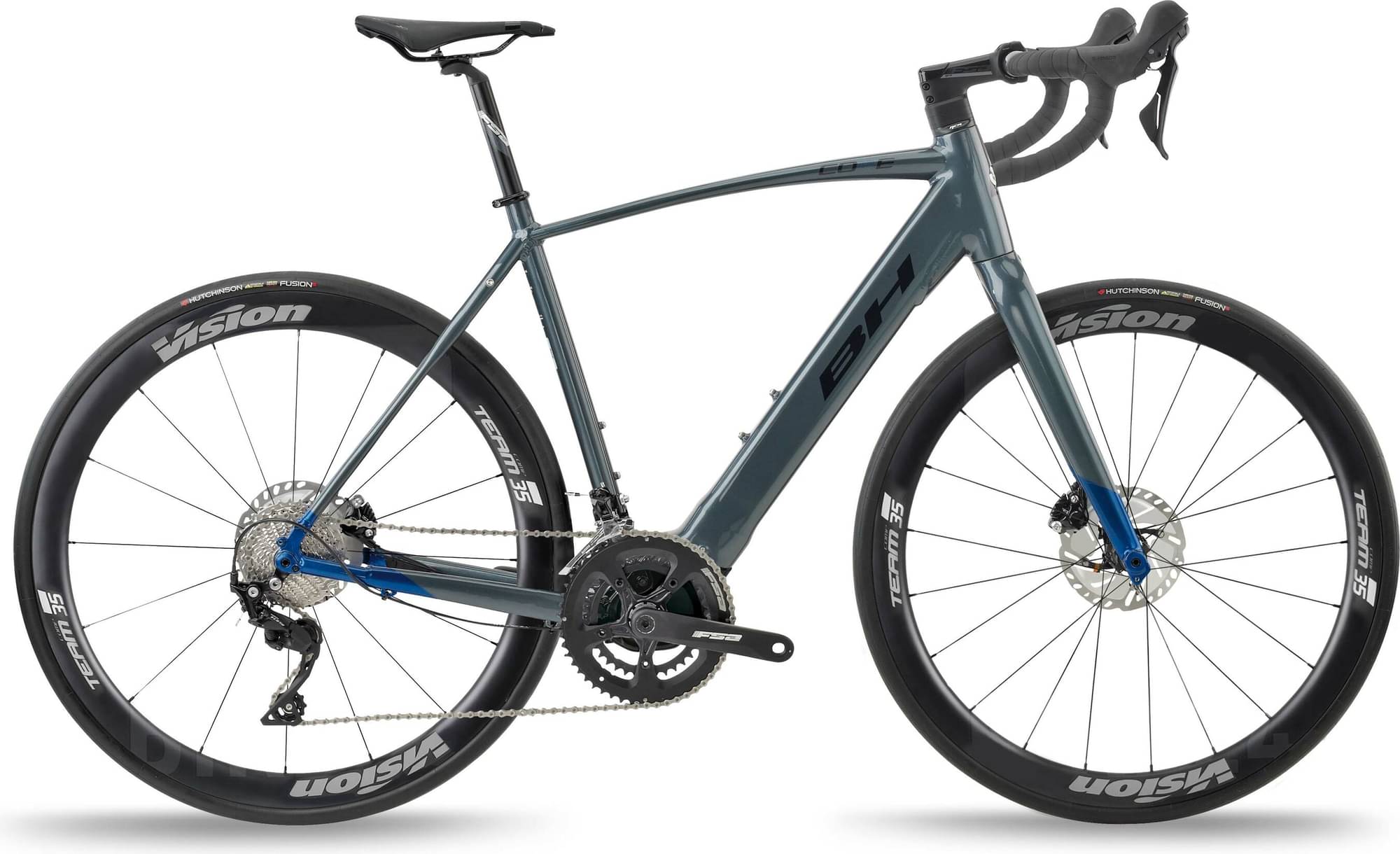

Model Overview
CORE RACE 1.4 is part of the Bh E Core model. There are 33 e-bikes that carry this model name. You can easily view all of the Bh E Core e-bikes models from 2021, here.
Model range prices
The most economical model, the BH CORE RACE 1.2 2021 has a starting price of 4499$. BH CORE GRAVELX 2.4 2021 on the other hand is the most expensive at 5473$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race e-bikes average price
If you want an acceptable Race e-bike you should know that the average price is 4156$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4864$. In conclusion, this e-bike price is 17.04% more expensive than the price of the average Race e-bike.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
CORE RACE 1.4 components
Fork material
The fork on this e-bike is made out of carbon, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When leaving the production line, the CORE RACE 1.4 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. BH CORE RACE 1.4 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
