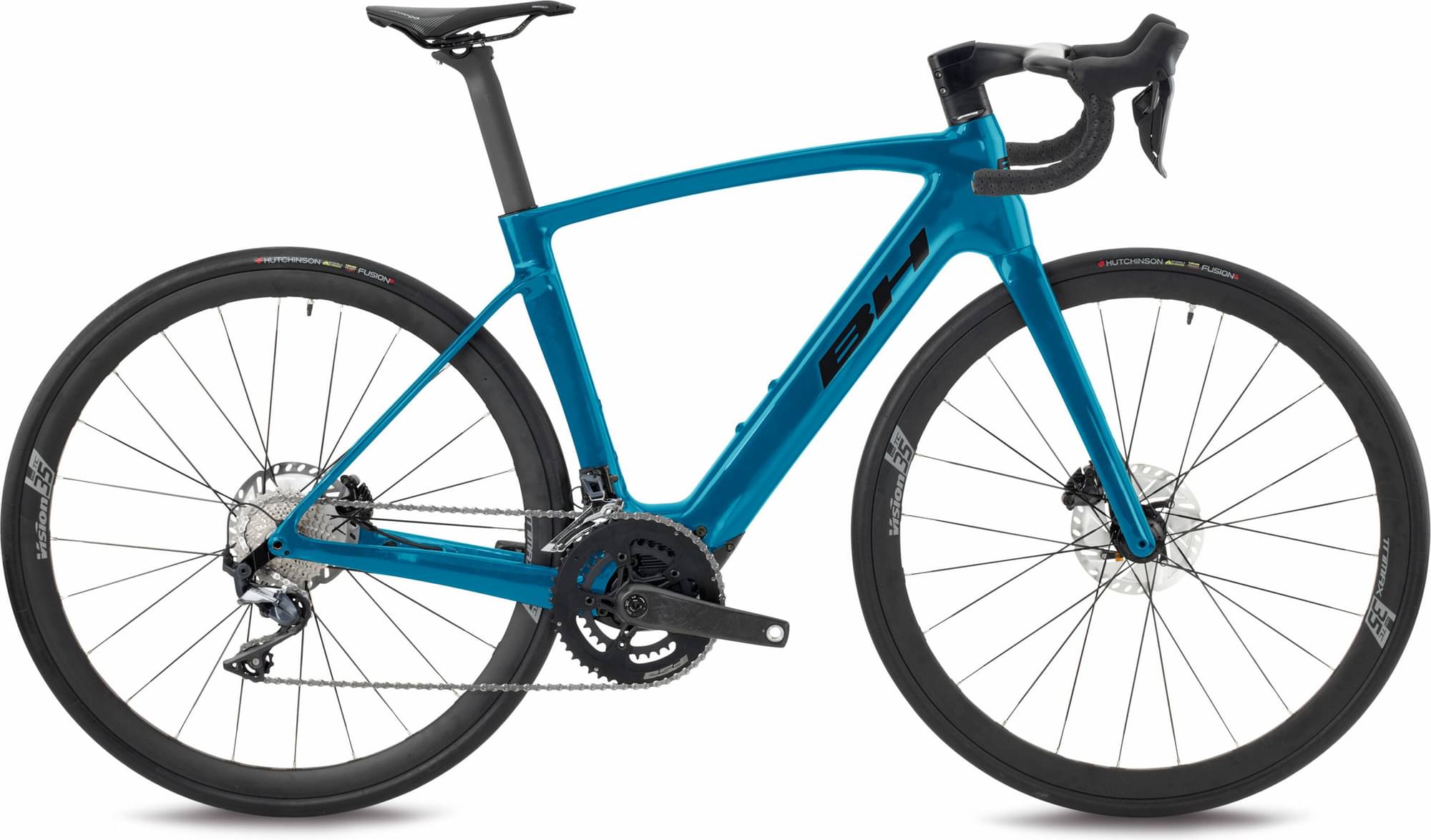

BH CORE RACE CARBON PRO 1.8 2022
2022 E-bike
Estimate price |
9,768$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, FSA -
Suspension Rigid -
Motor mid-drive -
Battery 540Wh -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Race Carbon 28" Internal Cable Routing, ACR Carbon Monocoque
Suspension Fork
BH Race Carbon ACR
Drivetrain
Rear Derailleur
Shimano Ultegra DI2 12sp
Front Derailleur
Shimano Ultegra DI2
Shift Levers
Shimano Ultegra DI2
Cassette
Shimano Ultegra 12sp (11-34T)
Crank
FSA Carbon 52/36T
Bottom Bracket
-
Chain
Shimano HG12
Pedals
-
Wheels
Front Hub
FSA
Rear Hub
FSA
Rims
FSA Trimax 35 TR
Spokes
Stainless Steel
Tires
Hutchinson Fusion 5 700X28
Brakes
Brakes
Shimano Ultegra 160mm
Cockpit
Stem
BH Aero ACR
Handlebar
BH Aero ACR
Grips
Bar Tape
Headset
FSA ACR
Seat
Saddle
Prologo Dimension Stn
Seatpost
BH Aero
Motor & Battery
Motor
NR System
Battery
540Wh
Remote
BH Core Display
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.43 mm | 1.44 mm |
| Stack | 541 mm | 559 mm | 575 mm |
| Reach | 380 mm | 390 mm | 400 mm |
| Top Tube Length | 539 mm | 559 mm | 579 mm |
| Seat Tube Angle | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 470 mm | 500 mm |
| Head Tube Angle | 71 ° | 72.5 ° | 73 ° |
| Head Tube Length | 145 mm | 160 mm | 170 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 590 mm | 595 mm | 606 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CORE RACE CARBON PRO 1.8 completes the Bh E Core model. 33 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
BH CORE CITY WAVE 2022 is the most economical model, with a starting price of 3283$. BH CORE RACE CARBON PRO 1.8 2022 on the other hand costs 8878$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race e-bikes
According to our math, the average price for a trustworthy Race e-bike is 4156$. However, even though the average price of a Race e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2022 and its price was 8878$. If we compare this with the average Race e-bike cost we notice that the price is 113.62% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the CORE RACE CARBON PRO 1.8 e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. BH CORE RACE CARBON PRO 1.8 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
