Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour RAIDON
-
Groupset Deore, Shimano -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
SR Suntour Raidon RLR, remote lockout
Rear Shock
None
Drivetrain
Rear Derailleur
Shimano Deore M6100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
Shimano MT510, 175mm length
Bottom Bracket
Shimano, threaded
Chain
Shimano Deore M6100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
BH Lite wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH Lite wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH Lite wheelset
Spokes
BH Lite wheelset
Tires
Continental CrossKing, 29" x 2.2"
Brakes
Brakes
Shimano MT201, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano MT201
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH Lite Flat, 780mm width, 31.8mm clamp diameter
Grips
BH, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
BH
Seatpost
BH Lite, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.55 mm | 1.46 mm | 1.44 mm | 1.41 mm |
| Stack | 626 mm | 625 mm | 625 mm | 634 mm | 653 mm |
| Reach | 393 mm | 403 mm | 429 mm | 441 mm | 462 mm |
| Top Tube Length | 581 mm | 586 mm | 613 mm | 628 mm | 654 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 355 mm | 400 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 90 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 446 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1100 mm | 1097 mm | 1127 mm | 1142 mm | 1170 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

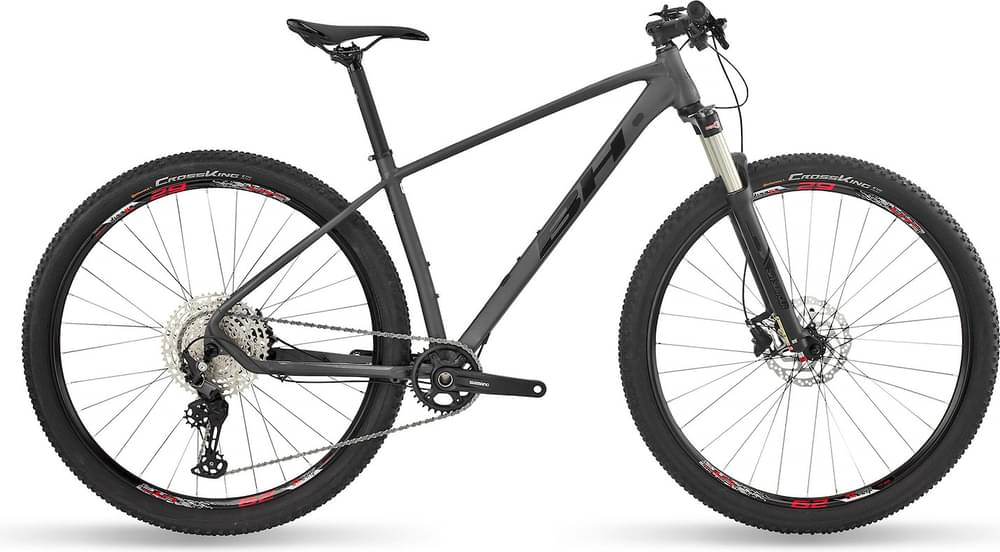

About this model
Expert 4.0 is a Bh Expert model. BH released 42 bikes variations of this model so far. Take a sneak peek at all Bh Expert bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The Expert 4.0 comes factory-installed with the SunTour RAIDON fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, BH Expert 4.0 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. BH Expert 4.0 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
