Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX Di2, FSA -
Suspension Rigid -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel X Carbon Monocoque
Suspension Fork
Gravel X Evo Carbon 1.5
Drivetrain
Rear Derailleur
Shimano GRX DI2 11sp
Shift Levers
Shimano GRX DI2
Cassette
Shimano SLX 11/42
Crank
FSA Omega Mono 40T
Chain
FSA TH-CN1102
Wheels
Rims
Vision Team TC30 Disc
Tires
Hutchinson Touareg Tan 700x40
Brakes
Brakes
Front: Shimano GRX hydra, Rear: Shimano GRX hydra
Cockpit
Stem
BH SL
Handlebar
BH Lite Gravel
Headset
BH SL integrated sealed bearing
Seat
Saddle
Prologo AGX
Seatpost
BH Lite Gravel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Top Tube Length | 525.4 mm | 545.8 mm | 565 mm | 584.7 mm |
| Seat Tube Angle | 73.75 ° | 73 ° | 72.75 ° | 72.5 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
GRAVELX 4.0 is part of the Bh Gravelx model. BH launched 18 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH GRAVELX ALU 1.0 2023 is the most affordable bike of this model and has a price of 2188$. On the other hand, BH GRAVELX 4.5 2023, is the most expensive and costs 7662$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, BH GRAVELX 4.0 price was 5351$. Comparing the average cost of a Gravel bike to this one, you will see that GRAVELX 4.0 price is 117.34% higher.
Overview of components
Fork material

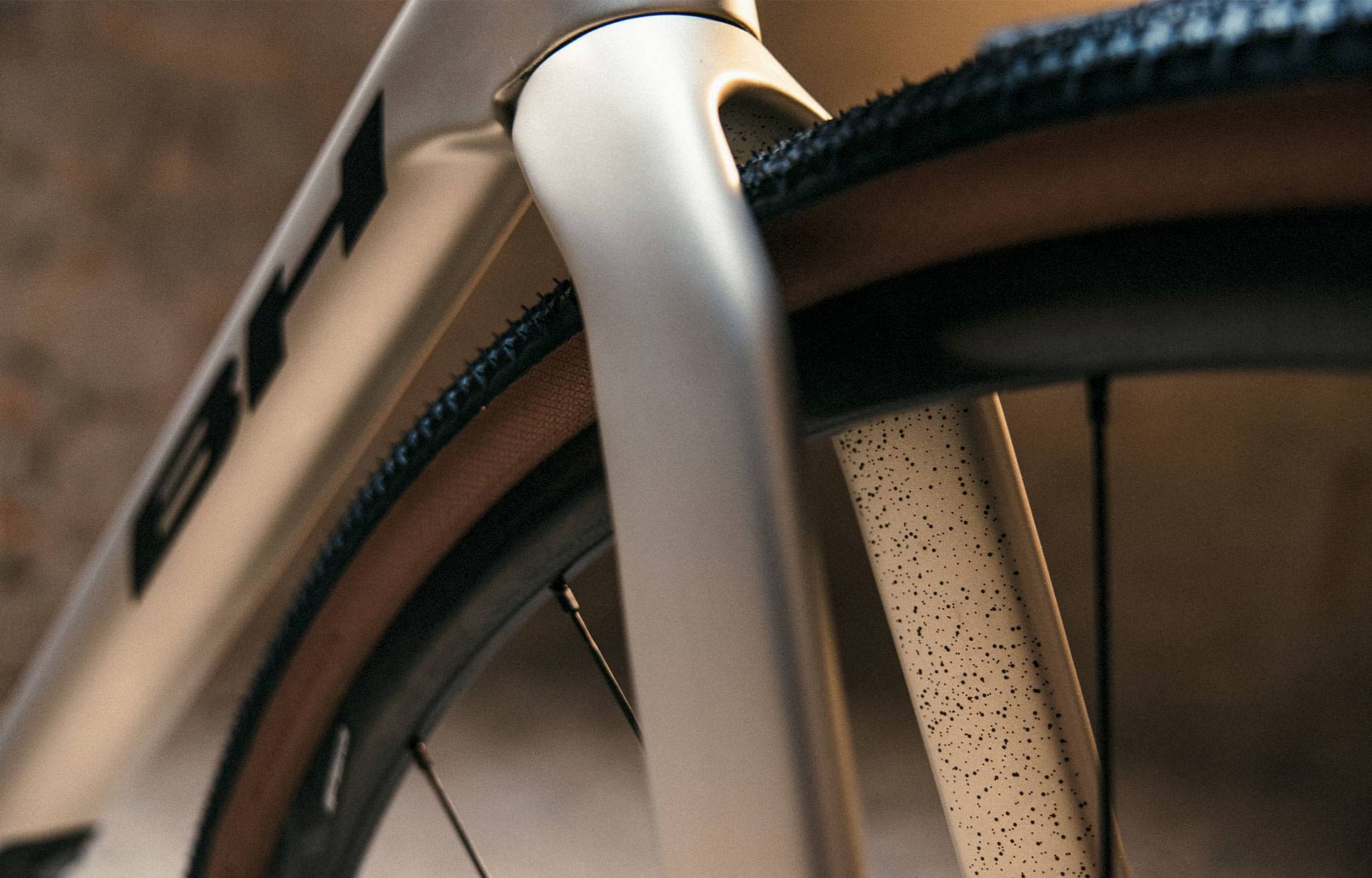

The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on GRAVELX 4.0 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The GRAVELX 4.0 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
