Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 800 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Gravel X Carbon Monocoque
Suspension Fork
Gravel X Evo Carbon 1.5
Drivetrain
Rear Derailleur
Shimano GRX 810 11sp
Front Derailleur
Shimano GRX 810
Shift Levers
Shimano GRX 810 hydra
Cassette
Shimano 105 11/34
Crank
Shimano GRX 46/30
Chain
FSA TH-CN1102
Wheels
Rims
Shimano RS171 Disc
Tires
Hutchinson Touareg Tan 700x40
Brakes
Brakes
Shimano GRX hydra
Cockpit
Stem
BH SL
Handlebar
BH Lite Gravel
Headset
BH SL integrated sealed bearing
Seat
Saddle
Prologo AGX
Seatpost
BH Lite Gravel
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.46 mm | 1.49 mm | 1.51 mm |
| Stack | 509.5 mm | 538.7 mm | 567.7 mm | 596.1 mm |
| Reach | 358 mm | 369.9 mm | 382 mm | 394.1 mm |
| Top Tube Length | 521 mm | 542 mm | 563 mm | 584 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 69.5 ° | 71.1 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 100 mm | 125 mm | 150 mm | 180 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

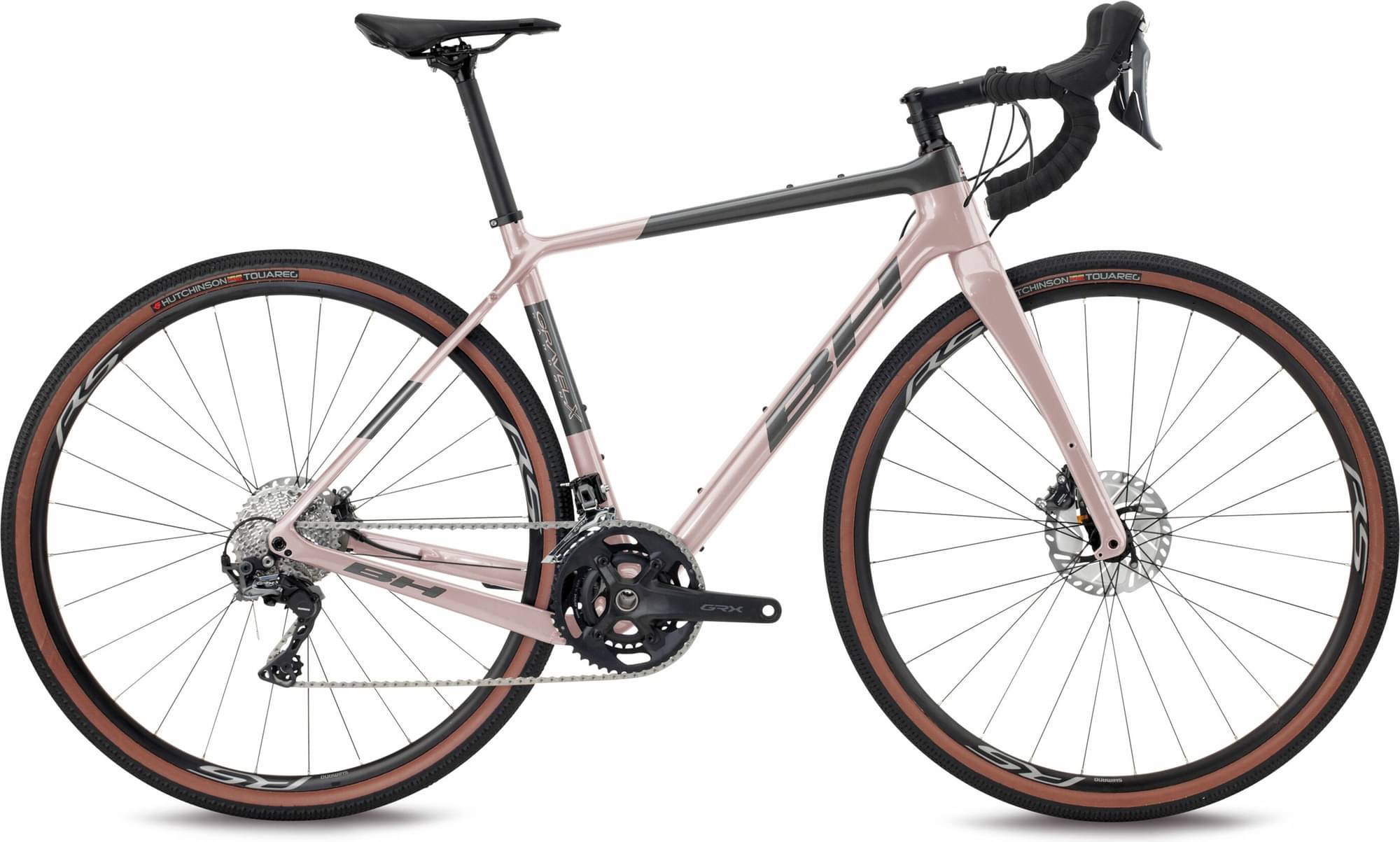

GRAVELX EVO 3.5 belongs to the Bh Gravelx model. 18 bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
BH GRAVELX ALU 1.0 2022 is the most affordable bike of this model and has a price of 2006$. On the other hand, BH GRAVELX EVO 4.5 2022, is the most expensive and costs 7054$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 3770$. Comparing the average cost of a Gravel bike to this one, you will see that GRAVELX EVO 3.5 price is 53.13% higher.
GRAVELX EVO 3.5 components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The GRAVELX EVO 3.5 2022 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
