Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Performance Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
120 mm FS Carbon 29",EC Layup, internal cable routing
Suspension Fork
FOX 34 FLOAT Performance 120mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)
Crank
FSA 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Ardent/Ikon TPI120 MaxxSpeed EXO TR 29X2,2
Brakes
Brakes
Front: SRAM DB8 4 Piston 200mm, Rear: SRAM DB8 4 Piston 200mm
Cockpit
Stem
BH Evo 31 Fit
Handlebar
BH MTB Lite Alloy Riser 780mm
Grips
Ergon GE10
Headset
Acros AIF-560 ICR BL.
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery

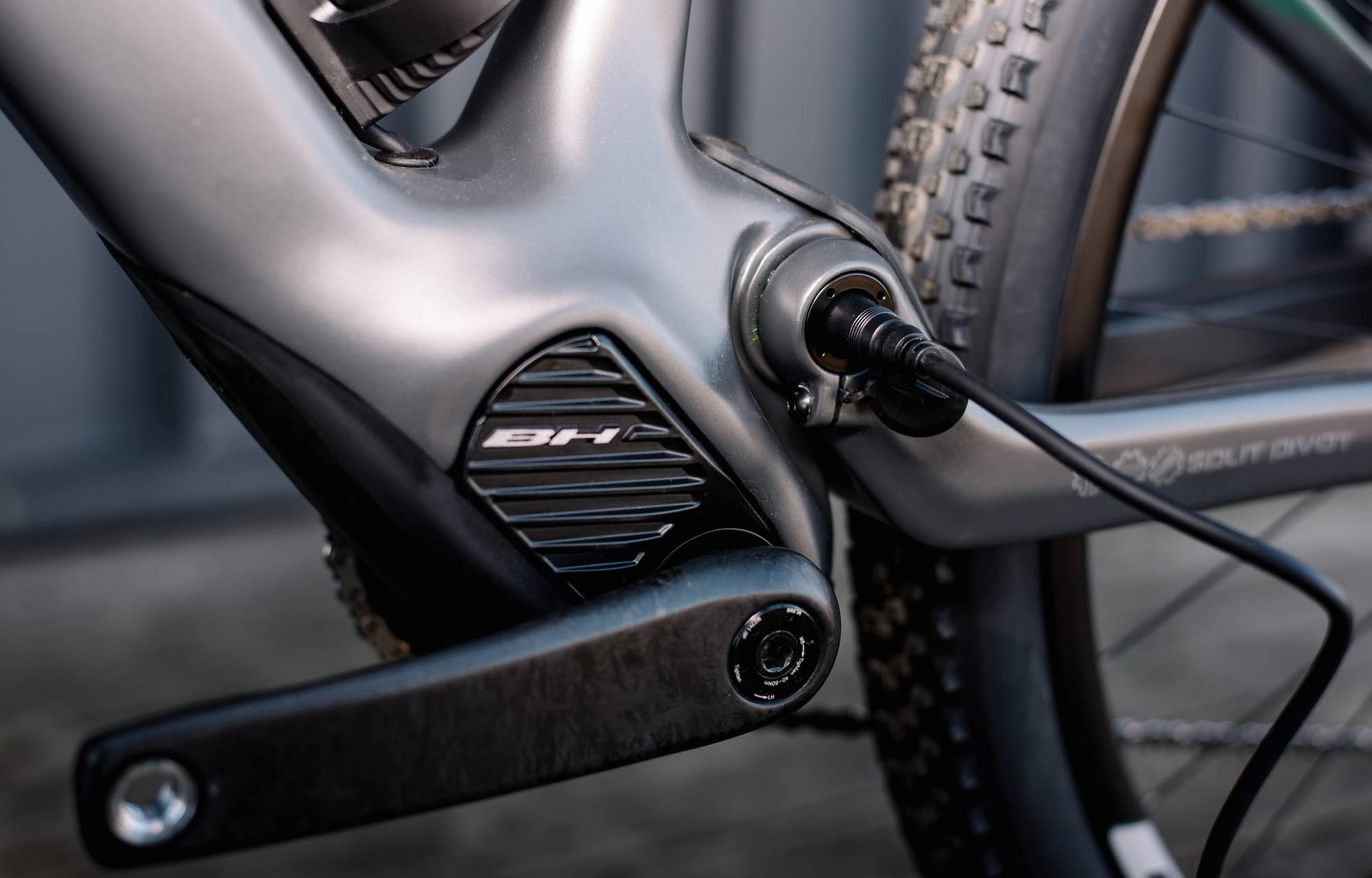

Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Top Tube Length | 573 mm | 595 mm | 615 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 686 mm | 709 mm | 730 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
iLYNX RACE 7.7 belongs to the Bh E Ilynx model. 30 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH iLYNX TRAIL 8.0 2023 is the most economical model, with a starting price of 6202$. BH iLYNX RACE CARBON PRO 7.9 2023 on the other hand costs 11311$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2023 for 8514$. Comparing this to the average Trail e-bike price, we see that the price is 153.02% higher.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
iLYNX RACE 7.7 components

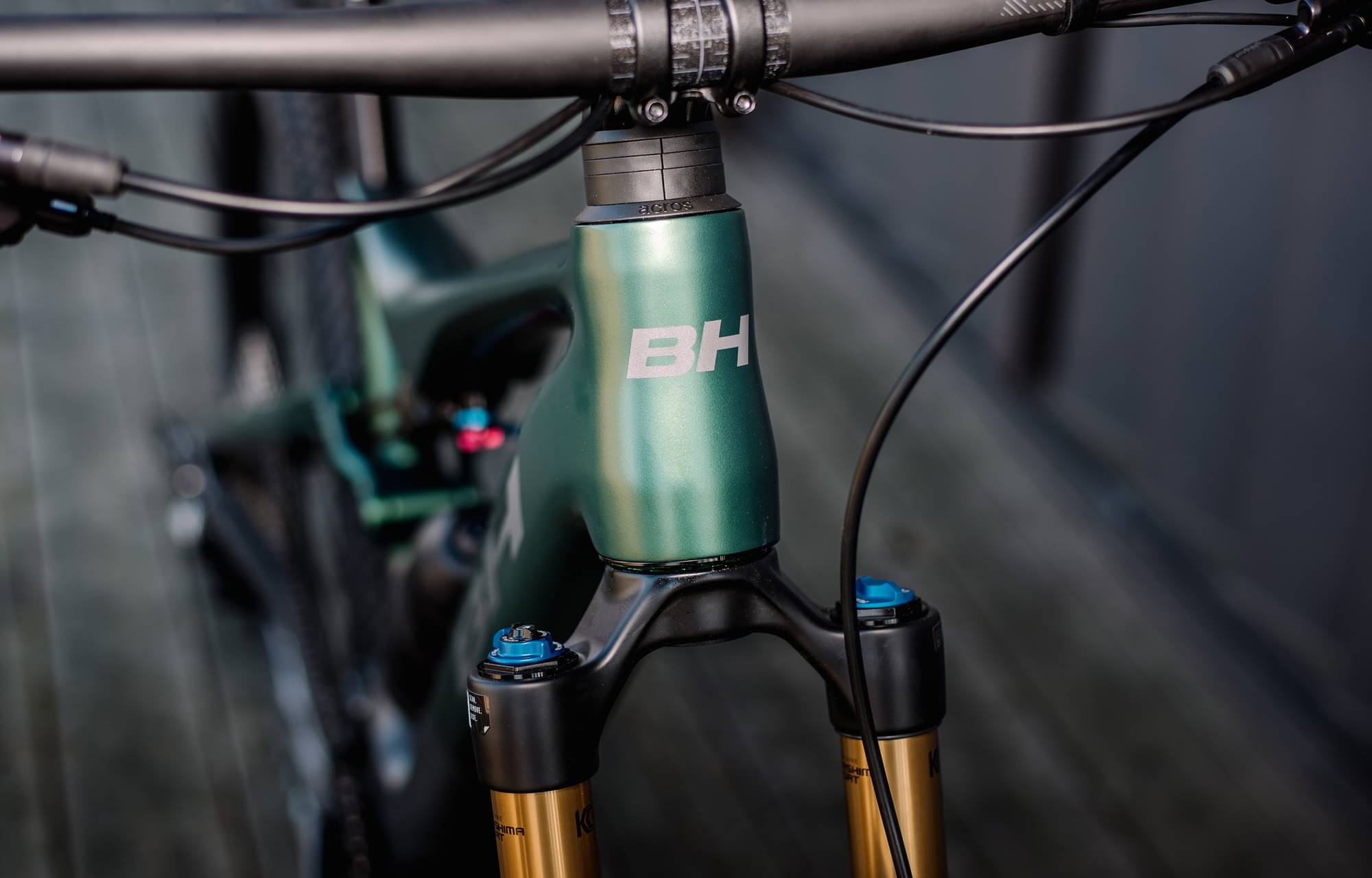

Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.

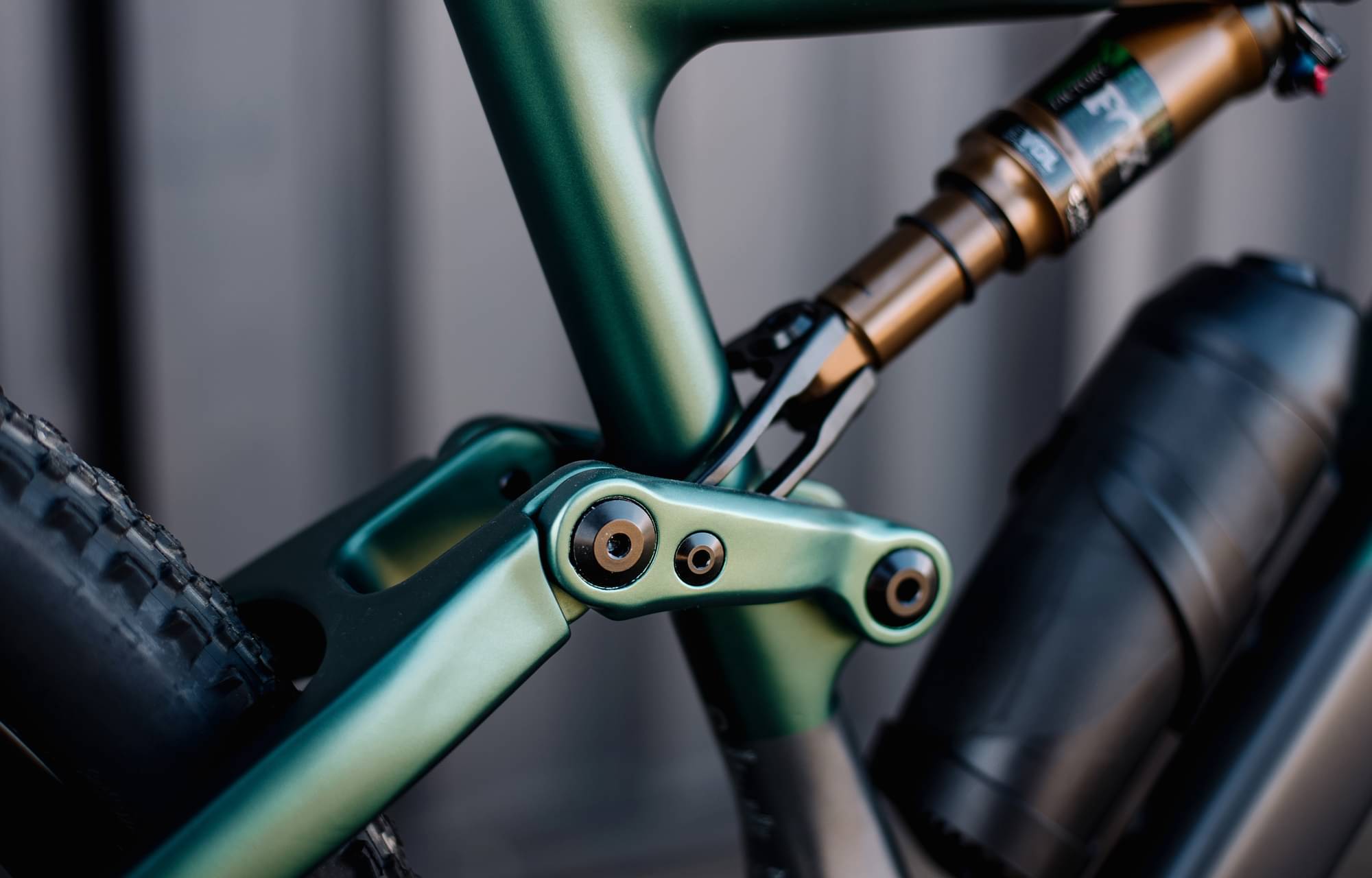

Rear Shock
BH iLYNX RACE 7.7 e-bike has the FOX FLOAT DPS Performance model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the iLYNX RACE 7.7 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The iLYNX RACE 7.7 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
iLYNX RACE 7.7 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
BH iLYNX RACE 7.7 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
