Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XT, FSA -
Suspension Full -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
120 mm FS Carbon 29",EC Layup, internal cable routing
Suspension Fork
FOX 34 FLOAT Factory SC 120mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Front Derailleur
-
Shift Levers
Shimano XT
Cassette
Shimano CSM8100 12sp (10-51T)
Crank
FSA 34T-165mm
Bottom Bracket
-
Chain
Shimano CNM6100
Pedals
-
Wheels
Front Hub
BH Evo
Rear Hub
BH Evo
Rims
BH Evo A30 Alu TR
Spokes
Stainless Steel
Tires
Maxxis Ardent/Ikon TPI120 MaxxSpeed EXO TR 29X2,2
Brakes
Brakes
Front: Shimano XT 4 Piston 180mm, Rear: Shimano XT 4 Piston 180mm
Cockpit
Stem
BH Evo 31 Fit
Handlebar
BH MTB SLite Alloy Riser 780mm
Grips
Ergon GE1-Factory
Headset
Acros AIF-560 ICR BL.
Seat
Saddle
Prologo Scratch M5 Stn
Seatpost
Bike Yoke Divine 31,6

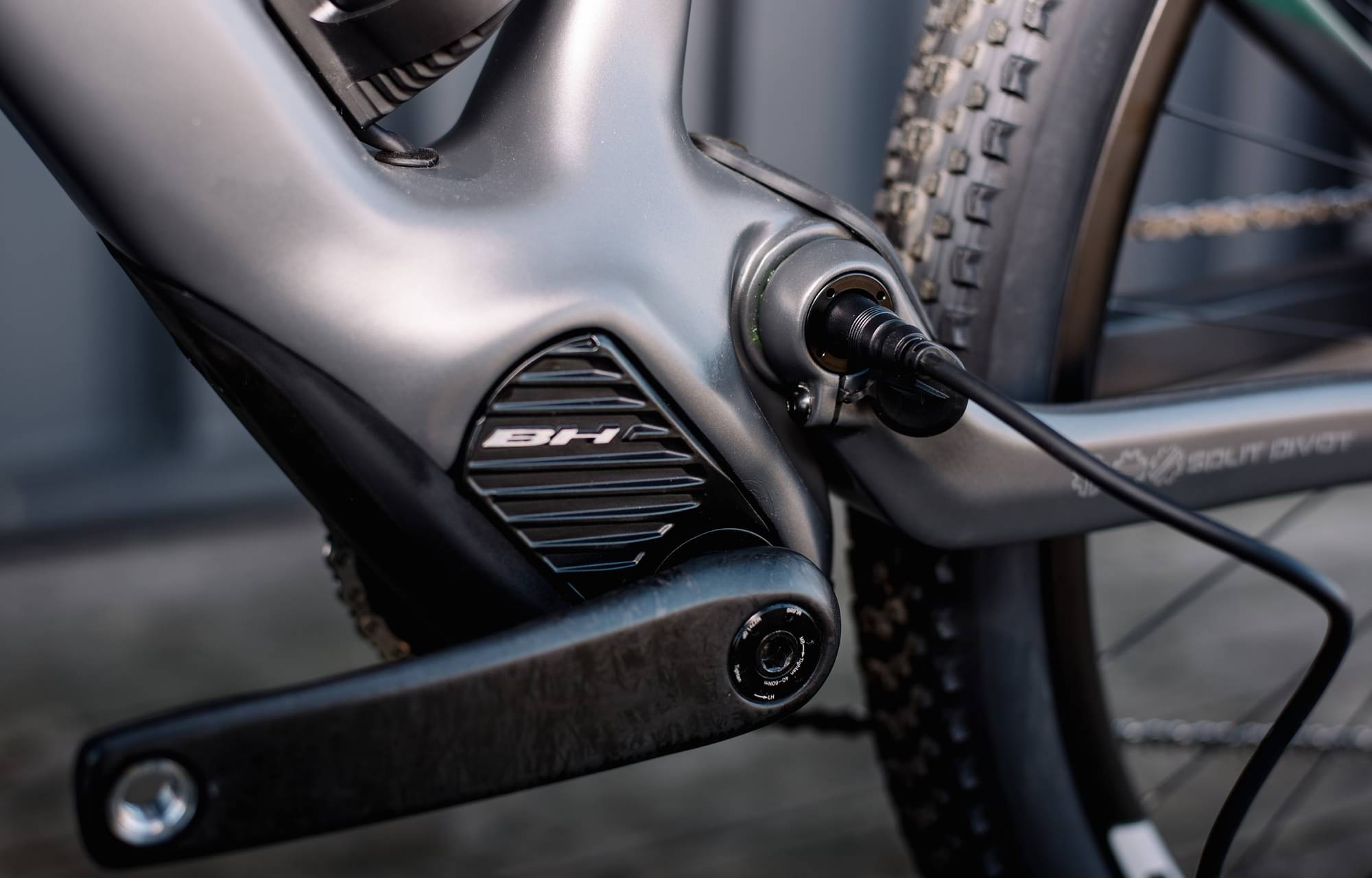

Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Bottom Bracket Height | 333 mm | 333 mm | 333 mm |
| Top Tube Length | 573 mm | 595 mm | 615 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheelbase | 686 mm | 709 mm | 730 mm |
| Bottom Bracket Drop | 41 mm | 41 mm | 41 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
iLYNX RACE 7.8 is part of the Bh E Ilynx model. 30 e-bikes variations carry this model name so far. You can easily view all of the Bh E Ilynx e-bikes models from 2023, here.
Model range prices
BH iLYNX TRAIL 8.0 2023 is the cheapest e-bike model and costs 6202$. BH iLYNX RACE CARBON PRO 7.9 2023 is the most expensive one and costs 11311$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 9487$. Comparing the average cost of a Trail e-bike to this one, you will see that iLYNX RACE 7.8 price is 181.93% higher.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
iLYNX RACE 7.8 components

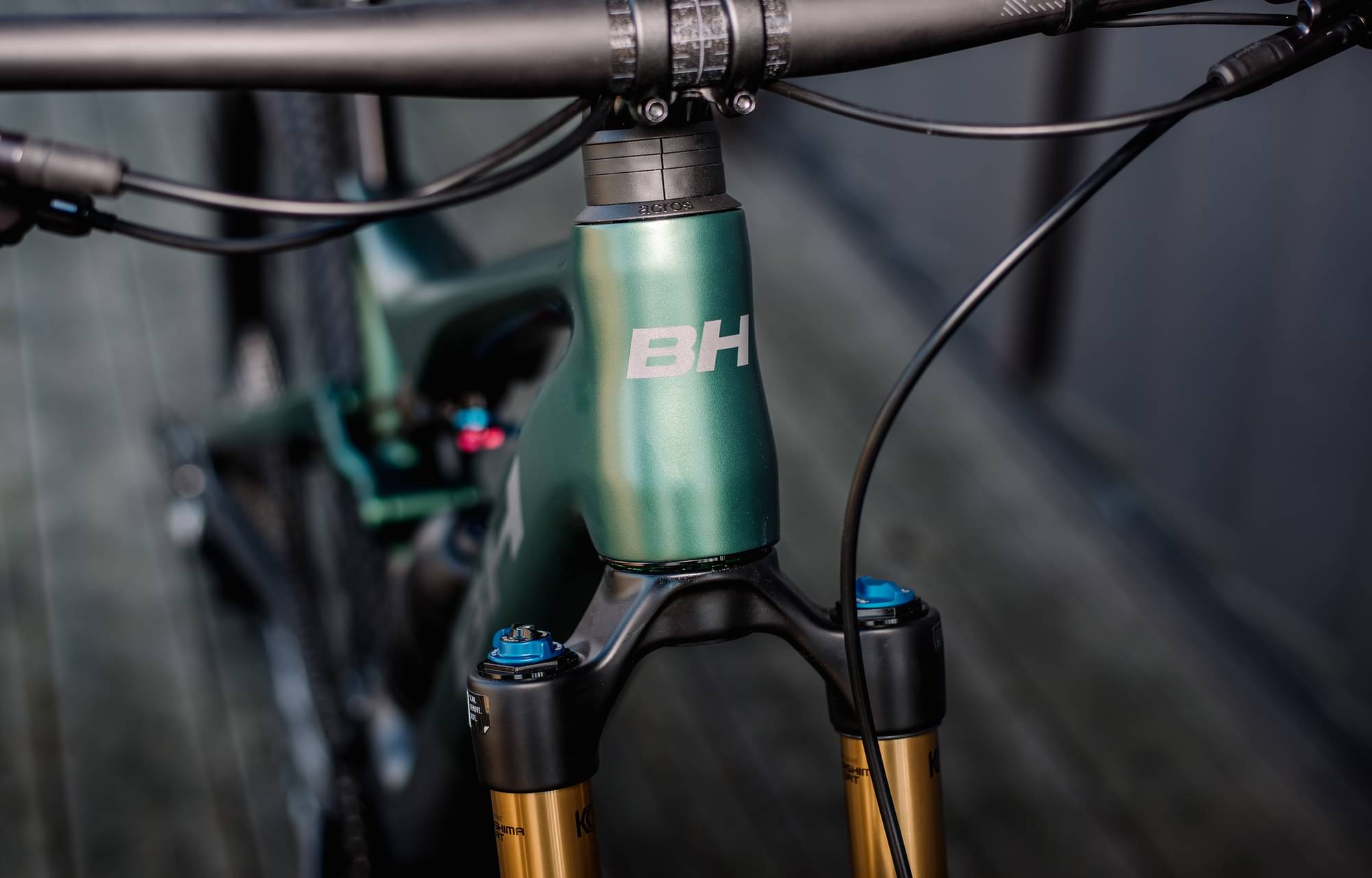

Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.

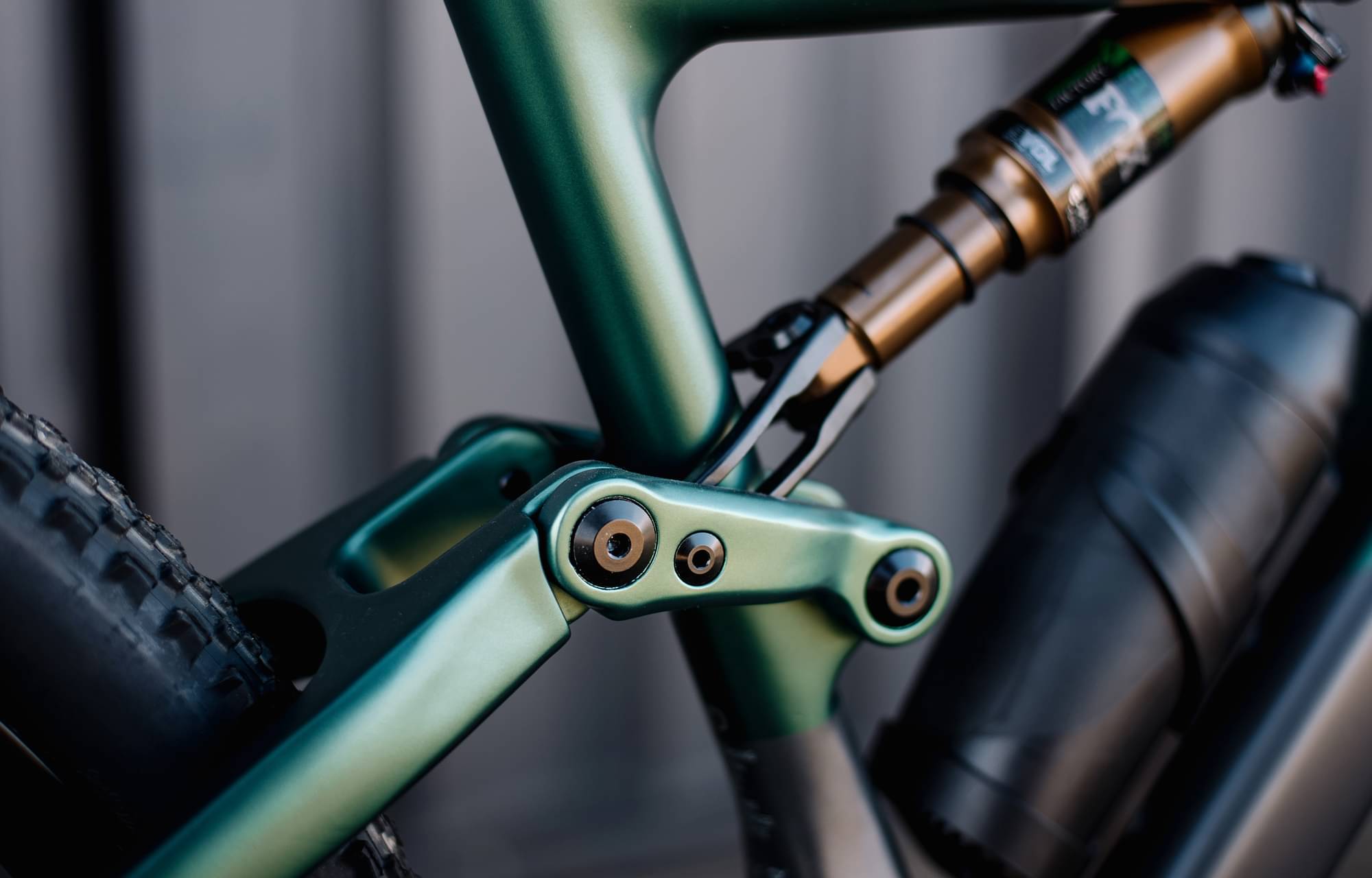

Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPS Performance, with a travel distance of 120mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on iLYNX RACE 7.8 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
iLYNX RACE 7.8 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
