Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor 250W 65Nm mid-drive -
Battery BH, integrated -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Rhythm
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth
Crank
FSA, 165mm length
Chain
Shimano Deore M6100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano, MICRO SPLINE driver
Rear Hub
Shimano, MICRO SPLINE driver
Rims
Alexrims EXR30 TR
Spokes
Stainless steel
Tires
Front: Maxxis Ardent, 3C MaxxSpeed, EXO, TR, 120 TPI, 29" x 2.35", Rear: Maxxis Ikon, 3C MaxxSpeed, EXO, TR, 120 TPI, 29" x 2.35"
Brakes
Brakes
Shimano MT520, 4-piston, 203mm rotors
Brake Levers
Shimano MT520
Cockpit
Stem
BH SLite Ahead
Handlebar
BH MTB Lite Riser, alloy, 780mm width
Grips
Ergon GE10
Headset
ACROS AIF-546 ICR Block Lock
Seat
Saddle
Prologo Proxim W350 STN
Seatpost
Race Face Aeffect dropper
Motor & Battery
Motor
BH 2ESMAG, 250W, 65 Nm max torque
Battery
BH, integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.451 mm | 1.404 mm | 1.357 mm |
| Stack | 598 mm | 605 mm | 612 mm |
| Reach | 412 mm | 431 mm | 451 mm |
| Top Tube Length | 573 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 67.7 ° | 67.7 ° | 67.7 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

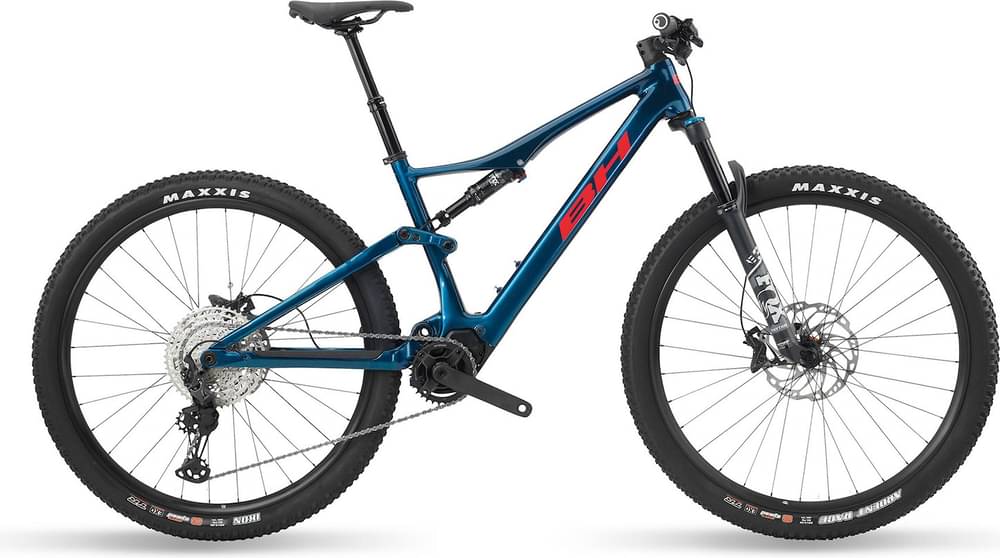

iLynx Race Carbon 8.0 LT is a Bh E Ilynx model. BH launched 30 e-bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The iLynx Race Carbon 8.0 LT comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT DPS Performance model, with a travel of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the iLynx Race Carbon 8.0 LT model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH iLynx Race Carbon 8.0 LT is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
