Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS, FSA -
Suspension Full -
Motor 250W 65Nm mid-drive -
Battery BH, integrated, plus XPro external battery -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast (SC), Factory, remote lockout
Rear Shock
FOX FLOAT DPS Factory, remote lockout
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, 12-speed, electronic wireless
Front Derailleur
None
Shift Levers
SRAM XX1 Eagle AXS Controller, 12-speed, electronic wireless
Cassette
SRAM XX1 Eagle XG-1299, 12-speed, 10-52 tooth
Crank
FSA, 165mm length
Chain
SRAM XX1 Eagle, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
BH Evo, XD driver
Rear Hub
BH Evo, XD driver
Rims
BH Evo C30 Carbon TR
Spokes
Stainless steel
Tires
Front: Maxxis Ardent, 3C MaxxSpeed, EXO, TR, 120 TPI, 29" x 2.35", Rear: Maxxis Ikon, 3C MaxxSpeed, EXO, TR, 120 TPI, 29" x 2.35"
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, 203mm rotors
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
BH SLite Ahead
Handlebar
BH Evo Carbon Riser, alloy, 760mm width
Grips
Ergon GE1 Factory
Headset
ACROS AIF-546 ICR Block Lock
Seat
Saddle
Prologo Scratch M5 STN
Seatpost
BH Evo Carbon
Motor & Battery
Motor
BH 2ESMAG, 250W, 65 Nm max torque
Battery
BH, integrated, plus XPro external battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.364 mm | 1.323 mm |
| Stack | 592 mm | 599 mm | 606 mm |
| Reach | 420 mm | 439 mm | 458 mm |
| Top Tube Length | 573 mm | 595 mm | 615 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

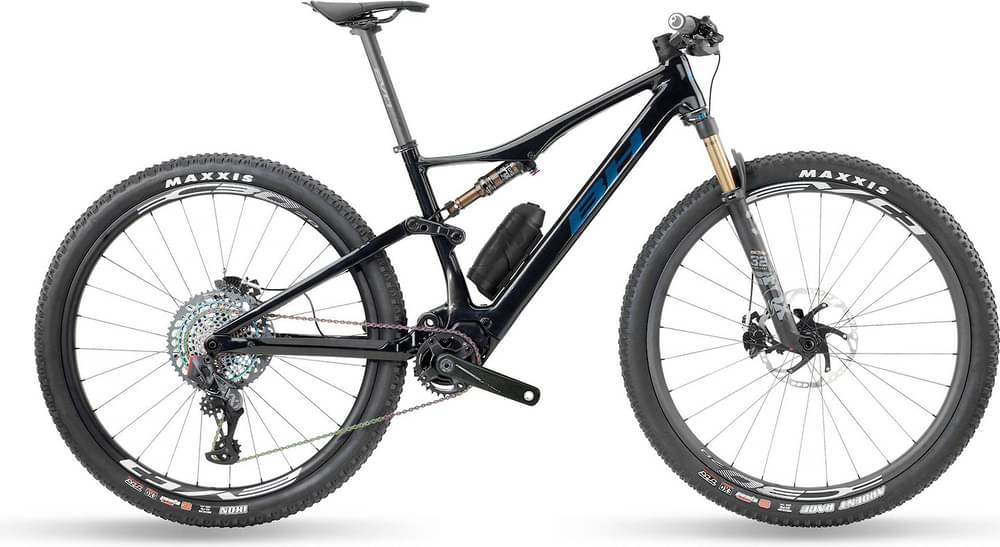

iLynx Race Carbon 8.6 Pro is part of the Bh E Ilynx model. 30 e-bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
BH iLynx Race Carbon 8.6 Pro 2021 e-bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPS Factory, with a travel distance of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the iLynx Race Carbon 8.6 Pro model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The iLynx Race Carbon 8.6 Pro comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
iLynx Race Carbon 8.6 Pro comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
