BH iLYNX RACE CARBON LT 7.7 2023

2023 E-bike
Estimate price | 9,768$
E-bike
Open compare Use advisor

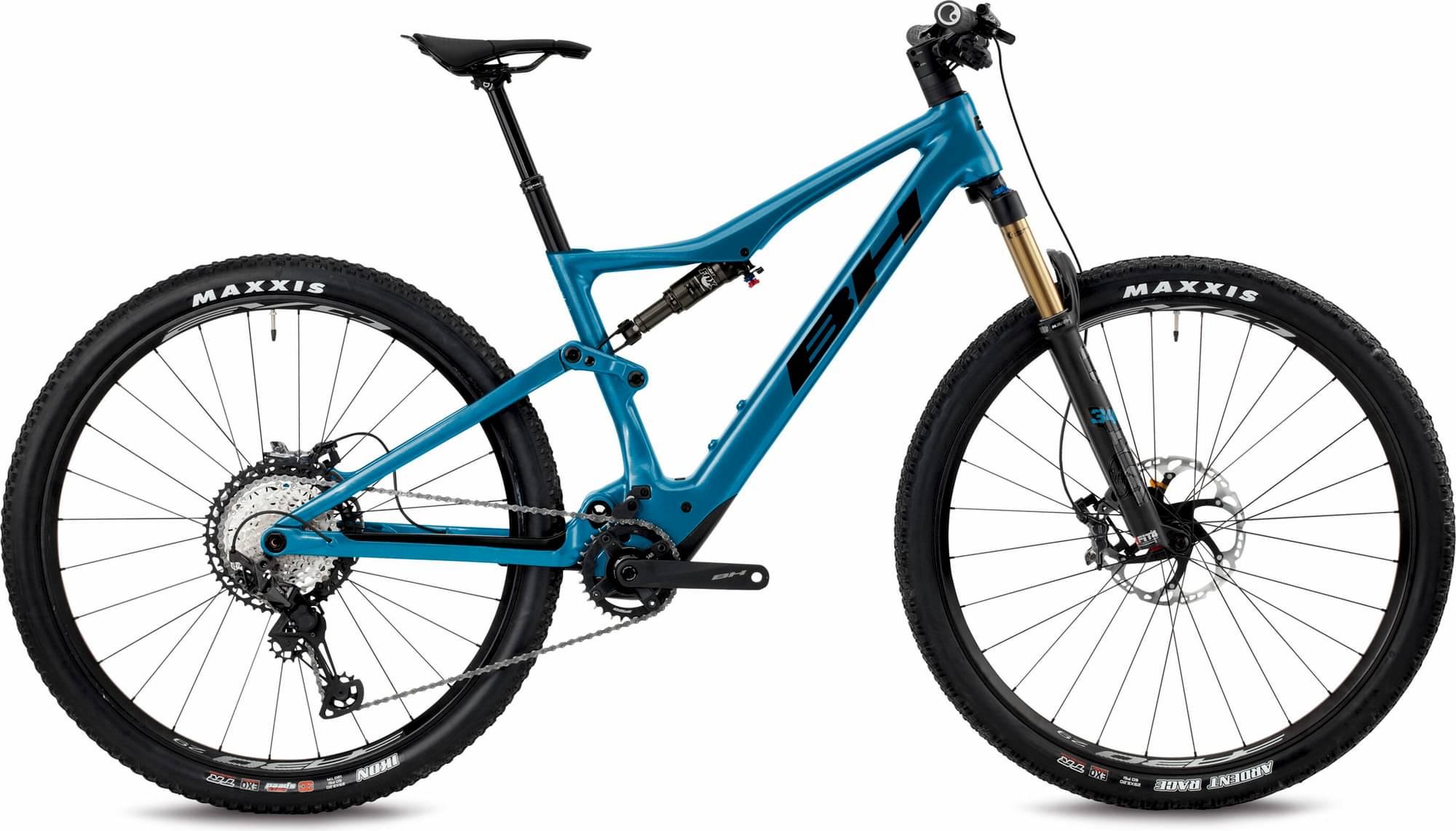

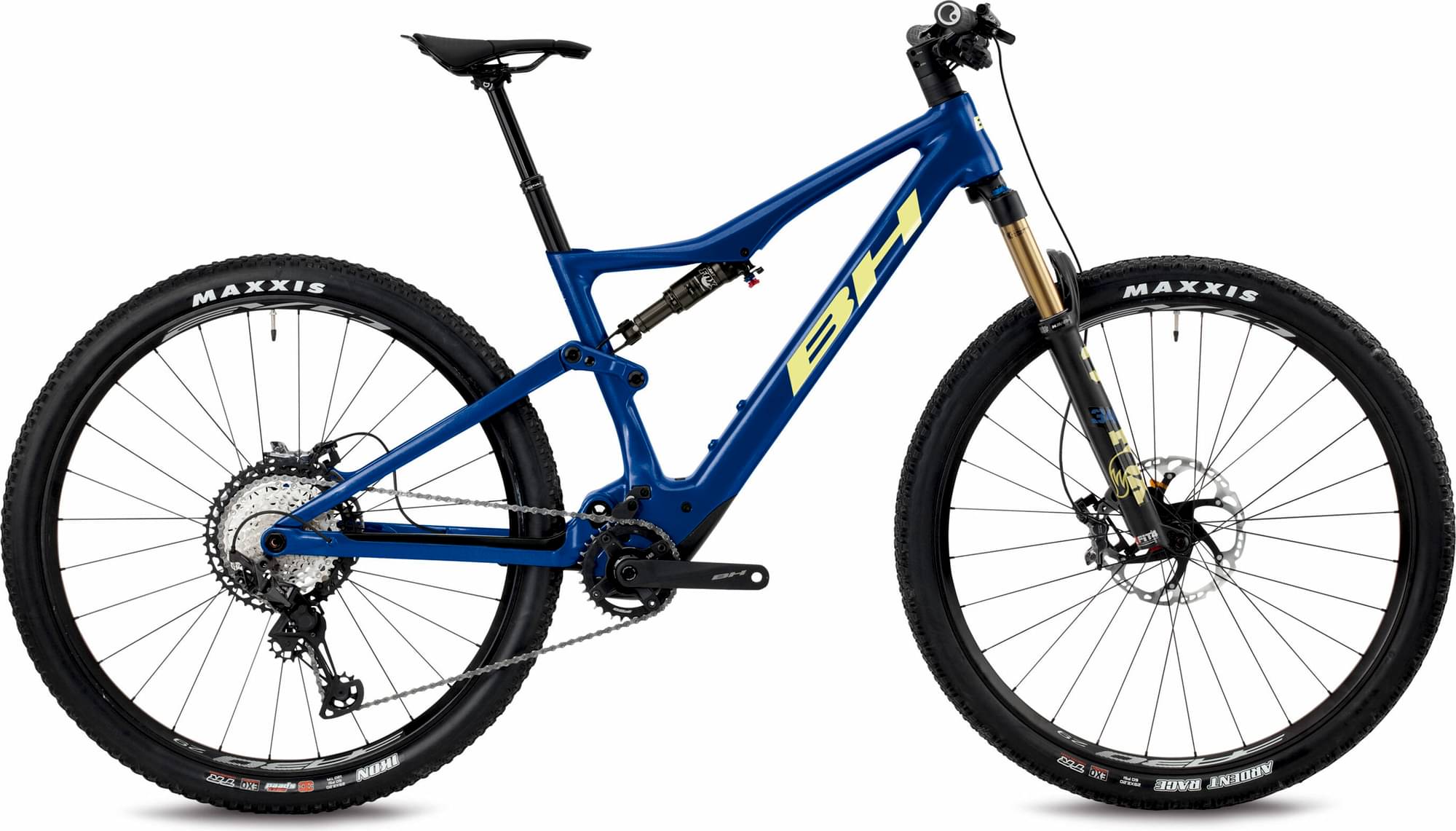

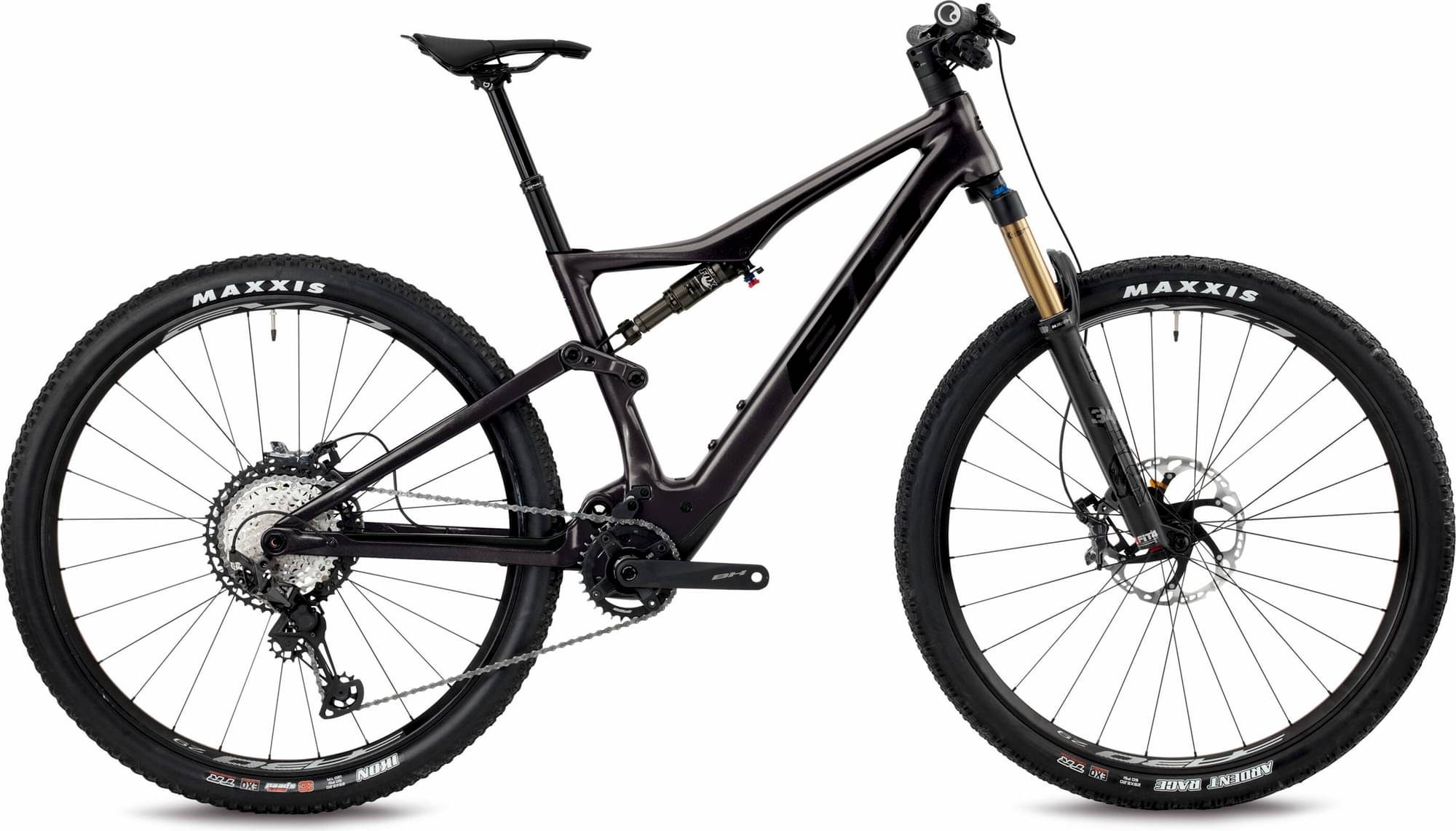

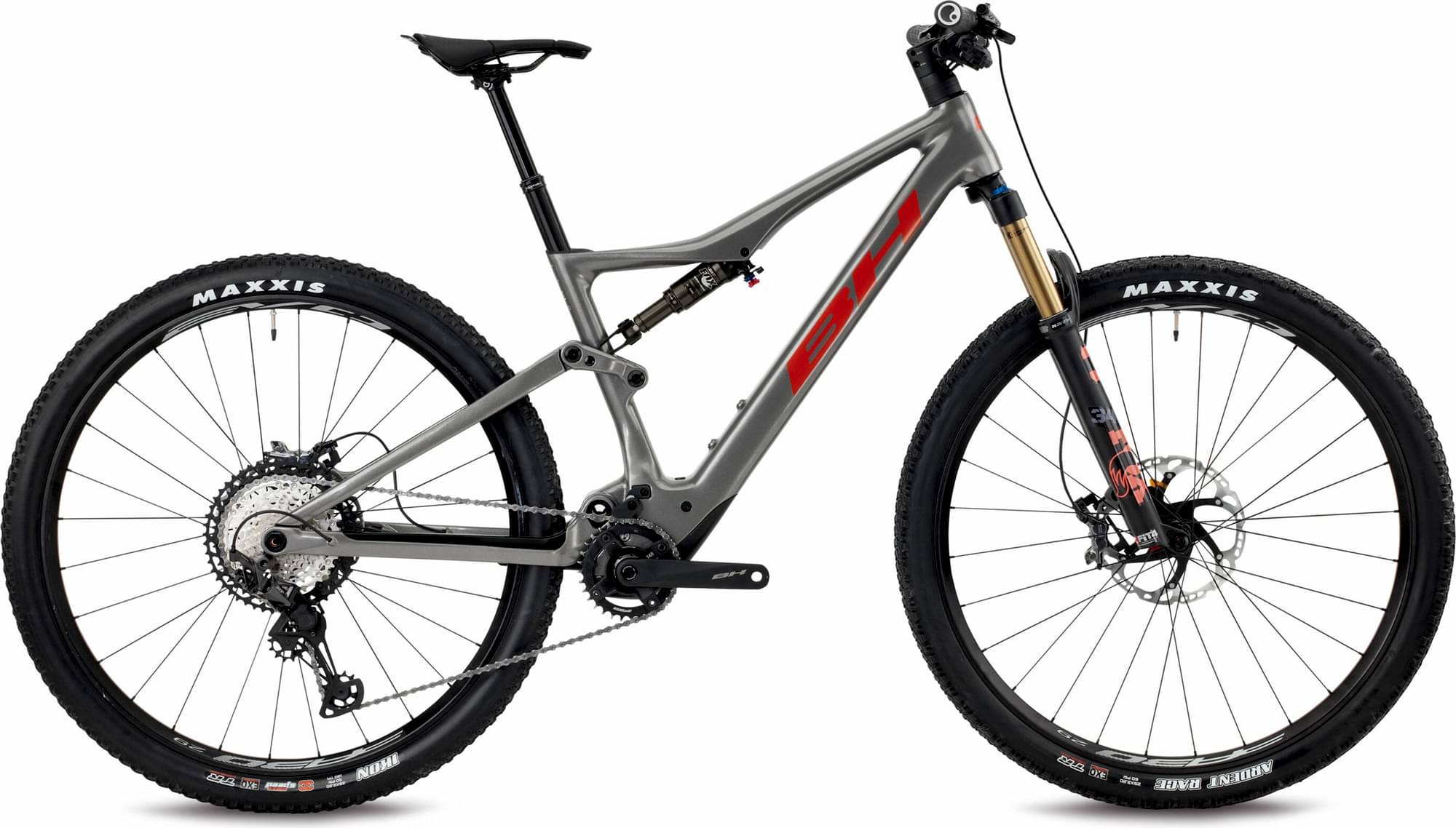

  • BH iLYNX RACE CARBON LT 7.7 2023 - bh-ilynx-race-carbon-lt-7.7-2023.jpeg
  • BH iLYNX RACE CARBON LT 7.7 2023 - bh-ilynx-race-carbon-lt-7.7-2023-1.jpeg
  • BH iLYNX RACE CARBON LT 7.7 2023 - bh-ilynx-race-carbon-lt-7.7-2023-2.jpeg
  • BH iLYNX RACE CARBON LT 7.7 2023 - bh-ilynx-race-carbon-lt-7.7-2023-3.jpeg
  • BH iLYNX RACE CARBON LT 7.7 2023 - bh-ilynx-race-carbon-lt-7.7-2023-4.jpeg
  • BH iLYNX RACE CARBON LT 7.7 2023 - bh-ilynx-race-carbon-lt-7.7-2023-5.jpeg

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Carbon
  • Wheels 29"
  • Travel Front 120mm
  • Travel Rear 120mm
  • Fork Fox Factory Float 34
  • Groupset XT, FSA
  • Suspension Full
  • Motor mid-drive
  • Battery 540Wh
  • Drivetrain 1 × 12
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • SM

    158cm - 170cm

  • MD

    168cm - 179cm

  • LG

    176cm - 187cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

120mm Full Susp.Carbon 29" Internal Cable Routing, Acros ICR

Suspension Fork

FOX 34 FLOAT Factory SC 120mm 15QR

Rear Shock

FOX FLOAT DPS Performance

Drivetrain

Rear Derailleur

Shimano XT 12sp

Front Derailleur

-

Shift Levers

Shimano XT

Cassette

Shimano CSM8100 12sp (10-51T)

Crank

FSA 34T-165mm

Bottom Bracket

-

Chain

Shimano CNM6100

Pedals

-

Wheels

Front Hub

BH Evo

Rear Hub

BH Evo

Rims

BH Evo A30 Alu TR

Spokes

Stainless Steel

Tires

Maxxis Ardent/IkonTPI120 EXO TR 29X2,35

Brakes

Brakes

Shimano XT 4 Piston 203mm

Cockpit

Stem

BH Evo 31 Fit

Handlebar

BH MTB SLite Alloy Riser 780mm

Grips

Ergon GE1-Factory

Headset

Acros AIF-543 ICR BL.

Seat

Saddle

Prologo Scratch M5 Stn

Seatpost

Bike Yoke Divine 31,6

Motor & Battery

Motor

NR System

Battery

540Wh

Remote

BH i-Remote

Fit data

Geometry

Numbers for sizing and ride feel.

SizeSMMDLG
Stack Reach Ratio
1.41 mm1.364 mm1.323 mm
Stack
592 mm599 mm606 mm
Reach
420 mm439 mm458 mm
Top Tube Length
573 mm595 mm615 mm
Seat Tube Angle
75.5 °75.5 °75.5 °
Seat Tube Length
400 mm440 mm480 mm
Head Tube Angle
68.5 °68.5 °68.5 °
Head Tube Length
100 mm110 mm120 mm
Chainstay Length
453 mm453 mm453 mm
Wheelbase
705 mm718 mm739 mm
Wheels29"29"29"
Rider Min Height158 cm168 cm176 cm
Rider Max Height170 cm179 cm187 cm

Model Overview

iLYNX RACE CARBON LT 7.7 is part of the Bh E Ilynx model. BH released 30 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.

Model range prices

BH iLYNX TRAIL 8.0 2023 is the cheapest e-bike model and costs 6202$. BH iLYNX RACE CARBON PRO 7.9 2023 is the most expensive one and costs 11311$.

Safety

Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.

Trail e-bikes average price

If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.

At the moment of the release date, BH iLYNX RACE CARBON LT 7.7 price was 8878$. Comparing the average cost of a Trail e-bike to this one, you will see that iLYNX RACE CARBON LT 7.7 price is 163.83% higher.

Internal Cable Routing

Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.

iLYNX RACE CARBON LT 7.7 components

Fork

The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.

Rear Shock

As for the rear shock, this e-bike has the FOX FLOAT DPS Performance model, with a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.

Wheels

When it comes to wheels, the iLYNX RACE CARBON LT 7.7 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.

Brakes

For your safety, it is important to have quality breaks on your bike. BH iLYNX RACE CARBON LT 7.7 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.

Sizes

This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.

Dropper post

Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
