Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
140 mm Full Suspension Alloy, internal cable routing
Suspension Fork
FOX 34 FLOAT Rhythm 140mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)

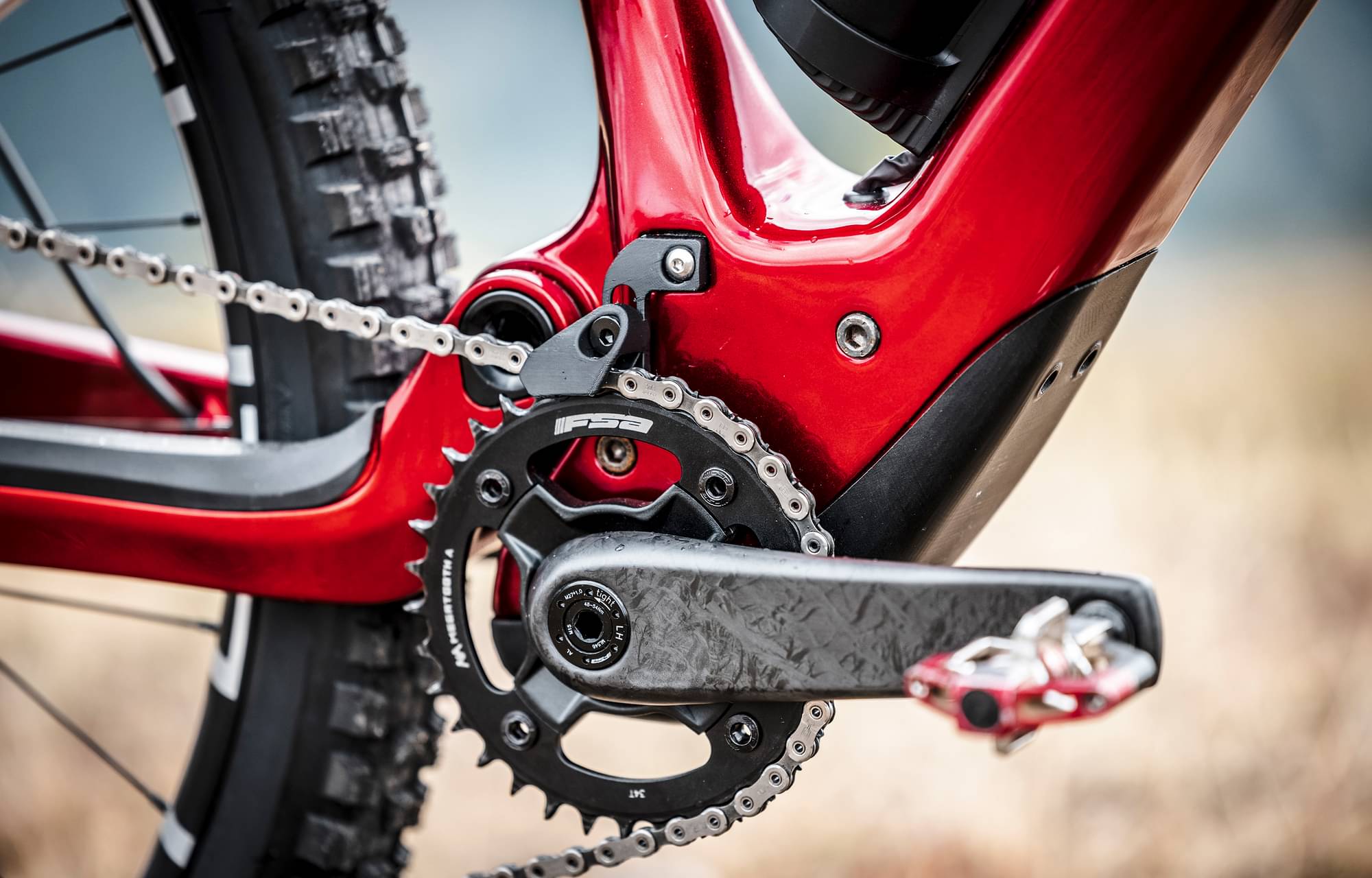

Crank
FSA 34T -165mm
Chain
Shimano CNM6100
Wheels
Front Hub
BH
Rear Hub
BH
Rims
Race Face Ar 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29X2,5/2,4
Brakes
Brakes
Front: Shimano MT420 4 Piston 203mm, Rear: Shimano MT420 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL
Seat
Saddle
Prologo Proxim W350 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Top Tube Length | 573 mm | 585 mm | 599 mm | 602 mm | 622 mm | 627 mm | 642 mm | 646 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 420 mm | 430 mm | 430 mm | 440 mm | 440 mm | 490 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
About this model
iLYNX TRAIL 8.1 completes the Bh E Ilynx model. BH released 30 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
BH iLYNX TRAIL 8.0 2023 is the cheapest e-bike model and costs 6202$. BH iLYNX RACE CARBON PRO 7.9 2023 is the most expensive one and costs 11311$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6932$. Comparing the average cost of a Trail e-bike to this one, you will see that iLYNX TRAIL 8.1 price is 106% more expensive.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The iLYNX TRAIL 8.1 comes factory-installed with the Fox Rhythm Float 34 fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.

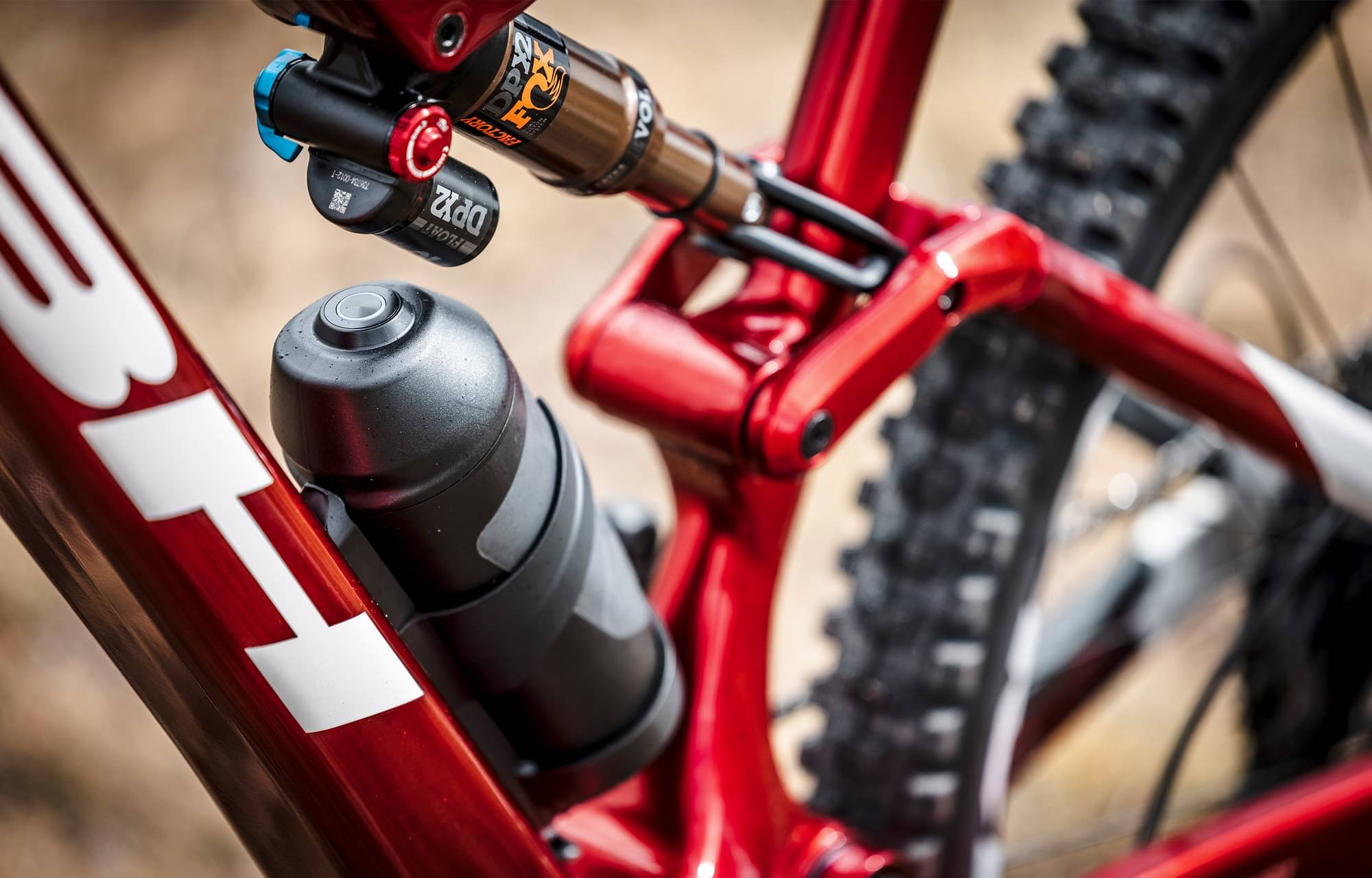

Rear Shock
BH iLYNX TRAIL 8.1 e-bike has the FOX FLOAT DPS Performance model installed, and has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on iLYNX TRAIL 8.1 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The iLYNX TRAIL 8.1 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
BH iLYNX TRAIL 8.1 e-bike has 8 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The BH model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
