Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT, Deore -
Suspension Full -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
150mm Full Suspension Alloy, internal cable routing
Suspension Fork
FOX 36 FLOAT Performance 150mm 15QR
Rear Shock
FOX FLOAT DPS Performance
Drivetrain

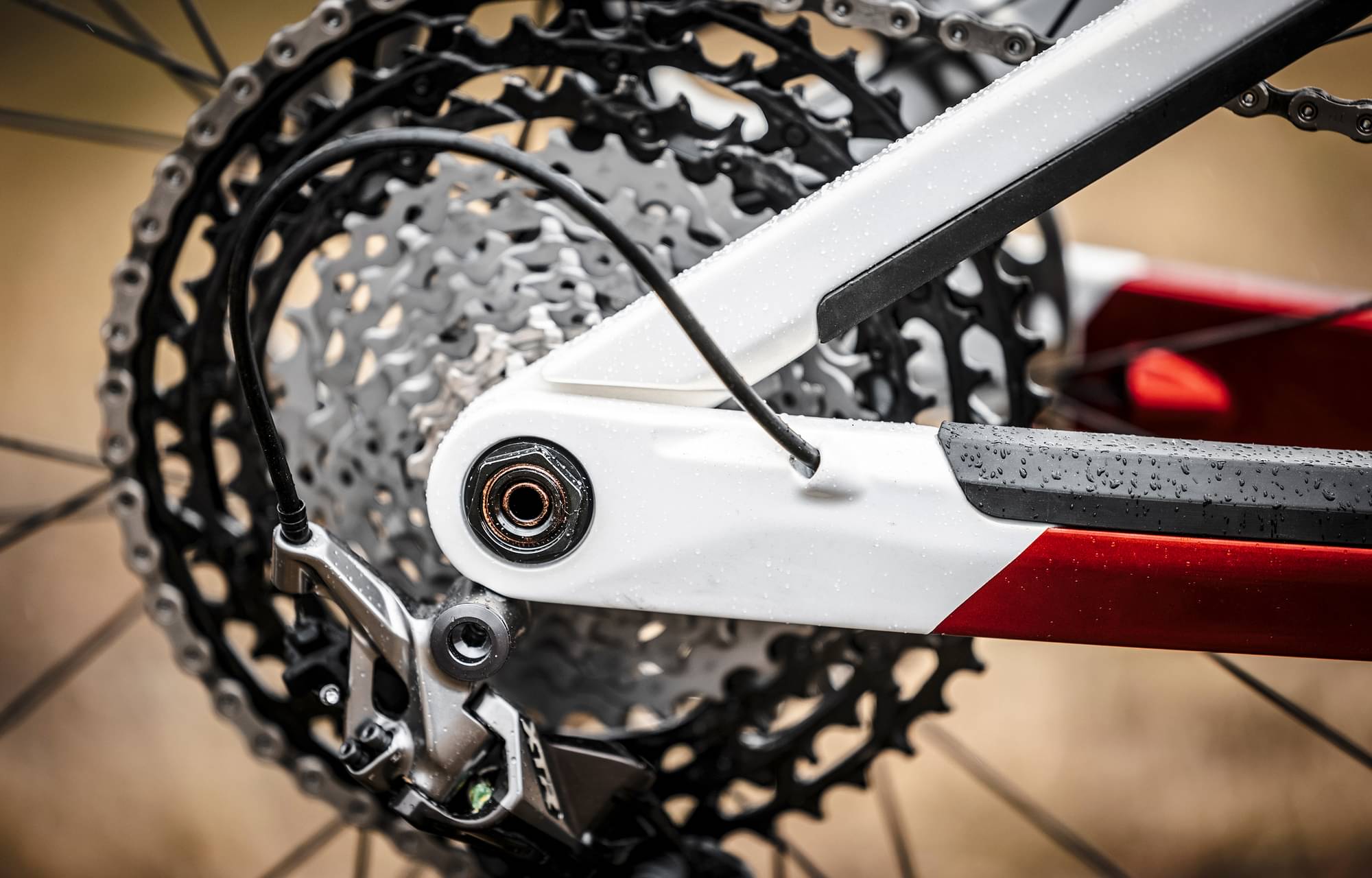

Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano Deore
Cassette
Shimano CSM6100 12sp (10-51T)

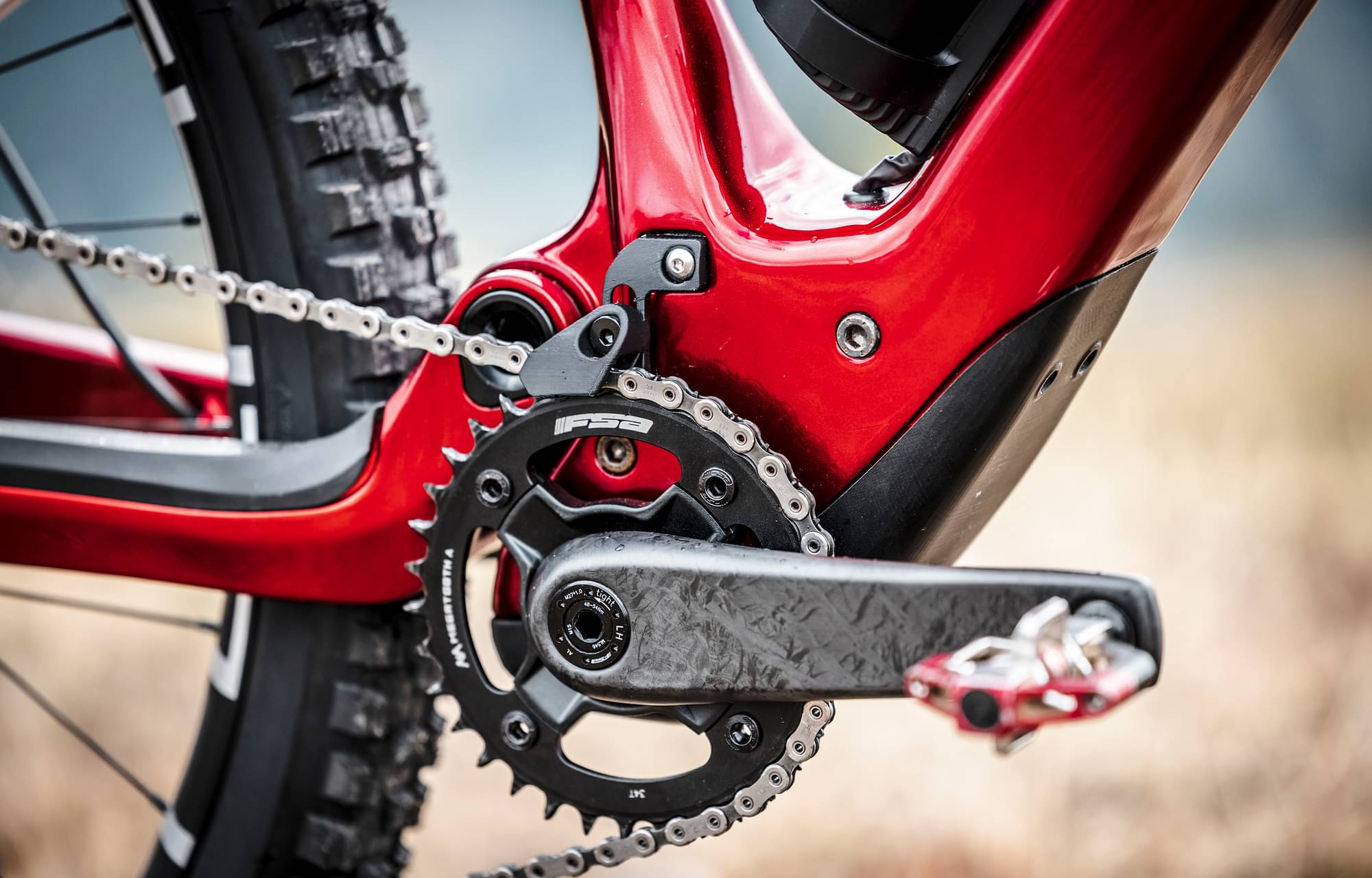

Crank
FSA 34T -165mm
Chain
Shimano CNM6100
Wheels
Front Hub
Race Face
Rear Hub
Race Face
Rims
Race Face Aeffect 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29X2,5/2,4
Brakes
Brakes
Front: SRAM DB8 4 Piston 200mm, Rear: SRAM DB8 4 Piston 200mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AZX-581 BL
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
NR System
Battery
540Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm | 339 mm |
| Top Tube Length | 573 mm | 585 mm | 599 mm | 602 mm | 622 mm | 627 mm | 642 mm | 646 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 420 mm | 420 mm | 430 mm | 430 mm | 440 mm | 440 mm | 490 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 95 mm | 100 mm | 100 mm | 110 mm | 110 mm | 125 mm | 125 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm | 454 mm |
| Wheelbase | 762 mm | 735 mm | 807 mm | 786 mm | mm | mm | mm | mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm | 186 cm |
| Rider Max Height | 171 cm | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm | 199 cm |
About this model
iLYNX TRAIL 8.2 belongs to the Bh E Ilynx model. BH released 30 e-bikes variations of this model so far. Take a sneak peek at all Bh E Ilynx e-bikes models from 2023, by clicking here.
Model range prices
BH iLYNX TRAIL 8.0 2023 is the most affordable e-bike of this model and has a price of 6202$. On the other hand, BH iLYNX RACE CARBON PRO 7.9 2023, is the most expensive and costs 11311$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When BH released this model in 2023, its price was 7540$. In conclusion, this e-bike price is 57.58% higher than the price of the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
BH iLYNX TRAIL 8.2 2023 e-bike is equipped with the Fox Performance Float 36 fork, and has 150mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.

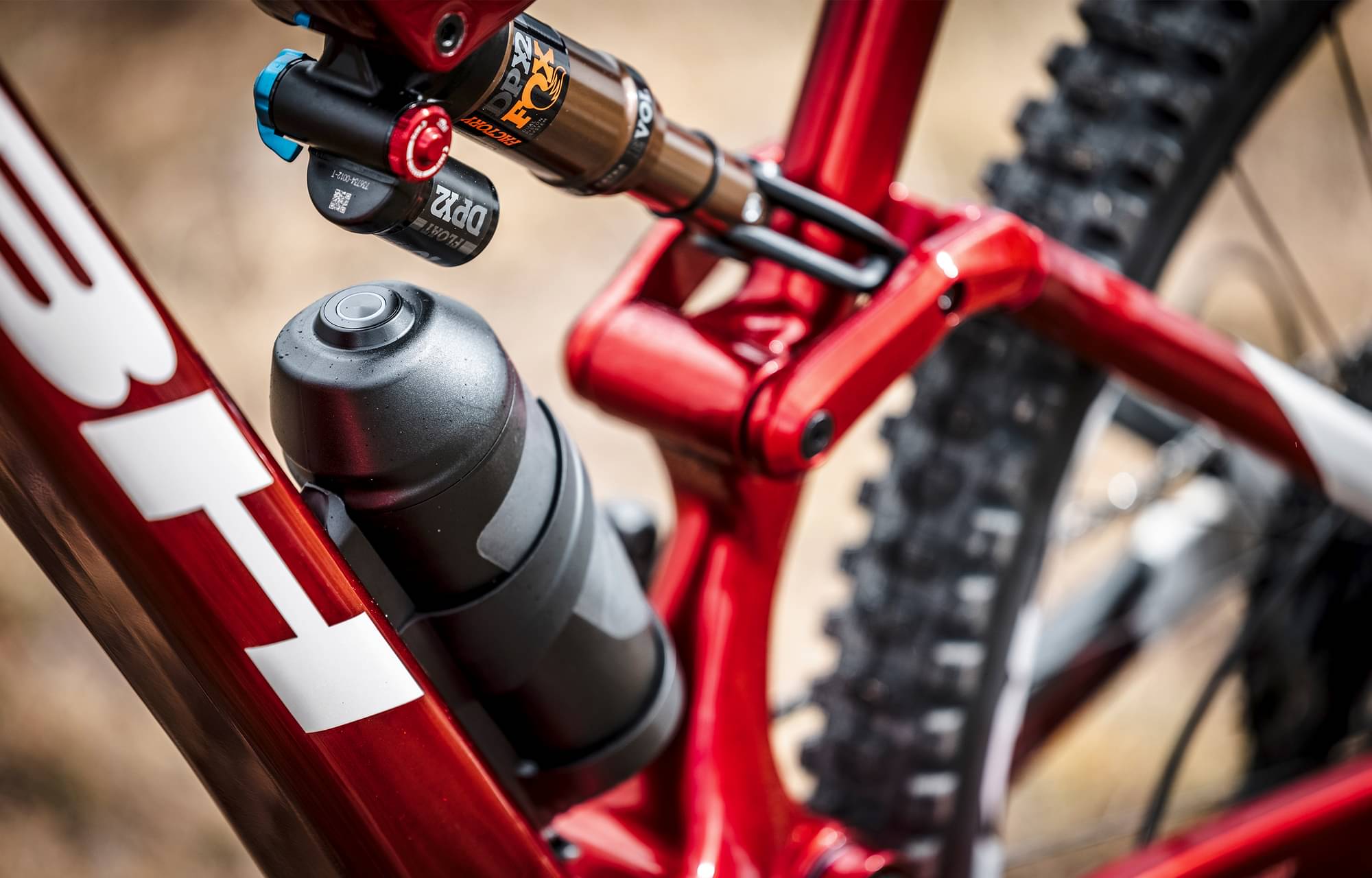

Rear Shock
The iLYNX TRAIL 8.2 has a rear shock with a travel of 150mm. The model FOX FLOAT DPS Performance is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the iLYNX TRAIL 8.2 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH iLYNX TRAIL 8.2 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 8 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the iLYNX TRAIL 8.2. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
