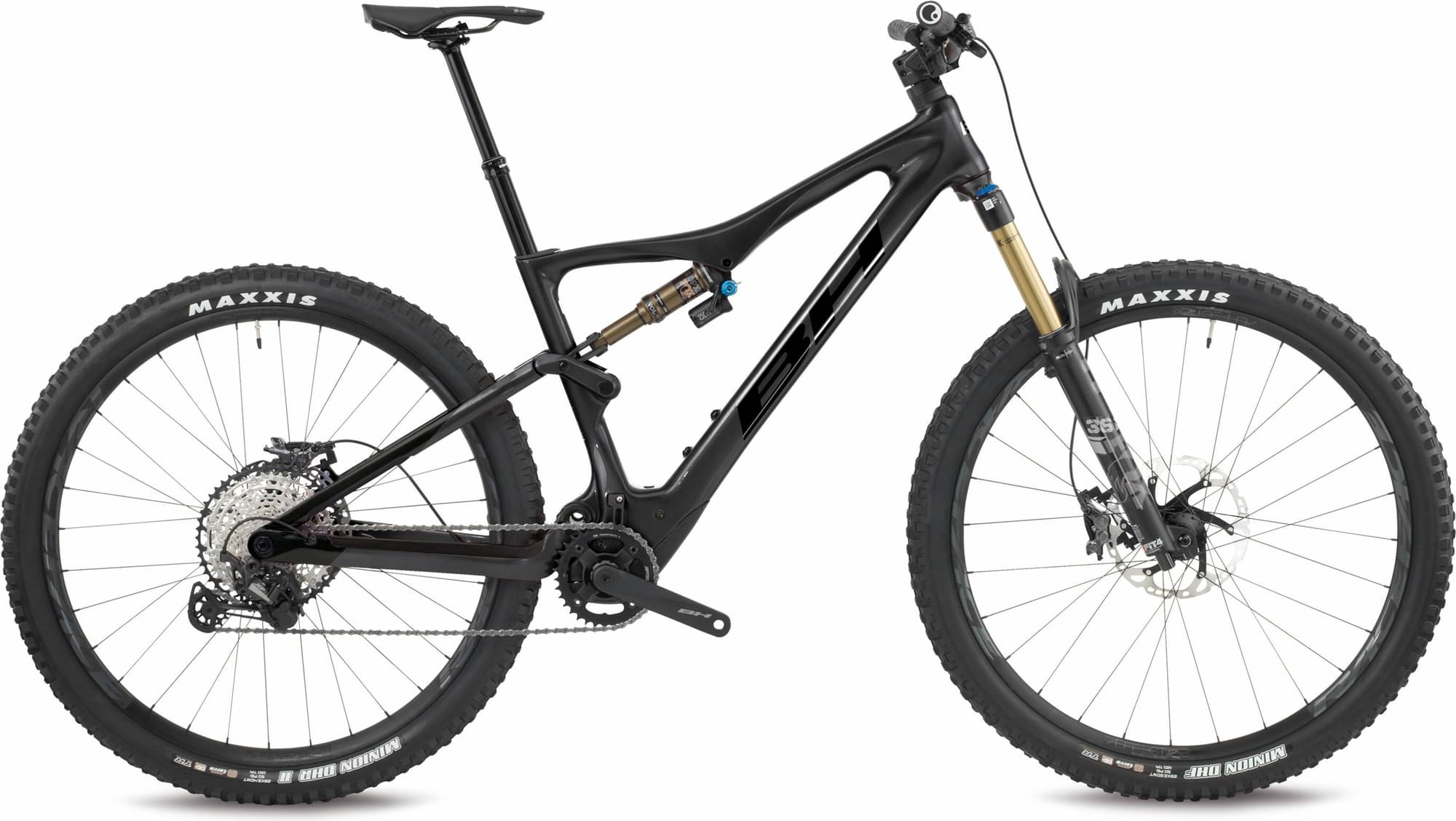

BH iLYNX TRAIL CARBON 8.7 2022
2022 E-bike
Estimate price |
10,296$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor mid-drive -
Battery 540Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
150mm Full Susp. Carbon29" Internal Cable Routing, Acros ICR
Suspension Fork
FOX 36 FLOAT Factory 150mm 15QR
Rear Shock
FOX FLOAT X Factory
Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano SLX
Cassette
Shimano CSM7100 12sp (10-51T)
Crank
FSA 34T SB-165mm
Chain
Shimano CNM6100
Wheels
Front Hub
Race Face
Rear Hub
Race Face
Rims
Race Face Aeffect 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29"x2,5/2,4
Brakes
Brakes
Shimano XT 4 Piston 203mm
Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE10
Headset
Acros AIF-543 ICR BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6
Motor & Battery
Motor
NR System
Battery
540Wh
Remote
BH i-Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.358 mm | 1.319 mm | 1.307 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Stack | 609 mm | 615 mm | 624 mm | 638 mm |
| Reach | 427 mm | 453 mm | 473 mm | 488 mm |
| Top Tube Length | 582 mm | 599 mm | 624 mm | 643 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 783 mm | 759 mm | 783 mm | 804 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
iLYNX TRAIL CARBON 8.7 is part of the Bh E Ilynx model. BH released 30 e-bikes variations of this model so far. Take a sneak peek at all Bh E Ilynx e-bikes models from 2022, by clicking here.
Model range prices
BH iLYNX TRAIL 8.0 2022 is the cheapest e-bike model and costs 6202$. BH iLYNX RACE CARBON PRO 7.9 2022 is the most expensive one and costs 11311$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, BH iLYNX TRAIL CARBON 8.7 price was 9243$. Comparing the average cost of an Enduro e-bike to this one, you will see that iLYNX TRAIL CARBON 8.7 price is 93.17% more expensive.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT X Factory model, with a travel of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the iLYNX TRAIL CARBON 8.7 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the iLYNX TRAIL CARBON 8.7. Therefore, climbing or descending will be a breeze.
