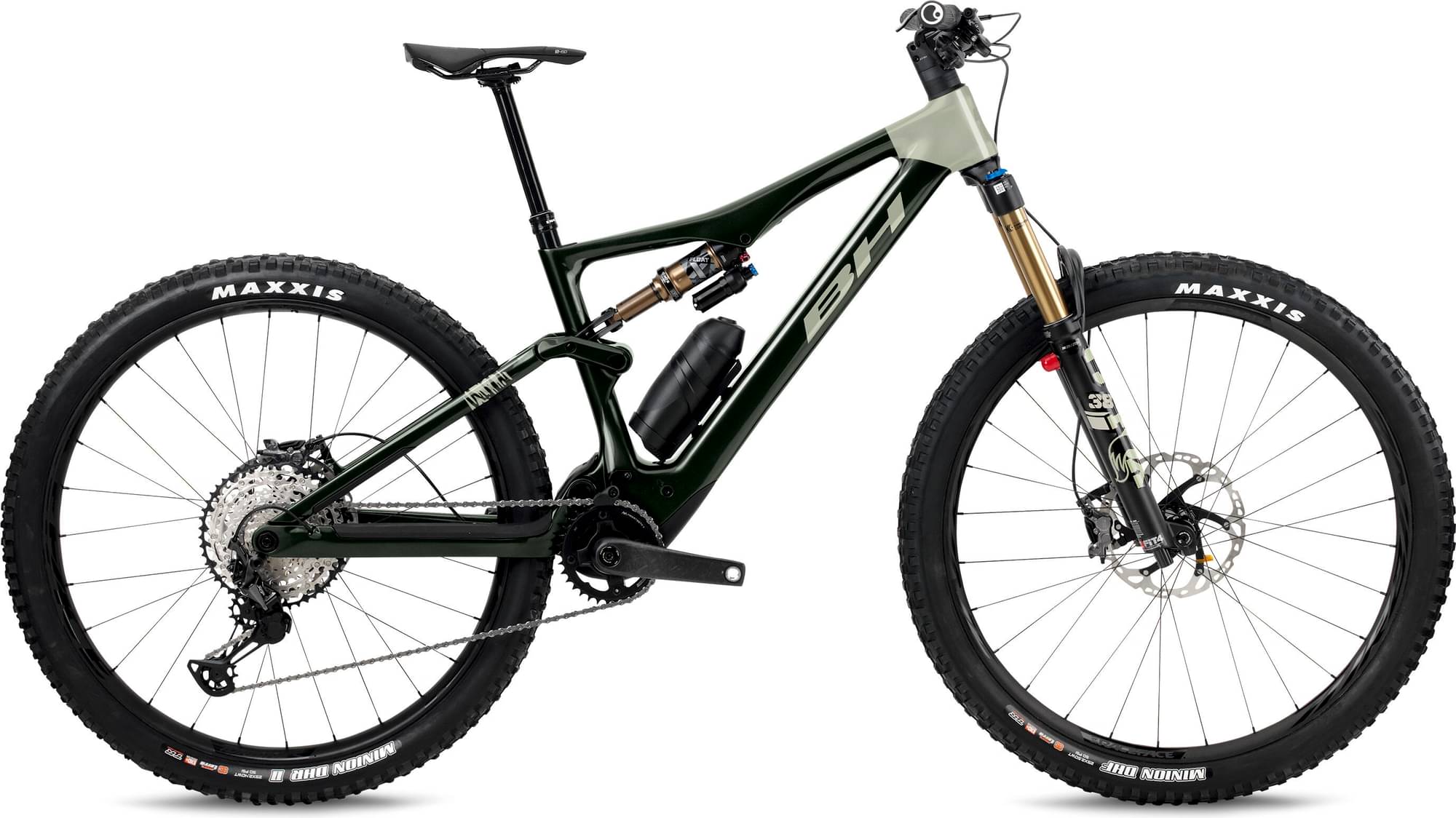

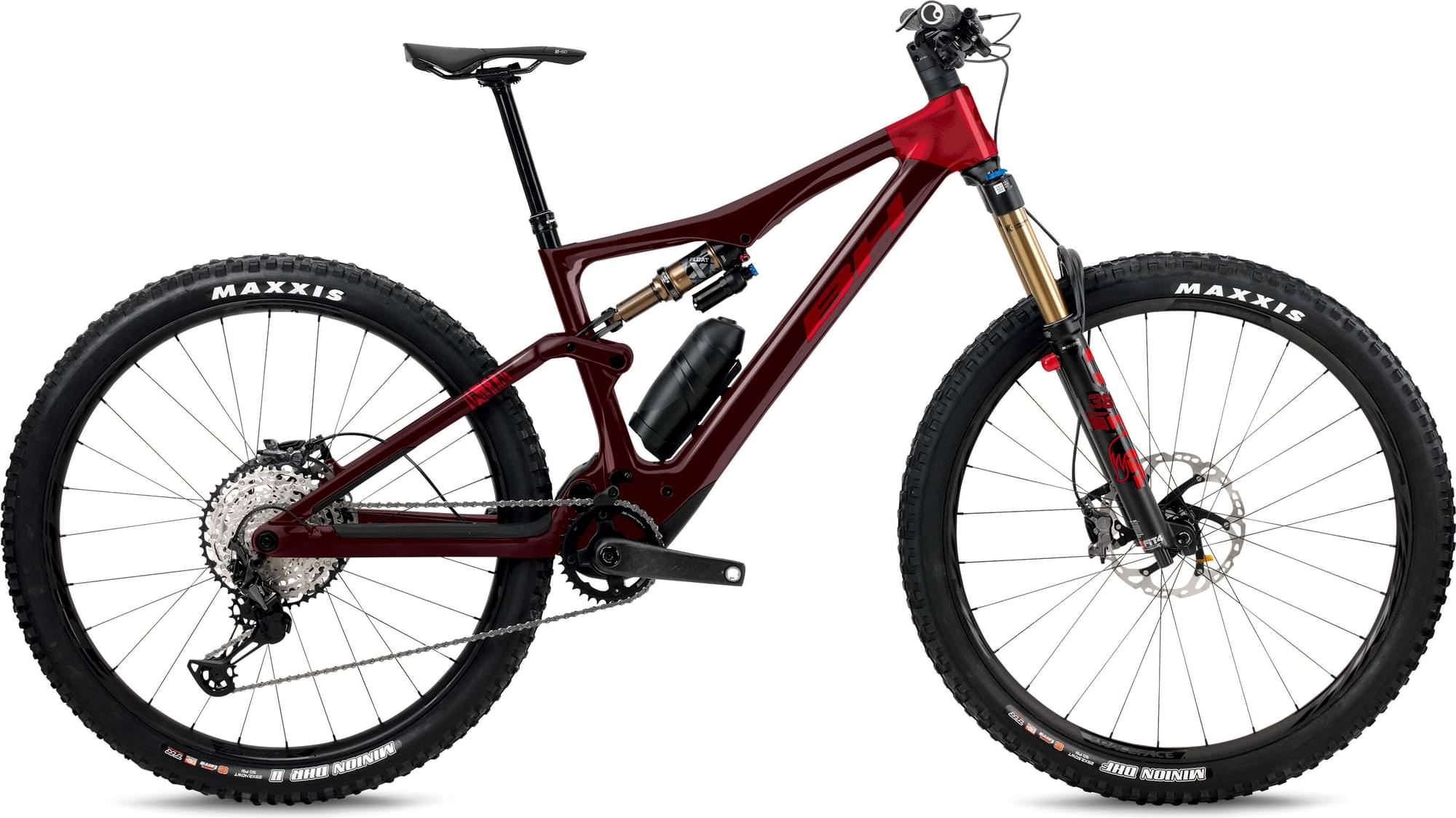

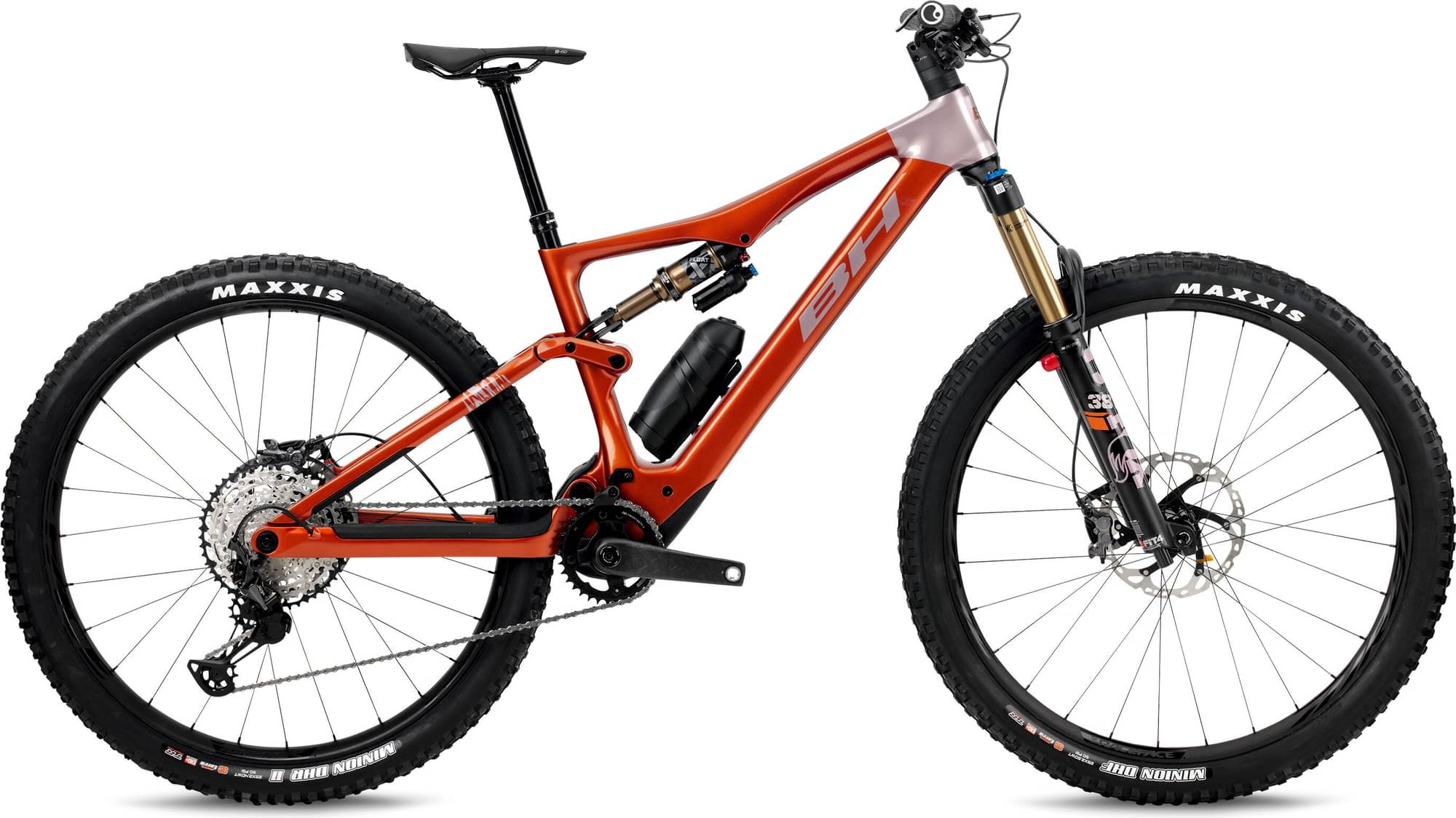

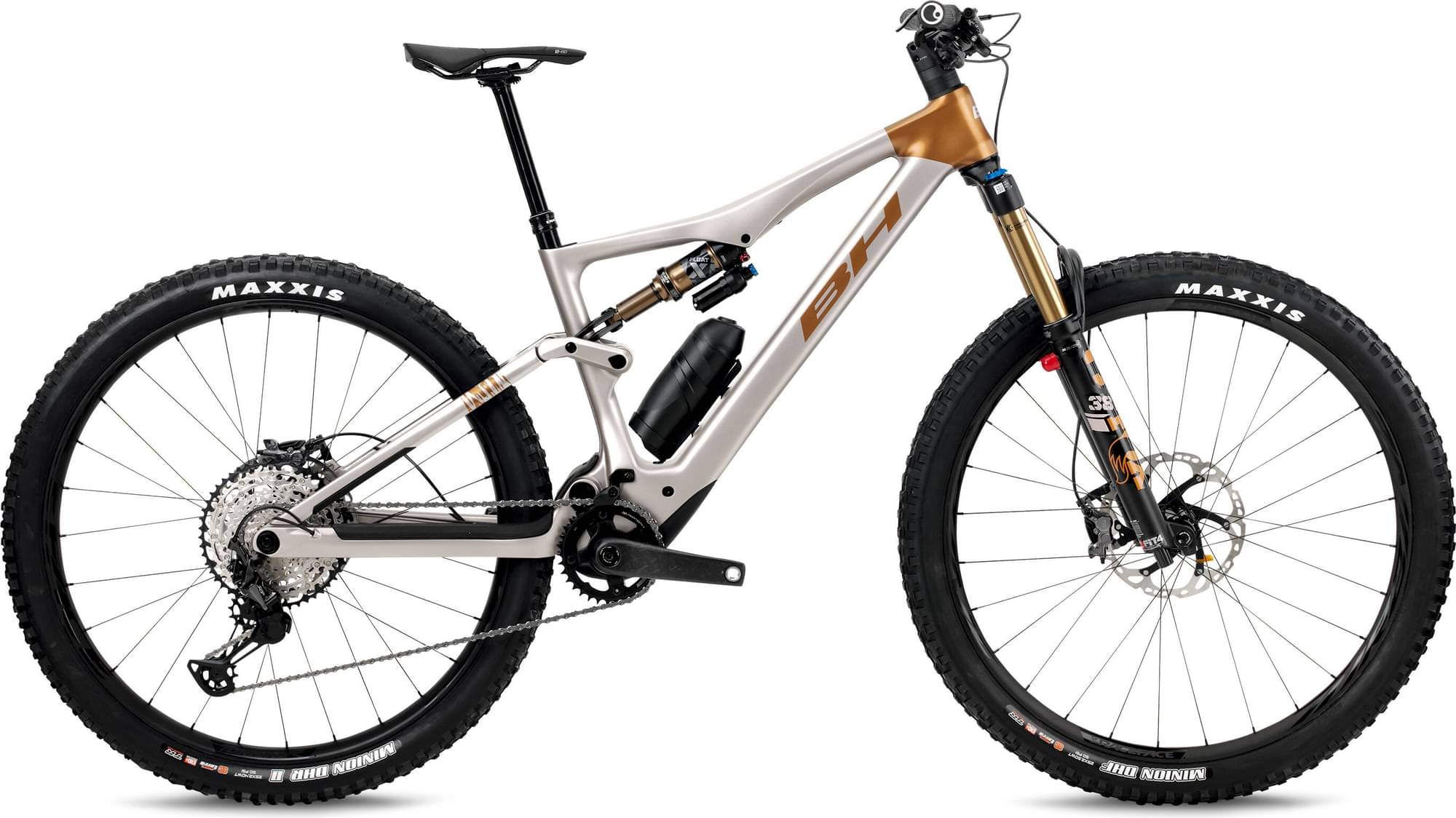

BH iLYNX TRAIL CARBON PRO 8.9 2023
2023 E-bike
Estimate price |
12,043$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XT, FSA -
Suspension Full -
Motor mid-drive -
Battery 720Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
150 mm FS Carbon 29", BC Layup, internal cable routing
Suspension Fork
FOX 36 FLOAT Factory 150mm 15QR
Rear Shock
FOX FLOAT Float X Factory
Drivetrain
Rear Derailleur
Shimano XT 12sp
Shift Levers
Shimano XT
Cassette
Shimano CSM8100 12sp (10-51T)
Crank
FSA Carbon 34T SB-165mm
Chain
Shimano CNM6100
Wheels
Front Hub
Race Face
Rear Hub
Race Face
Rims
Race Face Turbine 30 TR
Spokes
Stainless Steel
Tires
Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
Brakes
Brakes
Front: Shimano XT 4 Piston 203mm, Rear: Shimano XT 4 Piston 203mm

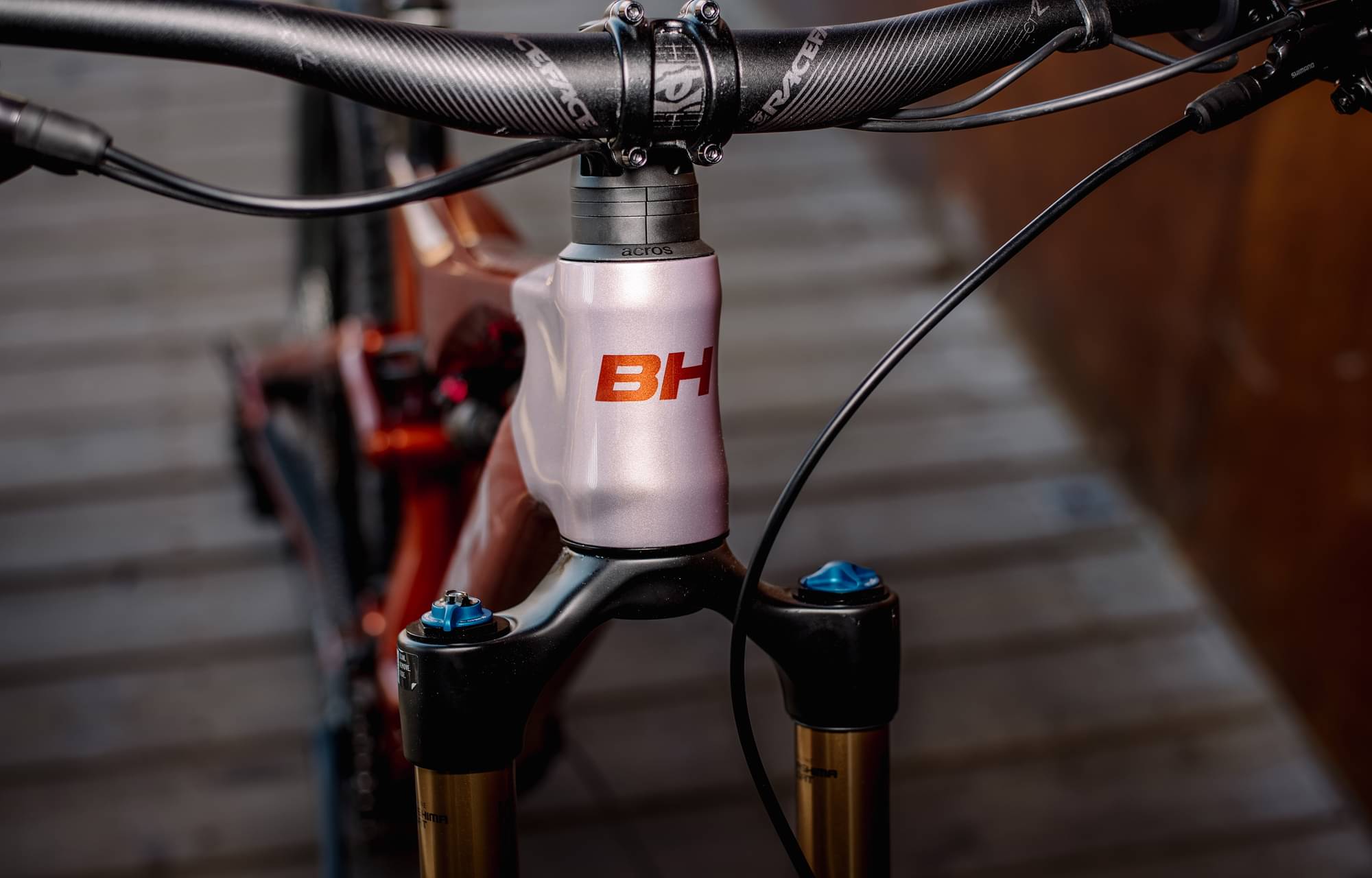

Cockpit
Stem
BH Evo 35 Fit
Handlebar
Race Face Aeffect Riser 35 780mm
Grips
Ergon GE1-Factory
Headset
Acros AIF-560 ICR BL.
Seat
Saddle
Prologo Proxim W450 Stn
Seatpost
Race Face DP Aeffect 31,6, X, Seatpost, Race Face DP Aeffect 31,6, SM 100mm, MD 150mm, LA 150mm, XL 170mm
Motor & Battery
Motor
NR System
Battery
720Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Top Tube Length | 582 mm | 599 mm | 624 mm | 643 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 410 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm | 451 mm |
| Wheelbase | 732 mm | 759 mm | 783 mm | 804 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
iLYNX TRAIL CARBON PRO 8.9 is part of the Bh E Ilynx model. BH released 30 e-bikes variations of this model so far. You can easily view all of the Bh E Ilynx e-bikes models from 2023, here.
Model range prices
BH iLYNX TRAIL 8.0 2023 is the most affordable e-bike of this model and has a price of 6202$. On the other hand, BH iLYNX RACE CARBON PRO 7.9 2023, is the most expensive and costs 11311$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When BH released this model in 2023, its price was 10946$. If we compare this with the average Enduro e-bike cost we notice that the price is 128.76% more expensive.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
iLYNX TRAIL CARBON PRO 8.9 components
Fork
The iLYNX TRAIL CARBON PRO 8.9 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT Float X Factory, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, BH iLYNX TRAIL CARBON PRO 8.9 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH iLYNX TRAIL CARBON PRO 8.9 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
iLYNX TRAIL CARBON PRO 8.9 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
BH iLYNX TRAIL CARBON PRO 8.9 includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
