Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Silver RL
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Recon RL
Rear Shock
SR Suntour Unair Lynx, lockout
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM NX Eagle, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle, 175mm length
Bottom Bracket
SRAM, threaded
Chain
SRAM SX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH SL wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rear Hub
BH SL wheelset, 110x15mm Boost front, 148x12mm Boost rear with HG driver
Rims
BH SL wheelset, 25mm width, tubeless
Spokes
BH SL wheelset
Tires
Front: Michelin Wild AM, 29" x 2.35", Rear: Michelin Force AM, 29" x 2.35"
Brakes
Brakes
Shimano MT400, 2-piston, 180mm rotors
Brake Levers
Shimano MT400
Cockpit
Stem
BH SL, 60mm length, 31.8mm bar clamp, 6° rise
Handlebar
BH Lite Rizer, 780mm width, 31.8mm clamp diameter, 20mm rise, 4° upsweep, 6° backsweep
Grips
BH SL, lock-on
Headset
BH Super Lite, integrated, sealed bearings
Seat
Saddle
Prologo Nago RS
Seatpost
KS Eten-I dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.377 mm | 1.352 mm | 1.325 mm |
| Stack | 601 mm | 606 mm | 615 mm | 624 mm |
| Reach | 425 mm | 440 mm | 455 mm | 471 mm |
| Top Tube Length | 583 mm | 597 mm | 616 mm | 635 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1160 mm | 1175 mm | 1194 mm | 1214 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

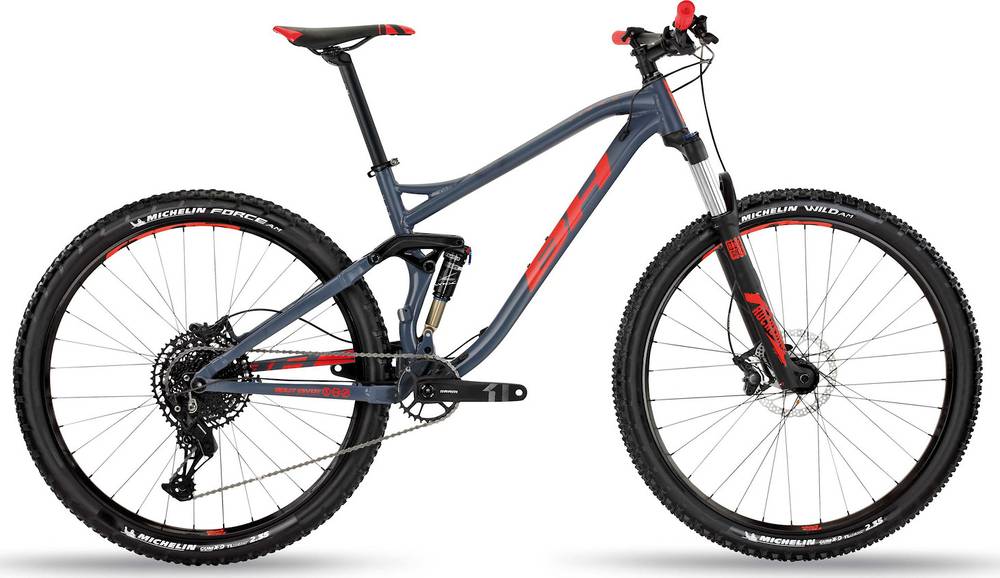

About this model
Lynx 5 Alu 3.9 is part of the Bh Lynx model. There are 77 bikes that carry this model name. Take a sneak peek at all Bh Lynx bikes models from 2020, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Lynx 5 Alu 3.9 comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
BH Lynx 5 Alu 3.9 bike has the SR Suntour Unair Lynx model installed, and has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Lynx 5 Alu 3.9 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lynx 5 Alu 3.9 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
BH Lynx 5 Alu 3.9 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The BH model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
