Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Factory, GRIP2 damper
Rear Shock
FOX FLOAT DPX2 Factory, Kashima coating
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle, 175mm length
Bottom Bracket
SRAM, threaded
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH Evo T30 wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
BH Evo T30 wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
BH Evo T30 wheelset, 30mm width, 28 hole, tubeless
Spokes
BH Evo T30 wheelset
Tires
Front: Michelin WildEnduro, MAGI-X compound, 29" x 2.4", Rear: Michelin WildEnduro, GUM-X compound, 29" x 2.4"
Brakes
Brakes
Shimano Deore XT, 180mm rotors
Brake Levers
Shimano Deore XT
Cockpit
Stem
BH SL, 60mm length, 31.8mm bar clamp, 6° rise
Handlebar
BH Lite Rizer, 780mm width, 31.8mm clamp diameter
Grips
BH SL, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
Prologo Scratch X10
Seatpost
BikeYoke Revive dropper, 160mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.377 mm | 1.352 mm | 1.325 mm |
| Stack | 601 mm | 606 mm | 615 mm | 624 mm |
| Reach | 425 mm | 440 mm | 455 mm | 471 mm |
| Top Tube Length | 583 mm | 597 mm | 616 mm | 635 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1160 mm | 1175 mm | 1194 mm | 1214 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

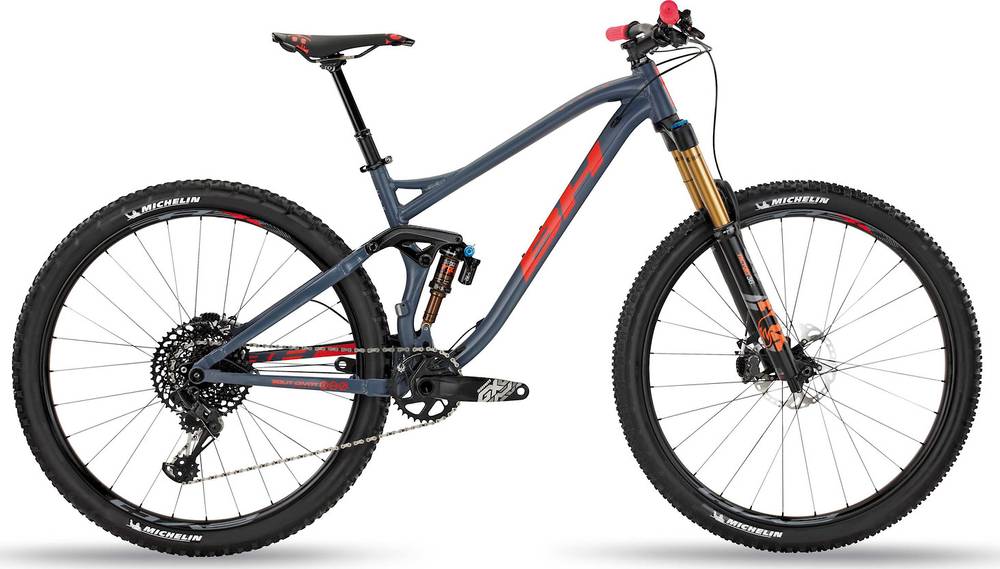

Lynx 5 LT Alu 5.5 belongs to the Bh Lynx model. BH launched 77 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPX2 Factory, with a travel distance of 130mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the Lynx 5 LT Alu 5.5 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lynx 5 LT Alu 5.5 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Lynx 5 LT Alu 5.5. Therefore, climbing or descending will be a breeze.
