Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 130mm -
Fork Fox Factory Float 36
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Factory, GRIP2 damper
Rear Shock
FOX FLOAT DPX2 Factory, Kashima coating
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle, 12-speed
Cassette
SRAM GX Eagle, 12-speed, 10-50 tooth
Crank
SRAM GX Eagle, 175mm length
Bottom Bracket
SRAM, 92mm PressFit
Chain
SRAM GX Eagle, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH Evo T30 wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rear Hub
BH Evo T30 wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with XD driver
Rims
BH Evo T30 wheelset, 30mm width, 28 hole, tubeless
Spokes
BH Evo T30 wheelset
Tires
Michelin WildEnduro
Brakes
Brakes
Shimano XTR, 180mm rotors
Brake Levers
Shimano XTR
Cockpit
Stem
BH SL, 60mm length, 31.8mm bar clamp, 6° rise
Handlebar
BH Evo Carbon Rizer, 760mm width, 31.8mm clamp diameter, 8mm rise, 5° upsweep, 7° backsweep
Grips
BH, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
Prologo Scratch X8
Seatpost
BikeYoke Revive dropper, 125mm drop
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.377 mm | 1.352 mm | 1.325 mm |
| Stack | 601 mm | 606 mm | 615 mm | 624 mm |
| Reach | 425 mm | 440 mm | 455 mm | 471 mm |
| Top Tube Length | 583 mm | 597 mm | 616 mm | 635 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1160 mm | 1175 mm | 1194 mm | 1214 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

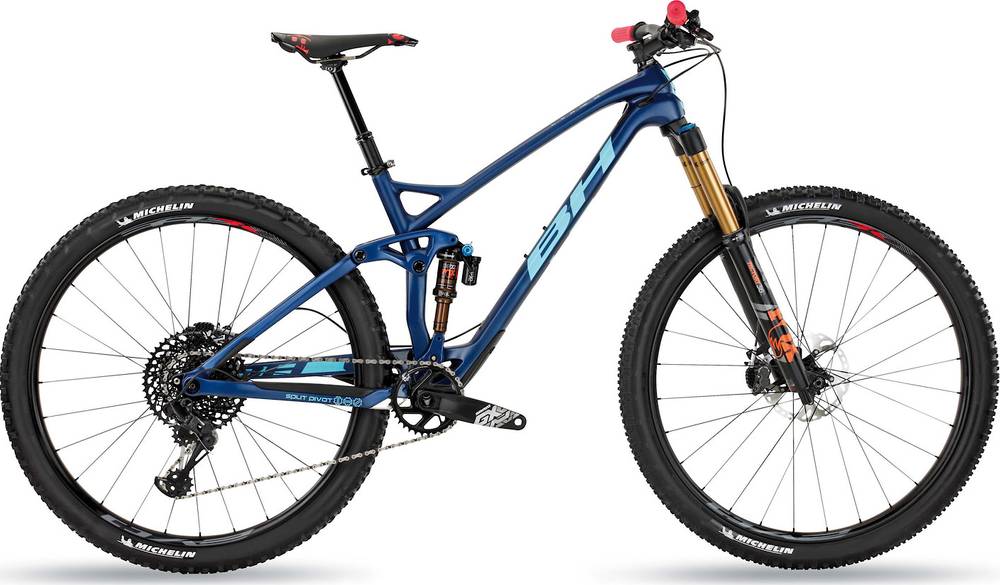

Lynx 5 LT Carbon 7.9 is a Bh Lynx model. 77 bikes variations carry this model name so far. Take a sneak peek at all Bh Lynx bikes models from 2020, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Lynx 5 LT Carbon 7.9 components
Fork
The Lynx 5 LT Carbon 7.9 comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this bike has the FOX FLOAT DPX2 Factory model, with a travel of 130mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, BH Lynx 5 LT Carbon 7.9 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Lynx 5 LT Carbon 7.9 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Lynx 5 LT Carbon 7.9 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The BH model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
