Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 32 Rhythm, GRIP damper
Rear Shock
RockShox Monarch RT
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano MT610, 175mm length
Bottom Bracket
Shimano, threaded
Chain
Shimano SLX, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH SL wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH SL wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH SL wheelset, 25mm width, tubeless
Spokes
BH SL wheelset
Tires
Front: Maxxis Ardent Race, 3C MaxxSpeed, EXO, 29" x 2.2", Rear: Maxxis Ikon, 3C MaxxSpeed, EXO, 29" x 2.2"
Brakes
Brakes
Shimano MT400, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano MT400
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH Lite Flat, 780mm width, 31.8mm clamp diameter
Grips
BH, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
Prologo Nago RS
Seatpost
BH Lite, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 674 mm | 702 mm | 727 mm | 750 mm |
| Rake | 56 mm | 56 mm | 56 mm | 55 mm |
| Trail | 87 mm | 87 mm | 87 mm | 88 mm |
| Stack | 578 mm | 587 mm | 601 mm | 615 mm |
| Reach | 391 mm | 416 mm | 435 mm | 453 mm |
| Top Tube Length | 564 mm | 592 mm | 615 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1089 mm | 1117 mm | 1142 mm | 1165 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Lynx Race Alu 4.0 is part of the Bh Lynx model. There are 77 bikes that carry this model name. You can easily view all of the Bh Lynx bikes models from 2020, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.

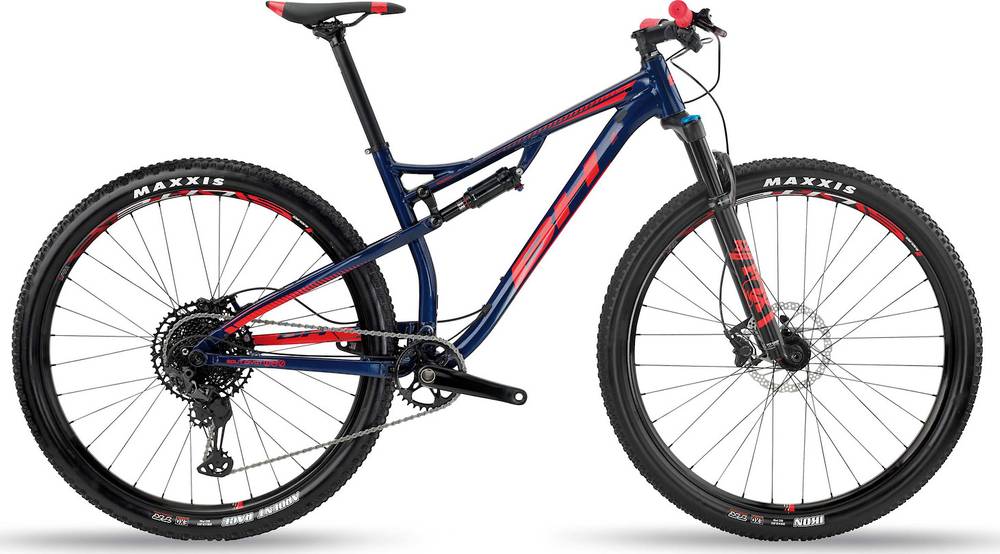

Lynx Race Alu 4.0 components
Fork
BH Lynx Race Alu 4.0 2020 bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the RockShox Monarch RT rear shock model, which has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The wheels on Lynx Race Alu 4.0 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. BH Lynx Race Alu 4.0 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
