Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast (SC) Performance, remote lockout
Rear Shock
FOX FLOAT DPS Performance, EVOL, remote lockout, 184mm x 44mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, 175mm length
Bottom Bracket
Shimano, 92mm PressFit
Chain
Shimano Deore XT M8100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
BH Evo wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH Evo wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH Evo wheelset, alloy, 25mm width, 28 hole, tubeless
Spokes
BH Evo wheelset
Tires
Front: Maxxis Ardent Race, EXO, 29" x 2.2", Rear: Maxxis Ikon, EXO, 29" x 2.2"
Brakes
Brakes
Shimano Deore XT M8100, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano Deore XT M8100
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH SL Midflat, 780mm width, 31.8mm clamp diameter, 10mm rise, 6° backsweep
Grips
BH, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
Prologo Nago RS
Seatpost
BH SL, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 674 mm | 702 mm | 727 mm | 750 mm |
| Rake | 56 mm | 56 mm | 56 mm | 55 mm |
| Trail | 87 mm | 87 mm | 87 mm | 88 mm |
| Stack | 578 mm | 587 mm | 601 mm | 615 mm |
| Reach | 391 mm | 416 mm | 435 mm | 453 mm |
| Top Tube Length | 564 mm | 592 mm | 615 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1089 mm | 1117 mm | 1142 mm | 1165 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

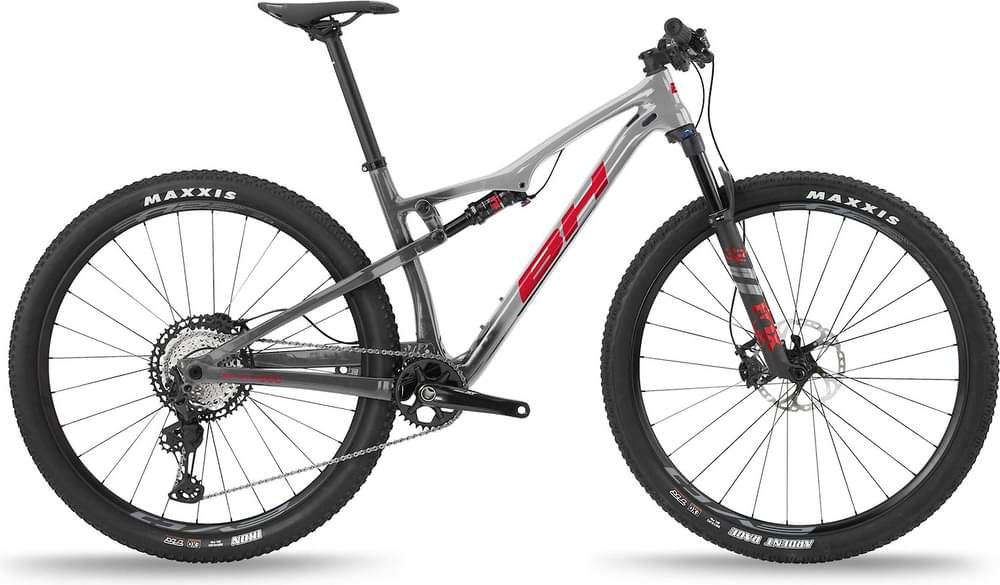

Lynx Race Carbon RC 7.0 is a Bh Lynx model. BH launched 77 bikes of this model so far. Take a sneak peek at all Bh Lynx bikes models from 2021, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Lynx Race Carbon RC 7.0 components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
BH Lynx Race Carbon RC 7.0 bike has the FOX FLOAT DPS Performance model installed, and has a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Lynx Race Carbon RC 7.0 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Lynx Race Carbon RC 7.0 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
BH Lynx Race Carbon RC 7.0 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
