Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 34 Step-Cast (SC) Performance, remote lockout
Rear Shock
FOX FLOAT DPS Performance, EVOL, remote lockout, 184mm x 44mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, 175mm length
Bottom Bracket
Shimano, 92mm PressFit
Chain
Shimano Deore XT M8100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
BH Evo wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH Evo wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH Evo wheelset, alloy, 25mm width, 28 hole, tubeless
Spokes
BH Evo wheelset
Tires
Maxxis Ardent Race, EXO, TR, 29" x 2.2"
Brakes
Brakes
Shimano Deore XT M8100, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano Deore XT M8100
Cockpit
Stem
BH SL, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH SL Midflat, 780mm width, 31.8mm clamp diameter, 10mm rise, 6° backsweep
Grips
BH, lock-on
Headset
BH SL, integrated, sealed bearings
Seat
Saddle
Prologo Nago RS
Seatpost
BikeYoke Divine SL dropper, 80mm drop, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.457 mm | 1.36 mm | 1.333 mm | 1.32 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 668 mm | 706 mm | 727 mm | 749 mm |
| Rake | 40 mm | 44 mm | 39 mm | 39 mm |
| Trail | 112 mm | 107 mm | 113 mm | 113 mm |
| Stack | 580 mm | 585 mm | 600 mm | 615 mm |
| Reach | 398 mm | 430 mm | 450 mm | 466 mm |
| Top Tube Length | 568 mm | 578 mm | 599 mm | 619 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75 ° | 74.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 425 mm |
| Wheelbase | 1096 mm | 1134 mm | 1155 mm | 1172 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

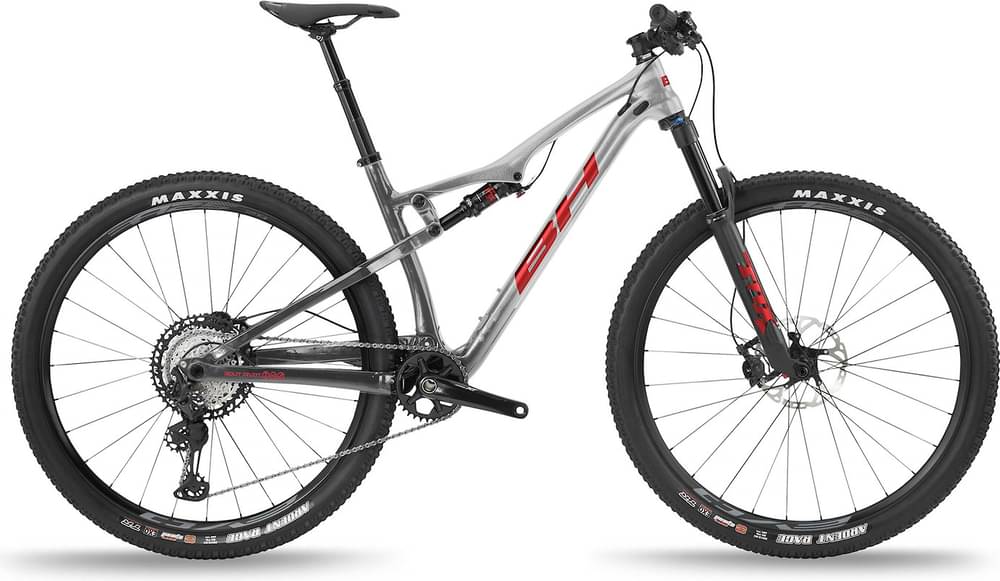

Lynx Race Carbon RC 7.5 LT is part of the Bh Lynx model. BH released 77 bikes variations of this model so far. Take a sneak peek at all Bh Lynx bikes models from 2021, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Lynx Race Carbon RC 7.5 LT components
Fork
The Fox Performance Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Lynx Race Carbon RC 7.5 LT has a rear shock with a travel of 100mm. The model FOX FLOAT DPS Performance is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Lynx Race Carbon RC 7.5 LT bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. BH Lynx Race Carbon RC 7.5 LT has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Lynx Race Carbon RC 7.5 LT comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
BH Lynx Race Carbon RC 7.5 LT includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
