Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast (SC) Performance, remote lockout
Rear Shock
FOX FLOAT DPS Performance, EVOL, remote lockout, 190mm x 40mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth
Crank
Shimano Deore XT M8100, 175mm length
Bottom Bracket
Shimano
Chain
Shimano Deore XT M8100, 12-speed
Chain Guide
None
Pedals
None
Wheels
Front Hub
BH SL wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH SL wheelset, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH SL wheelset, 25mm width, 32 hole, tubeless
Spokes
BH SL wheelset
Tires
Front: Maxxis Ardent Race, EXO, 29" x 2.2", Rear: Maxxis Ikon, EXO, 29" x 2.2"
Brakes
Brakes
Shimano Deore M6000, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano Deore M6000
Cockpit
Stem
BH LYNX Race EVO, 60mm length, 0° drop, 31.8mm bar clamp
Handlebar
BH SL Midflat, 780mm width, 10mm rise, 6° backsweep, 31.8mm clamp diameter
Grips
BH Control, lock-on
Headset
ACROS Lynx Race EVO, stainless steel bearings, BlockLock system limits rotation to 150°
Seat
Saddle
Prologo Scratch M5
Seatpost
BH SL, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.33 mm | 1.305 mm | 1.292 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 669 mm | 704 mm | 724 mm | 741 mm |
| Rake | 39 mm | 45 mm | 40 mm | 35 mm |
| Trail | 109 mm | 103 mm | 108 mm | 114 mm |
| Stack | 575 mm | 580 mm | 595 mm | 610 mm |
| Reach | 410 mm | 436 mm | 456 mm | 472 mm |
| Top Tube Length | 571 mm | 580 mm | 605 mm | 625 mm |
| Seat Tube Angle | 76 ° | 75.8 ° | 75.8 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1096 mm | 1131 mm | 1151 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

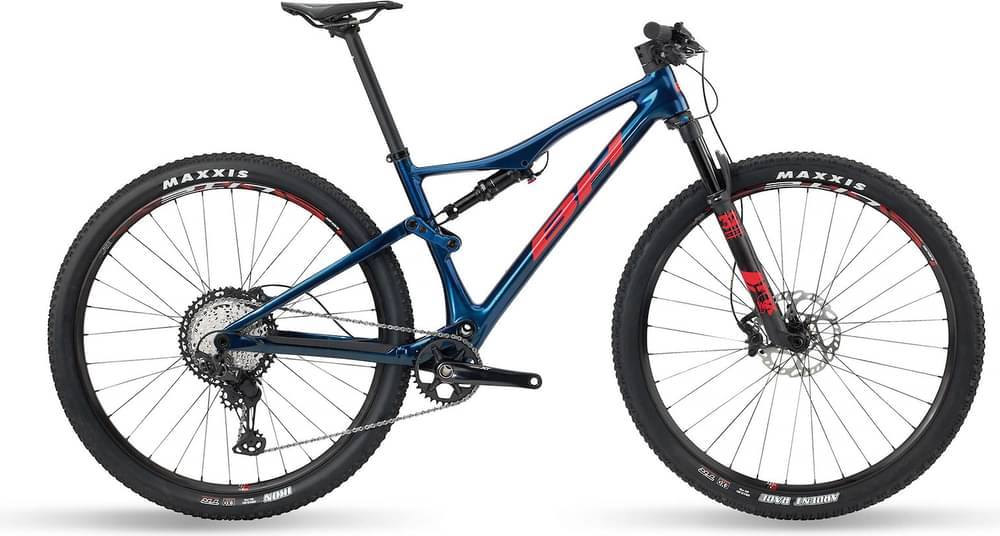

Lynx Race EVO Carbon 8.0 belongs to the Bh Lynx model. BH released 77 bikes variations of this model so far. Take a sneak peek at all Bh Lynx bikes models from 2021, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
BH Lynx Race EVO Carbon 8.0 bike has the FOX FLOAT DPS Performance model installed, and has a travel of 100mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Lynx Race EVO Carbon 8.0 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH Lynx Race EVO Carbon 8.0 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
