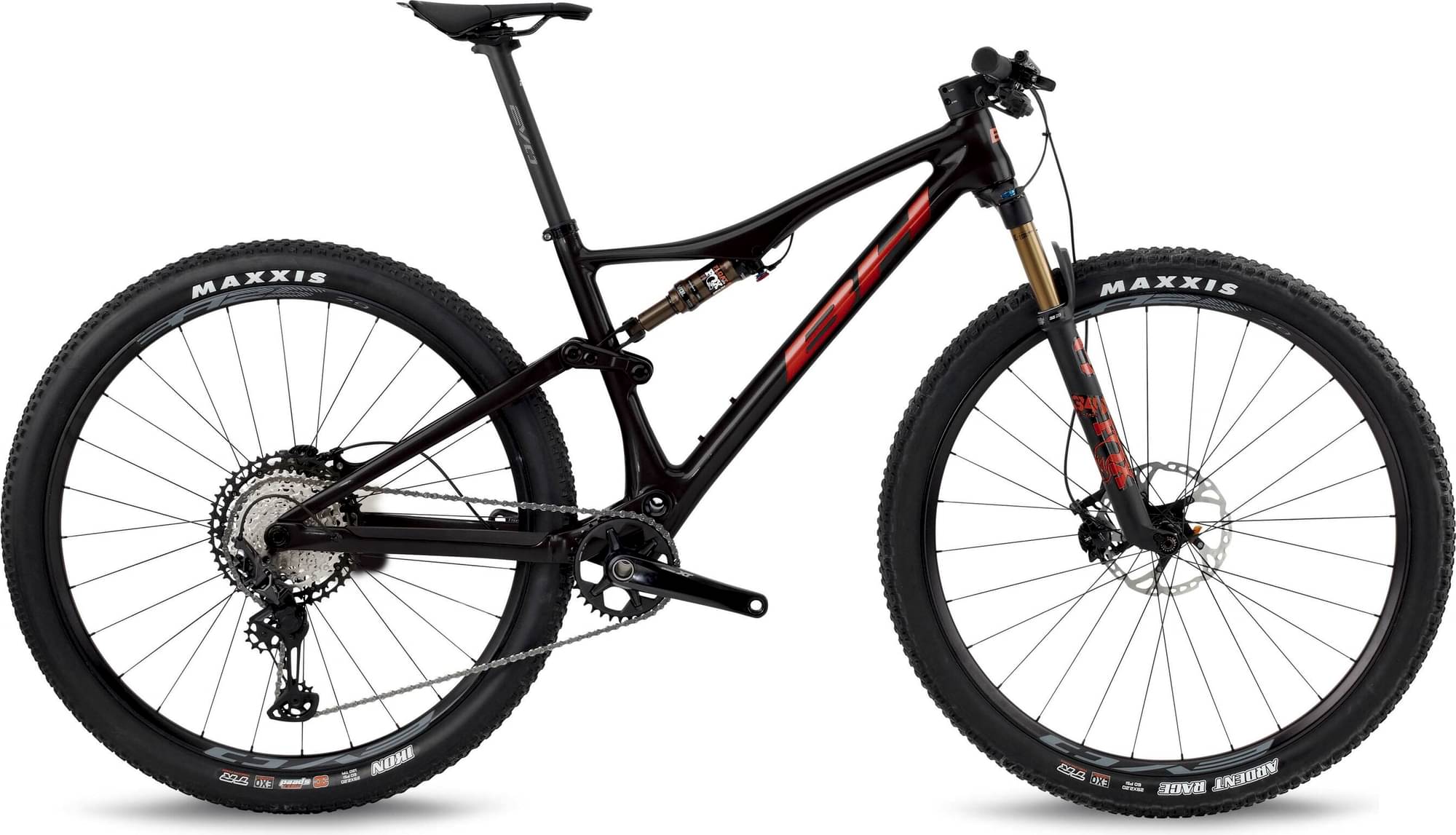

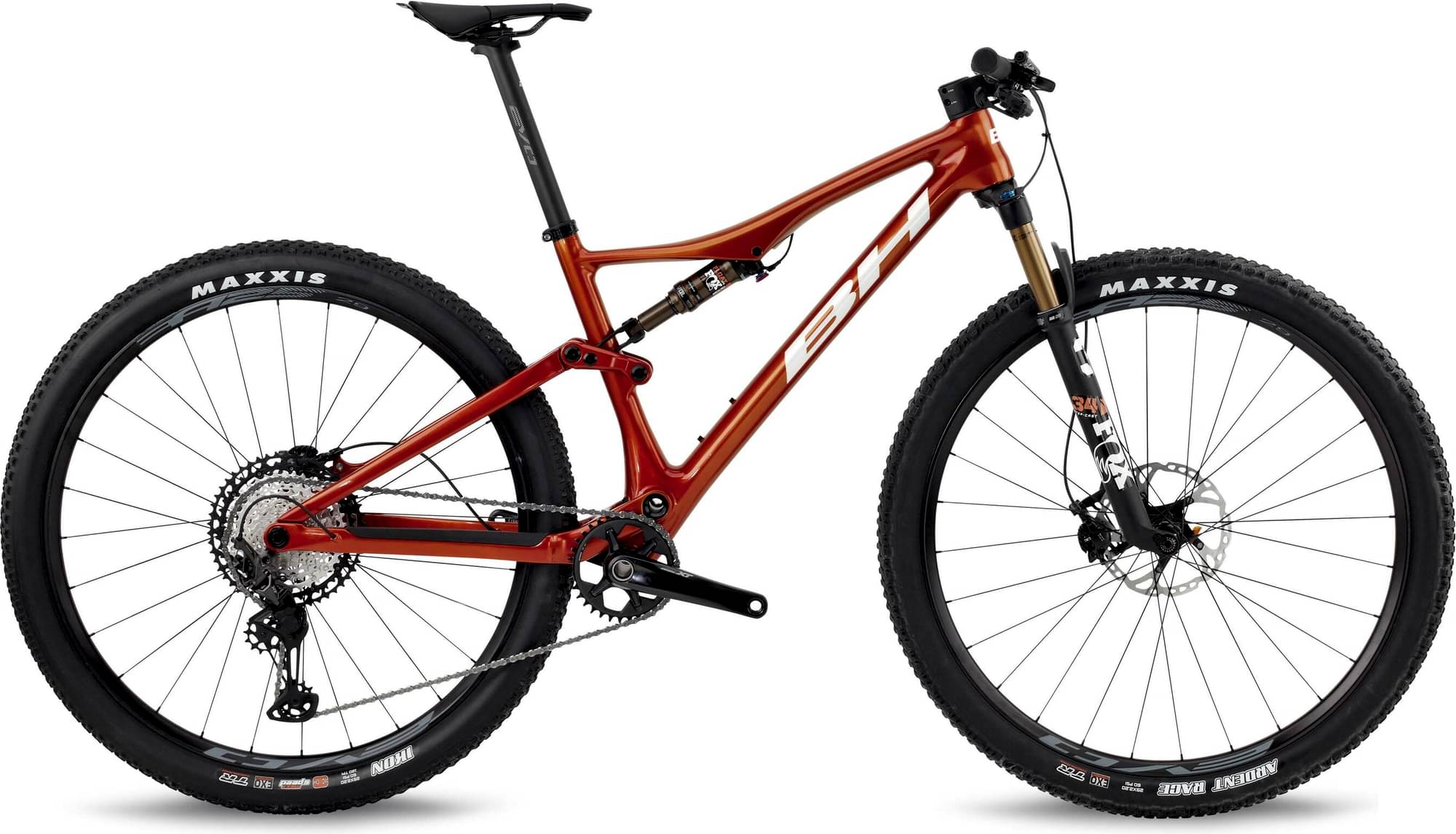

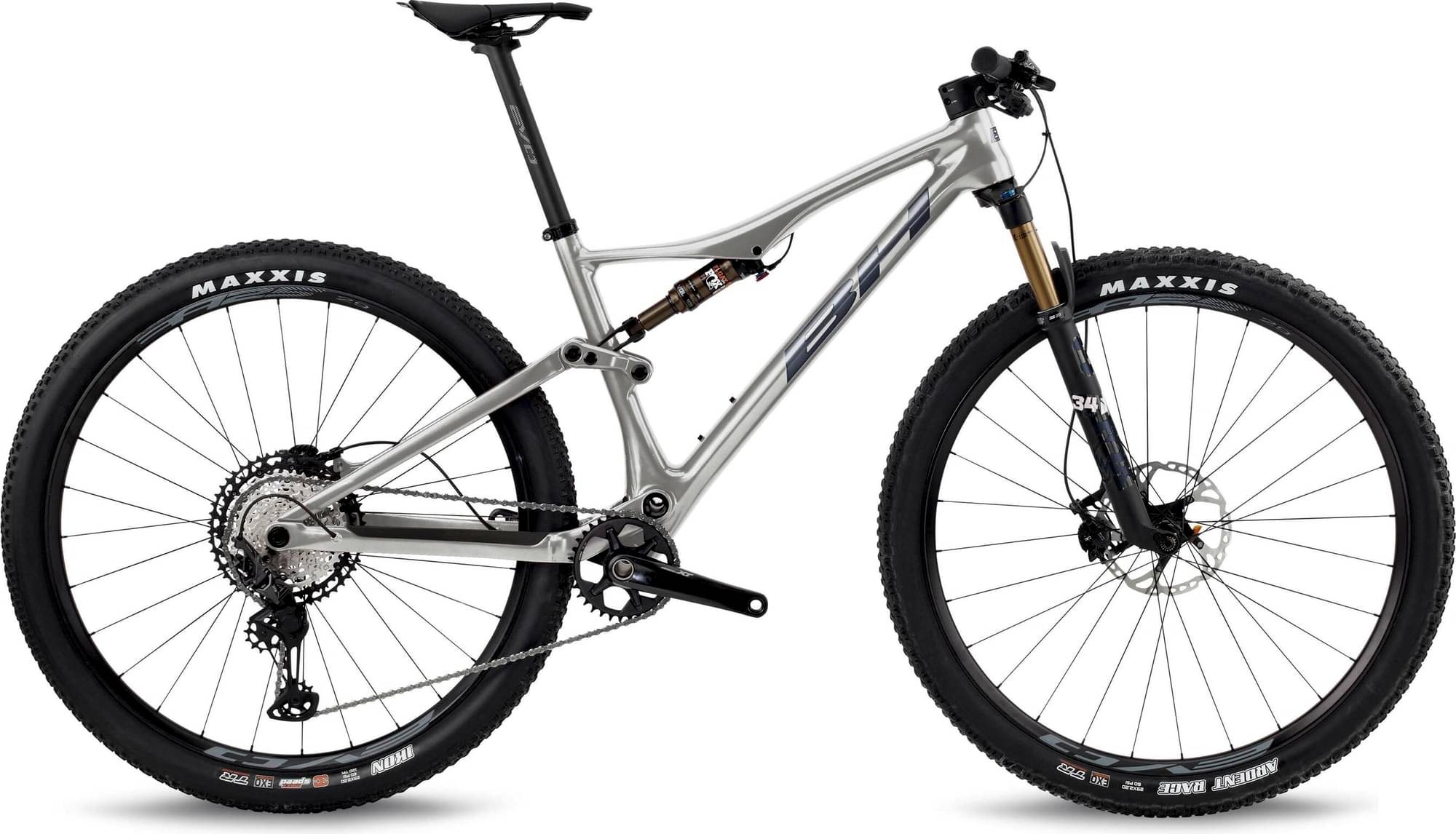

BH LYNX RACE EVO CARBON 8.5 2023
2023 Mountain
Estimate price |
6,824$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Race EVO Carbon, EC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork
Fox 34SC Factory Push to Lock Kabolt 100mm
Rear Shock
Fox DPS Evol Factory Push to Lock, 190x40mm, DCM, DRM, CMF
Drivetrain
Rear Derailleur
Shimano XT 8100 12sp
Shift Levers
Shimano XT 8100 12sp
Cassette
Shimano XT 8100 10/51
Crank
Shimano XT 8100 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XT
Wheels
Rims
BH Evo Alloy Tubeless, 25mm, 28H
Tires
Maxxis Ardent Race(F)-IKON(R) EXO2.25
Brakes
Brakes
Front: Shimano XT 180mm, Rear: Shimano XT 180mm
Cockpit
Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH EVO Carbon Top Flat 760mm, 10mm Rise
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5
Seatpost
BH EVO Carbon 31,6mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.33 mm | 1.305 mm | 1.292 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 669 mm | 704 mm | 724 mm | 741 mm |
| Rake | 39 mm | 45 mm | 40 mm | 35 mm |
| Trail | 109 mm | 103 mm | 108 mm | 114 mm |
| Stack | 575 mm | 580 mm | 595 mm | 610 mm |
| Reach | 410 mm | 436 mm | 456 mm | 472 mm |
| Top Tube Length | 571 mm | 580 mm | 605 mm | 625 mm |
| Seat Tube Angle | 76 ° | 75.8 ° | 75.8 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1096 mm | 1131 mm | 1151 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
LYNX RACE EVO CARBON 8.5 is part of the Bh Lynx model. BH launched 77 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the BH LYNX RACE CARBON MC 3.0 2023 has a starting price of 3040$. BH LYNX RACE LT 9.9 2023 on the other hand is the most expensive at 12163$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2023 for 6202$. In conclusion, this bike price is 225.56% higher than the price of the average Crosscountry bike.
Overview of components
Fork
BH LYNX RACE EVO CARBON 8.5 2023 bike is equipped with the Fox Factory Float 34 fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the LYNX RACE EVO CARBON 8.5 bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The LYNX RACE EVO CARBON 8.5 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
LYNX RACE EVO CARBON 8.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
