Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 32
-
Groupset XTR, Shimano -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast (SC) Performance, remote lockout
Rear Shock
FOX FLOAT DPS Factory, EVOL air can, Kashima coating, remote lockout
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed
Front Derailleur
N/A
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XTR M9100, 12-speed, 10-51 tooth
Crank
Shimano MT900, 175mm length
Bottom Bracket
Shimano, 92mm PressFit
Chain
Shimano XTR, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
BH Evo wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rear Hub
BH Evo wheelset, 28 hole, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Rims
BH Evo wheelset, alloy, 25mm width, 28 hole, tubeless
Spokes
BH Evo wheelset
Tires
Front: Maxxis Ardent Race, 3C MaxxSpeed, EXO, 29" x 2.2", Rear: Maxxis Ikon, 3C MaxxSpeed, EXO, 29" x 2.2"
Brakes
Brakes
Shimano XTR, 2-piston, 180mm front rotor, 160mm rear rotor
Brake Levers
Shimano XTR
Cockpit
Stem
BH Evo, 80mm length, 31.8mm bar clamp, 6° drop
Handlebar
BH Evo Carbon Midflat, 760mm width, 31.8mm clamp diameter, 8mm rise, 5° upsweep, 7° backsweep
Grips
BH Control, lock-on
Headset
BH Evo by ACROS, integrated, stainless steel, sealed bearings
Seat
Saddle
Prologo Dimension
Seatpost
BH Evo Carbon, 420mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.41 mm | 1.38 mm | 1.36 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 674 mm | 702 mm | 727 mm | 750 mm |
| Rake | 56 mm | 56 mm | 56 mm | 55 mm |
| Trail | 87 mm | 87 mm | 87 mm | 88 mm |
| Stack | 578 mm | 587 mm | 601 mm | 615 mm |
| Reach | 391 mm | 416 mm | 435 mm | 453 mm |
| Top Tube Length | 564 mm | 592 mm | 615 mm | 637 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 410 mm | 440 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1089 mm | 1117 mm | 1142 mm | 1165 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

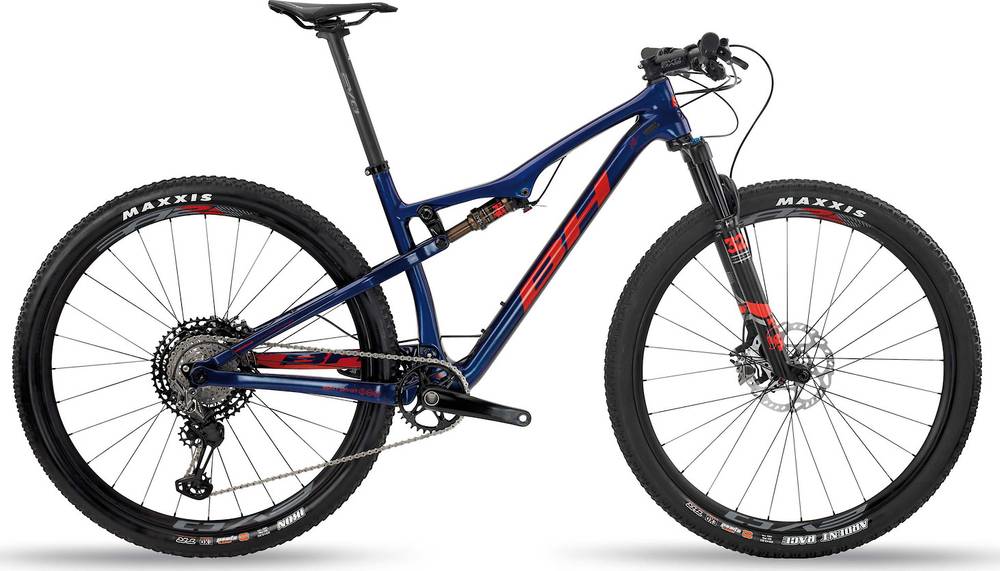

Lynx Race Evo Carbon 9.0 completes the Bh Lynx model. BH released 77 bikes variations of this model so far. Take a sneak peek at all Bh Lynx bikes models from 2020, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Lynx Race Evo Carbon 9.0 components
Fork
The Fox Performance Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The shock that’s installed on this bike is FOX FLOAT DPS Factory, with a travel distance of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Lynx Race Evo Carbon 9.0 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH Lynx Race Evo Carbon 9.0 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
