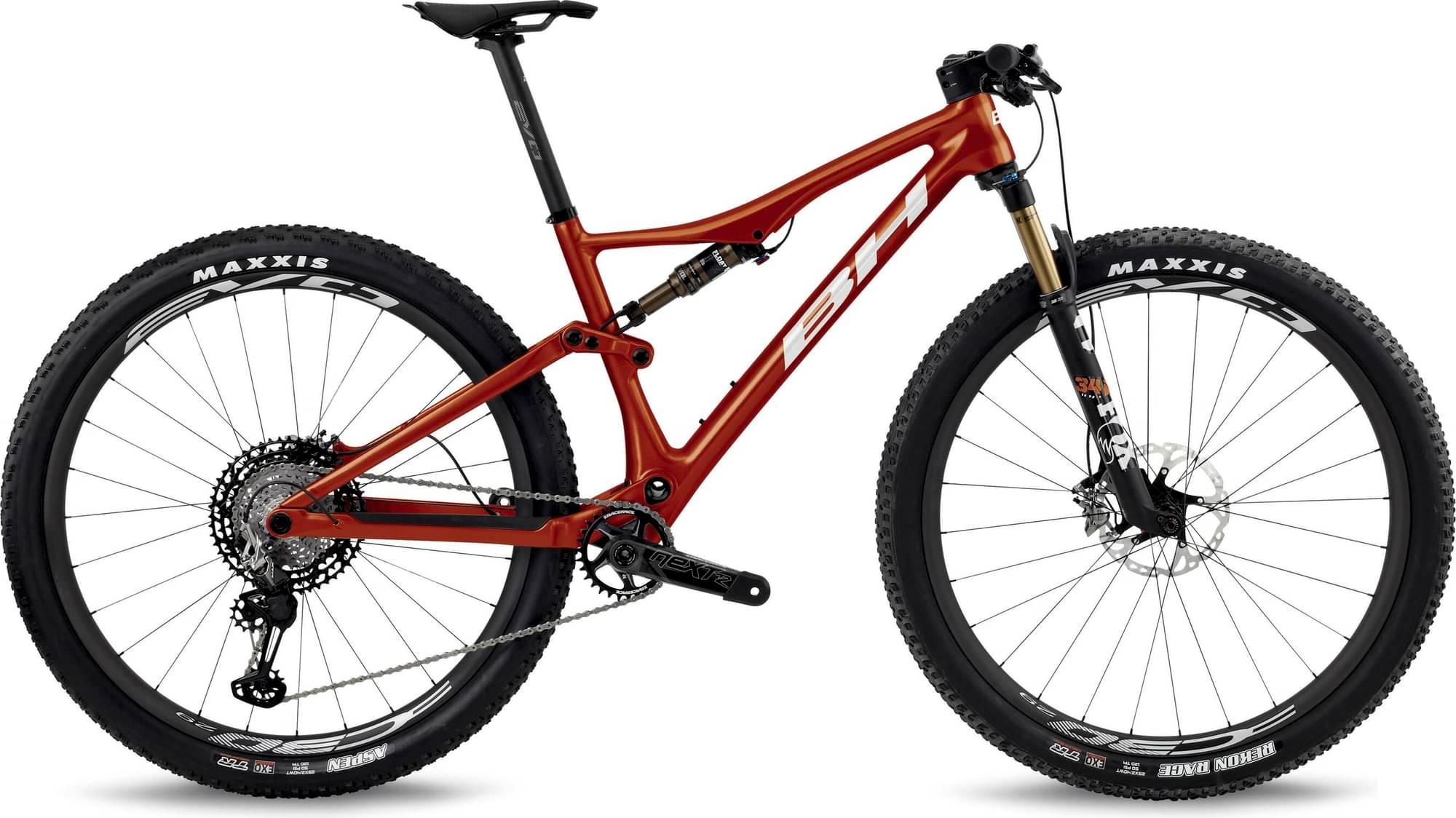

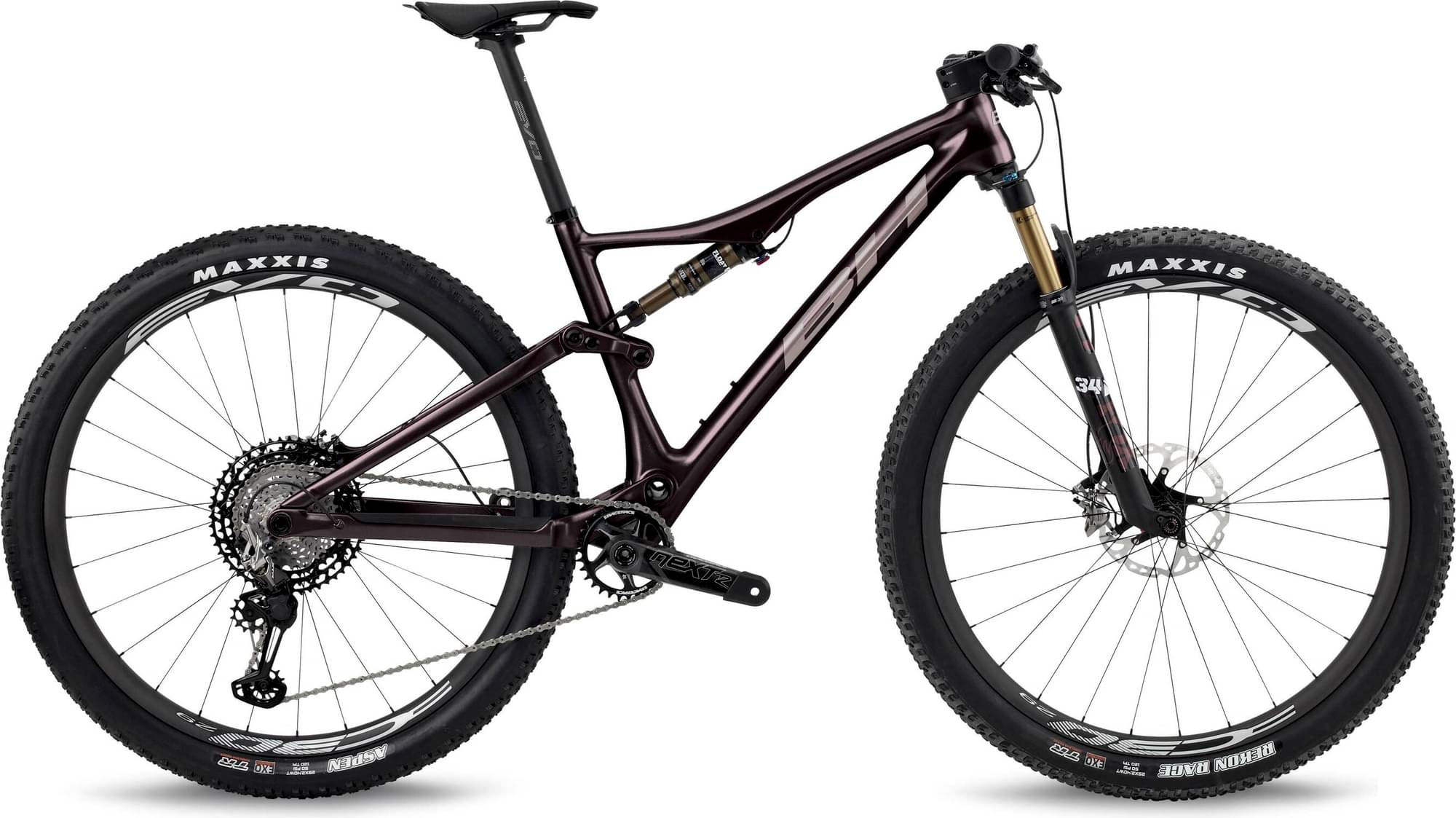

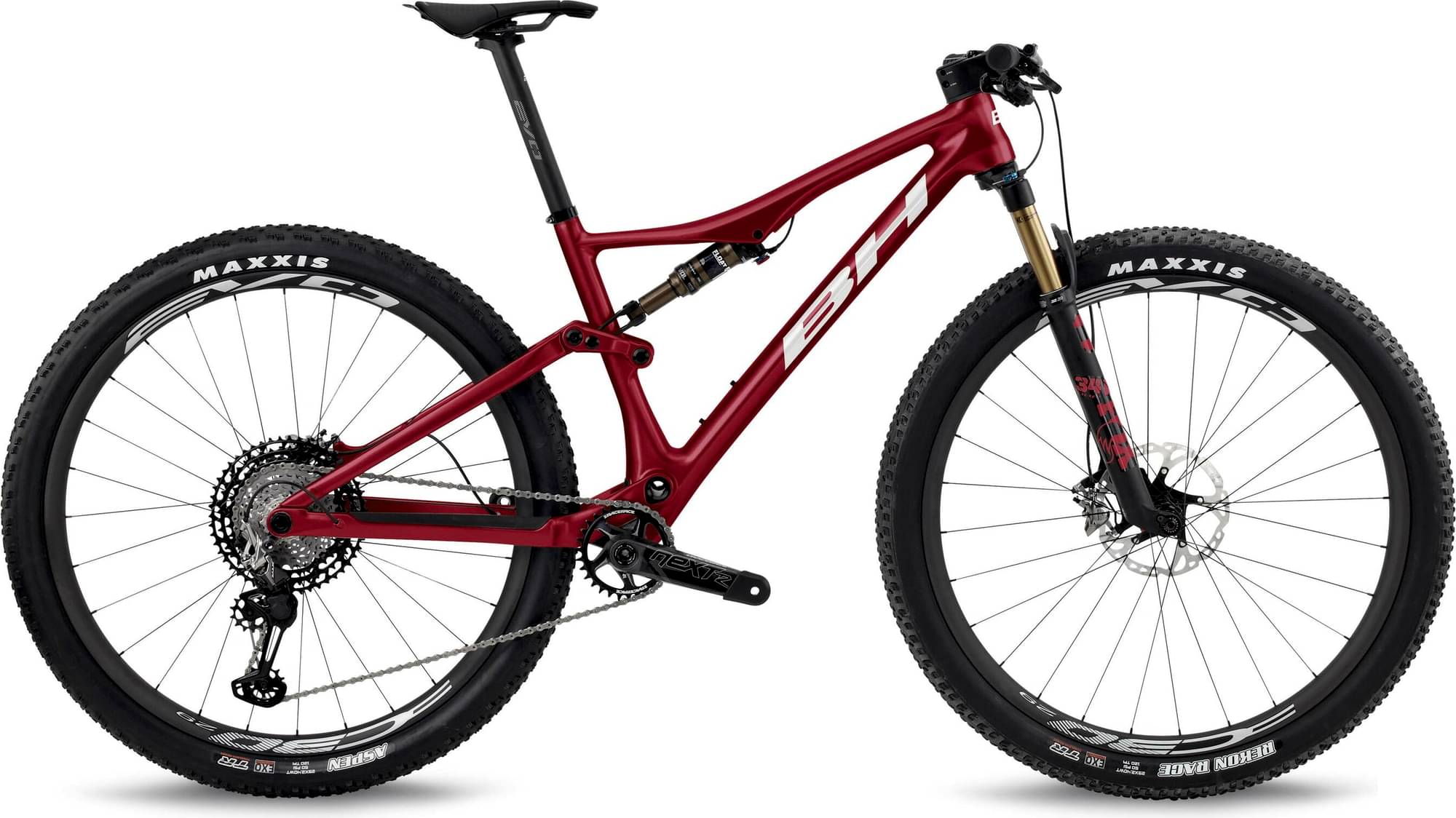

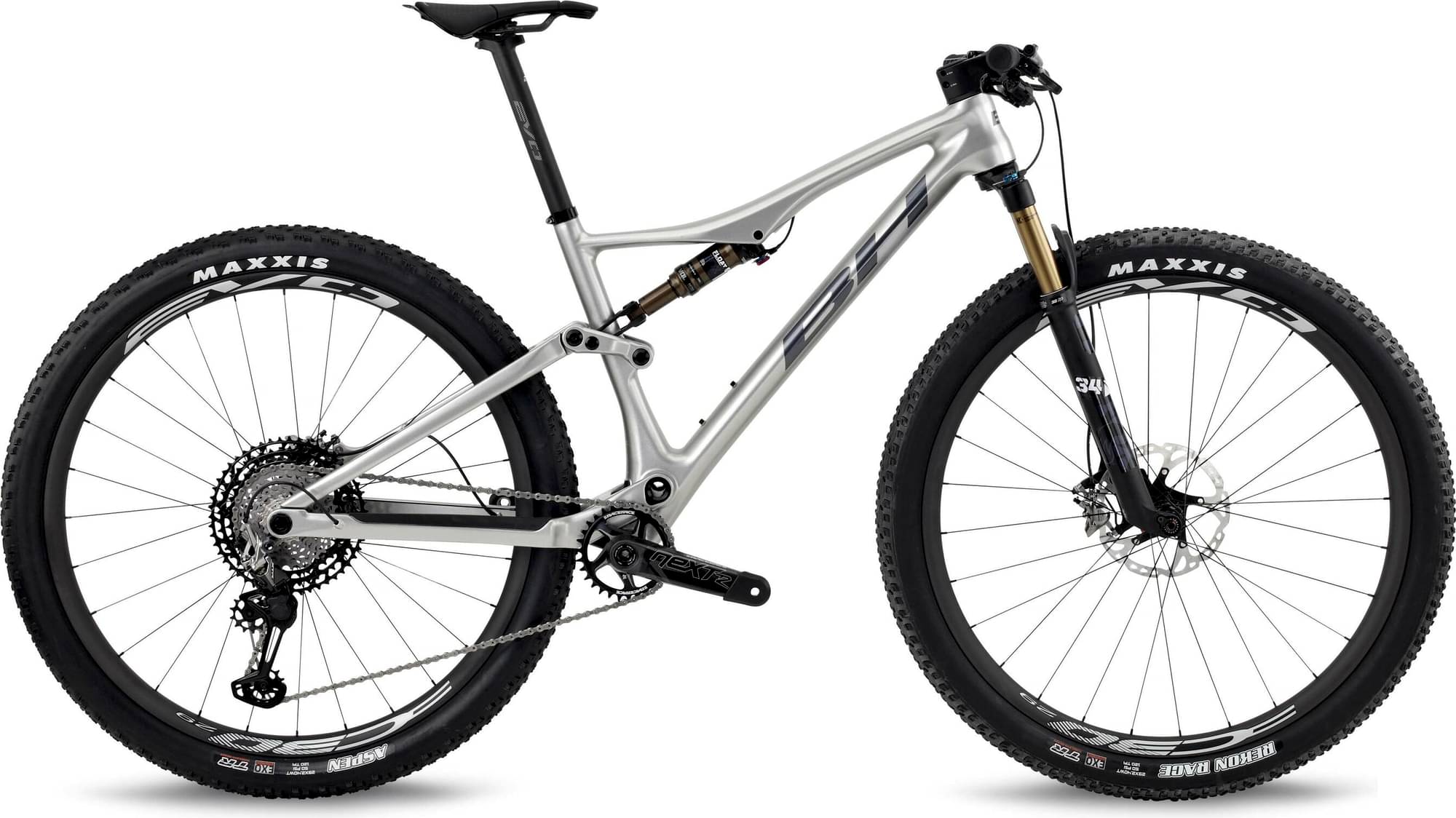

BH LYNX RACE EVO CARBON 9.5 2023
2023 Mountain
Estimate price |
10,169$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 34
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lynx Race EVO Carbon, EC Layup, Acros ICR, PF92, 148x12, UDH
Suspension Fork
Fox 34SC Factory Push to Lock Kabolt 100mm
Rear Shock
Fox DPS Evol Factory Push to Lock, 190x40mm, DCM, DRM, CMF
Drivetrain
Rear Derailleur
Shimano XTR 9100 12sp
Shift Levers
Shimano XTR 9100 12sp
Cassette
Shimano XTR 9100 10/51
Crank
Shimano XTR 34, 175mm
Bottom Bracket
Shimano
Chain
Shimano XTR
Wheels
Rims
BH Evo Carbon Tubeless, 30mm, 28H
Tires
Maxxis Rekon Race EXO MAXX SPEED 2.40
Brakes
Brakes
Front: Shimano XTR 180mm, Rear: Shimano XTR 180mm
Cockpit
Stem
BH FIT 60mm, 31,8mm, -6º
Handlebar
BH EVO Carbon Top Flat 760mm, 10mm Rise
Grips
BH Control Grip
Headset
Acros ICR FIT 36/45º, Block Lock 160º
Seat
Saddle
Prologo Scratch M5 Nack
Seatpost
BH EVO Carbon 31,6mm 420mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.402 mm | 1.33 mm | 1.305 mm | 1.292 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 669 mm | 704 mm | 724 mm | 741 mm |
| Rake | 39 mm | 45 mm | 40 mm | 35 mm |
| Trail | 109 mm | 103 mm | 108 mm | 114 mm |
| Stack | 575 mm | 580 mm | 595 mm | 610 mm |
| Reach | 410 mm | 436 mm | 456 mm | 472 mm |
| Top Tube Length | 571 mm | 580 mm | 605 mm | 625 mm |
| Seat Tube Angle | 76 ° | 75.8 ° | 75.8 ° | 75 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 90 mm | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1096 mm | 1131 mm | 1151 mm | 1168 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
LYNX RACE EVO CARBON 9.5 belongs to the Bh Lynx model. BH launched 77 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
BH LYNX RACE CARBON MC 3.0 2023 is the most affordable bike of this model and has a price of 3040$. On the other hand, BH LYNX RACE LT 9.9 2023, is the most expensive and costs 12163$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When BH released this model in 2023, its price was 9243$. If we compare this with the average Crosscountry bike cost we notice that the price is 385.2% more expensive.
LYNX RACE EVO CARBON 9.5 components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The LYNX RACE EVO CARBON 9.5 2023 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. BH LYNX RACE EVO CARBON 9.5 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
LYNX RACE EVO CARBON 9.5 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
